Chapter £ • Detailed Setup
To correct for keystoning, always make sure that the projector is
at a right angle to the screen in the horizontal plane. The
pro jector is properly aligned if the top and bottom of the
projected image are equal in length and parallel to the floor.

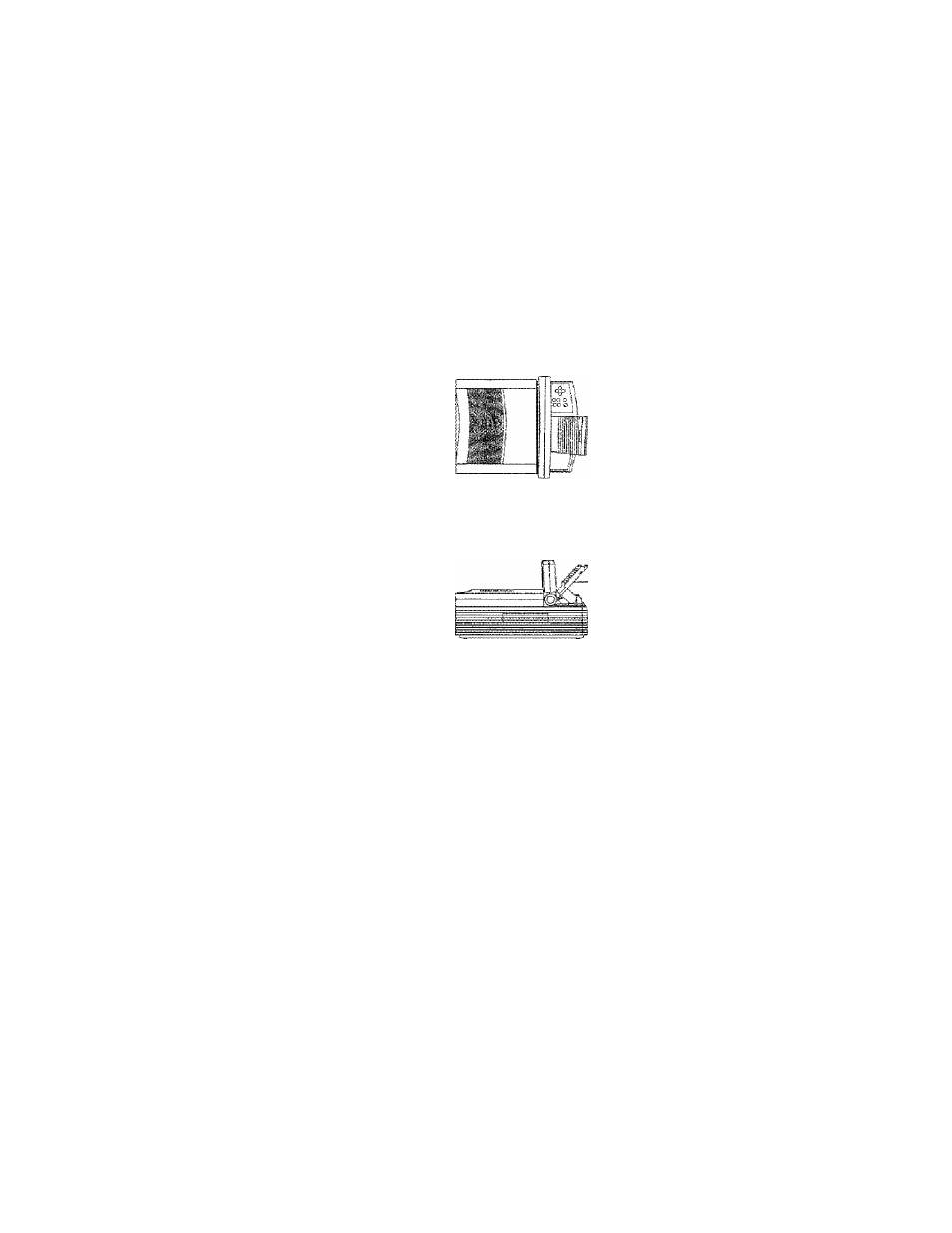

Top View
Perpend i,Gu lor to the
prolection screen
Side View
Pa-rallei to the floor
{figure SO
Positioning the Desktop Projector
In order to allow you to project images high enough for the entire
audience to view, the Desktop Projector has been designed to
minimize this effect. A 10.5° correction for keystoning is built
into the projector.
2-2D • User's Guide
