Bolens 130-527-000 - Manual (Page 9)

Steering Wheel
Cap (A)
■V.
Hex Lock
Nuts (V)
Curved Side Up
Curved Side Down
Cross Braces
(AA)
Dust Cover
(AD)

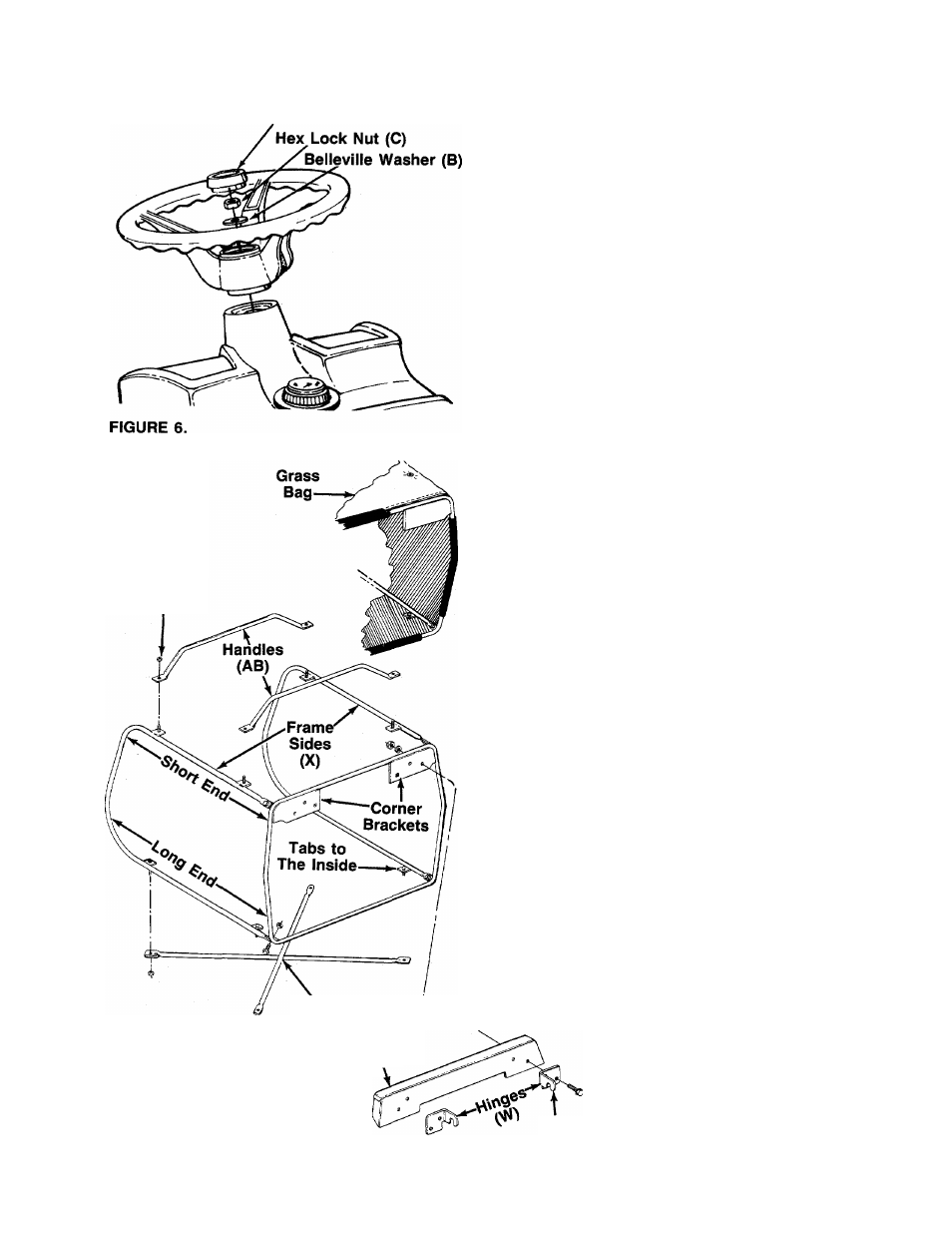

ATTACHING THE STEERING WHEEL
1. Position the front wheels of the tractor so they are
pointing straight forward.
2. Place the steering wheel over the steering shaft,
positioning steering wheel as desired.
3. Place the belleville washer (B) with the cupped side
down over the steering shaft. Secure with hex lock
------nut (C). See figure 6.
4. Place the steering wheel cap (A) over the center
of the steering wheel and seat it with your hand.
4.
5.
ASSEMBLY OF GRASS CATCHER (See figure 7)
1. Place the right and left hand frame sides (X) inside
the grass bag (Y). The long end of side frame goes
to the bottom of the bag.
2. Place the weld bolts on side frames through the
eyelets in bag.
3. Bolt the front frame assembly (corner brackets to
-----the top) to the side frames with four hex bolts (U)
and hex lock nuts (V).
Snap the plastic edge of grass bag over frame.
Place the grass catcher top side up. Place two
handles (AB) in position and secure with four hex
lock nuts (V).
Turn the grass catcher over, bottom side up. Place
the cross braces (AA) in position as shown. The
first brace will have the curved side down. The top
brace will be positioned with the curved side up.
Place dust cover (AD) in position on top front of
catcher. Place right and left hand hinges (W) in
position and secure with hex sems bolts (R), lock
washers (I) and hex nuts (J).
NOTE: Hinges will only match the hole pattern one way
(hook down). Only make bolts finger tight at this time.
7.
FIGURE 7.
Hook Side
Down
