Page 14

Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

Adjusting

Nut

Fen ule

2. Adjust the ferrule in or out until the wheels toe-in

approximately 1/8".

3. Replace the ferrule into the wheel bracket and

replace the cotter pin.

CARBURETOR ADJUSTMENT

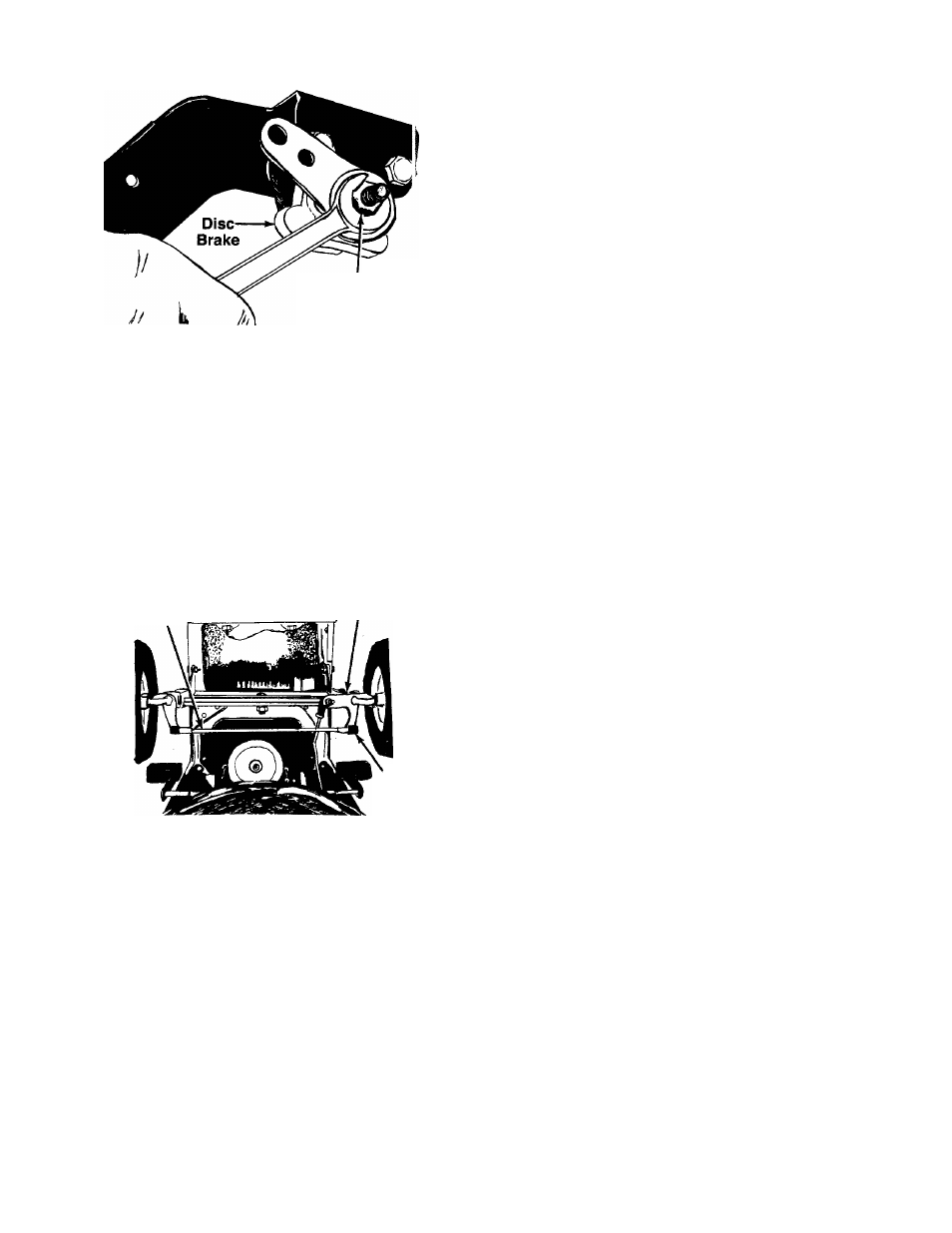

FIGURE 17.

WHEEL ALIGNMENT

The caster (forward slant of the king pin) anc the

camber (tilt of the wheels out at the top) require no ad

justment. Automotive steering principles have been

used to determine the caster and camber or the
mower. The front wheels should toe-in 1/8 inch. See
figure 18. To adjust, follow these steps:

1. Remove the cotter pin holding the ferrule to the

axle bracket. See figure 18.

Wheel

Tie Rod .

. Bracket

WARNING: If any adjustments are made
to the engine while the engine is running
(e.g. carburetor), disengage all clutches
and blades. Keep clear of all moving
parts. Be careful of heated surfaces and
muffler.

Minor carburetor adjustment may be required to com

pensate for differences in fuel, temperature, altitude
and load.

To adjust the carburetor, refer to the separate engine

manual packed with your unit.

FIGURE 18.
