Model 527
PARTS LIST FOR PEERLESS MODEL 714A TRANSMISSION
-F.
1^0.
PART
NO.
DESCRIPTION

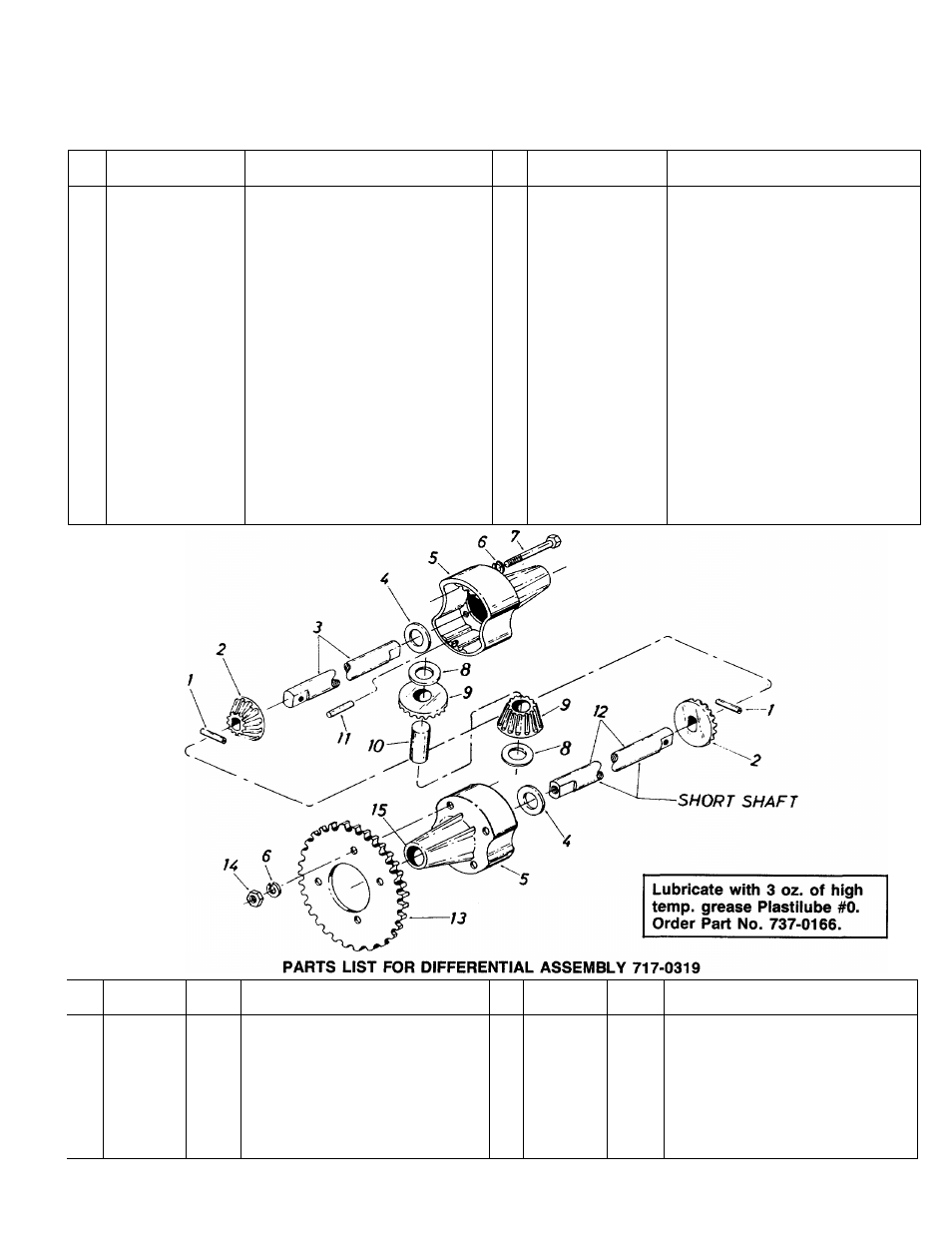

REF.
NO.
PART
NO.
DESCRIPTION
1 PE-770061 Case, Transmission 20 PE-786049 Sprocket (8 Teeth)
2 PE-772070 Cover, Transmission 27 PE-780105 Bushing, Flanged
3 PE-776166 Shaft, Output 28 PE-786062 Chain, Roller (No. 41 Chain,
4 PE-778121 Gear, Spur (20 Teeth) 22 Links)
5 PE-778122 Gear, Spur (22 Teeth) 29 PE-780072 Race, Thrust
6 PE-778123 Gear, Spur (25 Teeth) 30 PE-780106 Bearing, Needle
7 PE-778124 Gear, Spur (30 Teeth) 31 PE-792072 Ring, Retaining
8 PE-778125 Gear, Spur (35 Teeth) 32 PE-792035 Ring, Retaining
9 PE-784266 Collar, Shift 33 PE-780109 Washer
10 PE-786083 Sprocket (18 Teeth) 34 PE-788040 Ring, Retaining
11 PE-786082 Sprocket (9 Teeth) 35 PE-784271 Rod and Fork Ass’y., Shift
12 PE-776134 Shaft, Counter 36 PE-792073 Screw, Hex Hd. Taptite, V4-20
13 PE-778109 Gear, Bevel (42 Tooth & 15 X 1V4
Tooth Spur Gear) 37 PE-792089 Key
14 PE-778126 Gear, Spur (20 Teeth) 40 PE-792077 Ball, Steel, 5/16"
15 PE-778127 Gear, Spur (25 Teeth) 41 PE-792078 Screw, Set, 3/8-16 x 3/8
16 PE-778128 Gear, Spur (28 Teeth) 42 PE-792079 Spring
17 PE-778129 Gear, Spur (30 Teeth) 43 PE-780108 Washer, Thrust
18 PE-776140 Shaft, Input 44 PE-792074 Plug
19 PE-778113 Bevel Pinion, Input
REF.
NO.
PART
NO.
Qty.
Req’d.
DESCRIPTION
REF.
NO.
PART
NO.
Qty.
Req'd.
DESCRIPTION
1 715-0247 2 Spring Pin Spiral 3/16" Dia. x 8 736-0187 2 FI-Wash. .64" I.D. x .24"
1.0" Lg. 9 748-0158 2 Gear—Round Hole
2 748-0156 2 Gear—Double “D” Hole 10 711-0276 1 Drive Pin
738-0302 1 Shaft (Long)—15.11" Lg. 11 715-0145 2 Dowel Pin 3/16" Dia. x .62"
736-0188 2 FI-Wash. .76" I.D. x 1.49" 12 738-0303 1 Shaft (Short) 7.58" Lg.
\J
719-0150 2 Housing Half 13 713-0162 1 Sprocket—48 Teeth
6 736-0119 8 L-Wash. 5/16" I.D.* 14 712-0237 4 Hex Cent. L-Nut 5/16-24 Thd.
7 710-0363 4 Hex Bolt 5/16-24 x 4" Lg. 15 748-0169 2 Flange Bearing
29
