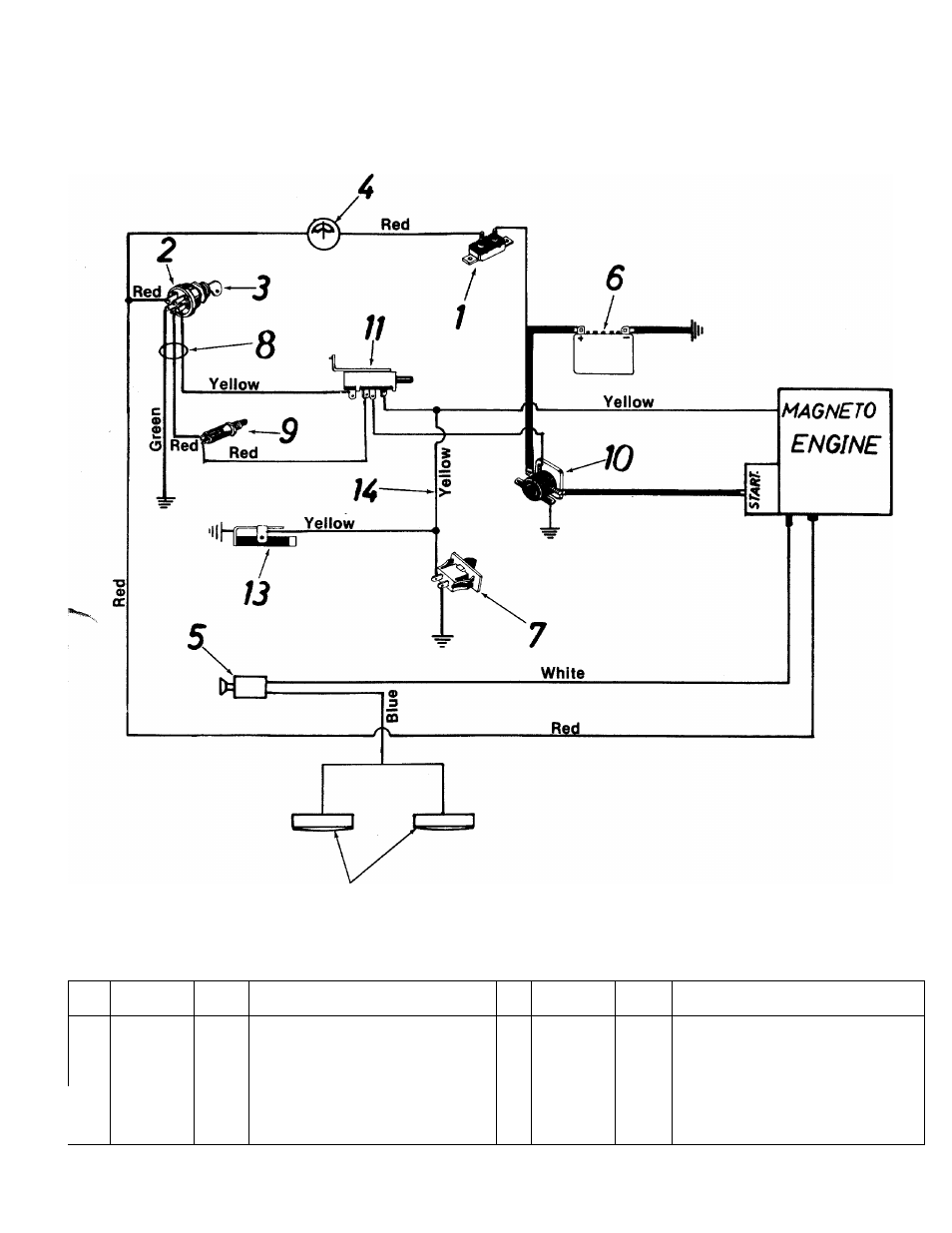

PARTS LIST FOR ELECTRICAL SYSTEM
LAWN TRACTOR MODEL 527
REF.
NO.
PART
NO.
CODE
DESCRIPTION
REF.
NO.
PART
NO.
CODE
DESCRIPTION
1
725-0459
Circuit Breaker
8 725-0849A
N
Wiring Harness
2
725-0267
Ignition Switch
9 725-0577
Safety Switch (Drive)
3
725-1341B
Ignition Key
10 725-0771
Solenoid
725-0119
Ammeter
11 725-0465A
N
Safety Switch (Blade)
725-0646
Headlight Switch
12 725-0417
Headlight
O
725-0514A
Battery
13 725-0759
Spring Switch (Reverse)
1 7 725-0713
Safety Switch (Grass Catcher)
14 725-0712
Wire Lead
