MAINTENANCE (Cont.)

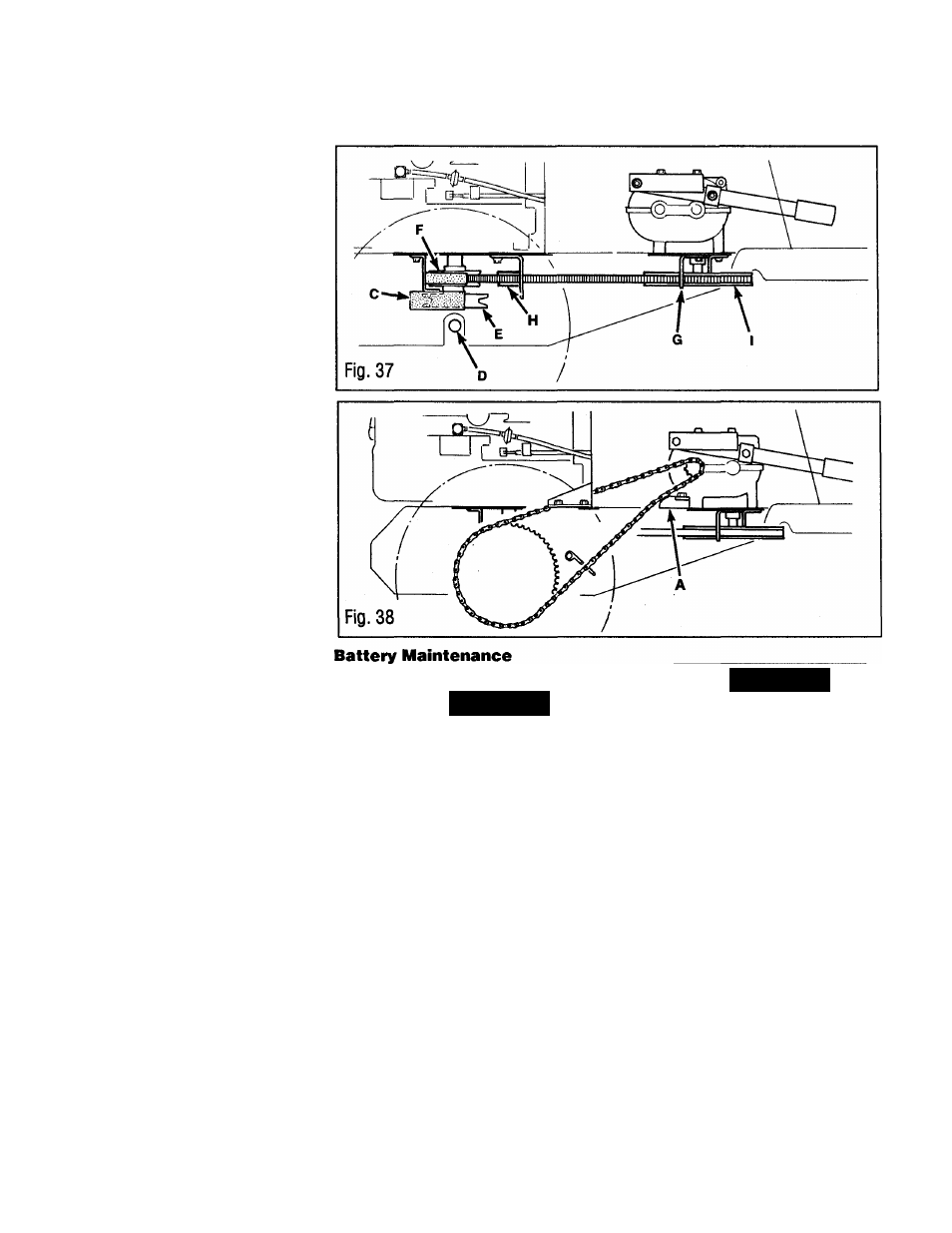

4. Remove belt guide (C, Fig. 37) behind
engine pulley.
5. To install new belt:
A. Place belt into sheave (F). It may be
necessary to rotate differential to
assemble.
B. Loosen transmission puiley beit
guides (G).
C. Loosen idier puiiey (H).
D. Place forward portion of belt onto
transmission puiiey (I).
E. Piace belt between idler pulley (H)
and belt guide.
F. Re-tighten idler puiiey.
G. Re-tighten beit guides (G) 1/8" (.32
cm) away from sheave (F),
6. Re-instail and re-tighten belt guide (C).
Position guide as far forward as possibie.
After assembly, check clearance between
guide (C) and bolt heads on differential. A
1/8" minimum ciearance shouid exist.
Transmission Drive Beit Guide
Adjustments
1. Push drive pedal all the way forward.
2. Loosen and adjust belt guide (C) so
there is a 1/8” (3.1 mm) to 3/16" (4.7 mm)
gap between upper guide and belt. Re-
tighten.
3. Repeat Step 2 for forward belt guide
(G).
Drive Chain Adjustment
if drive chain appears to have excessive
slack, adjust to prevent it from coming off
sprockets.
To adjust:
1. Lift seat and seat support up.
2. Loosen chain tightener (A, Fig. 38).
3. Slide the chain tightener until excess
slack is removed.
4. Re-tighten the chain tightener.
A I
DANGER!
A \
DANGER!
BAHERY ELECTROLYTE CAN CAUSE
SEVERE BURNS AND BLINDNESS.
WEAR EYE PROTECTION AND PROTEC­
TIVE CLOTHING WHEN WORKING
NEAR A BAHERY.
FAILURE TO FOLLOW THIS
INSTRUCTION COULD RESULT IN
PERSONAL INJURY OR PROPERTY
DAMAGE.
IN THE EVENT OF AN ACCIDENT,
FLUSH WITH WATER AND CALL A
PHYSICIAN IMMEDIATELY.
Keep battery terminals clean and free of
corrosion. After cieaning terminals, apply
petroleum jelly on them to help prevent
corrosion.
BAHERIES CAN GIVE,OFF HIGHLY
FLAMMABLE HYDROGEN GAS THAT IS
EASILY IGNITED.
• NEVER ALLOW A SPARK OR OPEN
FLAME NEAR THE BAHERY.
• DO NOT LAY TOOLS ACROSS THE
BAHERY TERMINALS.
• DO NOT TOUCH A TOOL FROM THE
POSITIVE (+) BAHERY TERMINAL TO
THE FRAME OF THE RIDING MOWER.
FAILURE TO FOLLOW THIS
INSTRUCTION COULD RESULT IN
PERSONAL INJURY OR PROPERTY
DAMAGE.
Regularly check electrolyte level in battery.
Keep electrolyte within level indicated on
battery case. Add
only distilled water to
bring electrolyte to proper level.
