Page 63

Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

Lubricate parts imdor bottom cover.

CAUTION: Remember to disconnect power-fine plug from electrical

supply before removing bottom cover or carrying case base.

If your machine is a portable, remove the carrying case base (as instructed

below).

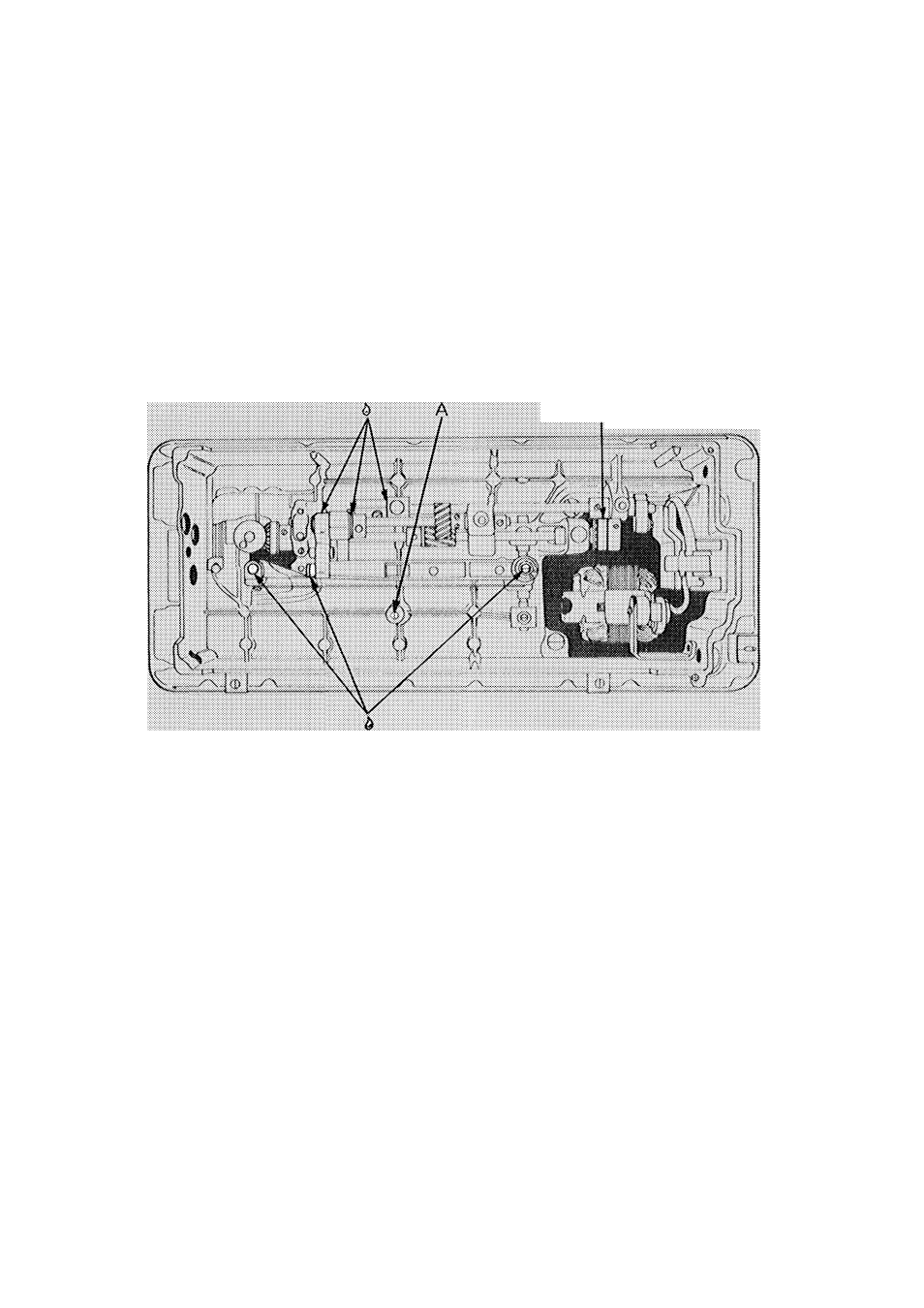

# Tilt machine back and remove retaining nut from thieaded stud A, being

careful not to lose felt washer, and remove cover from imdBrsldo of machine,

# Oil places indicated Avoid getting oil on any part of motor or hook

driving belt,

# Replace bottom cover, felt washer, and retaining nut. Tighten retaining

nut with a screwdriver.

Hook Driving Boll

MOTOR REQUIRES NO lUBRICATfON

REMOVING AND REPLACING

CARRYING CASE BASE

# Turn machine so that back is

toward you. Tilt head back and
loosen and remove retaining nut in

centre,

# Set machine upright and lift up and

out of base,

# Replace machine in base, after

bottom cover has been attached,
making sure machine bed is fully
recessed.

# Turn machine so that back is

toward you; tilt back and replace

retaining nut. Tighten retaining nut
with a screvwiriver.

SPECIAL CARE

If the machine is to bo stored or before

extended periods of Inactivity, clean
and apply SINGER oil to all moving
machine connections to protect metal
parts.
