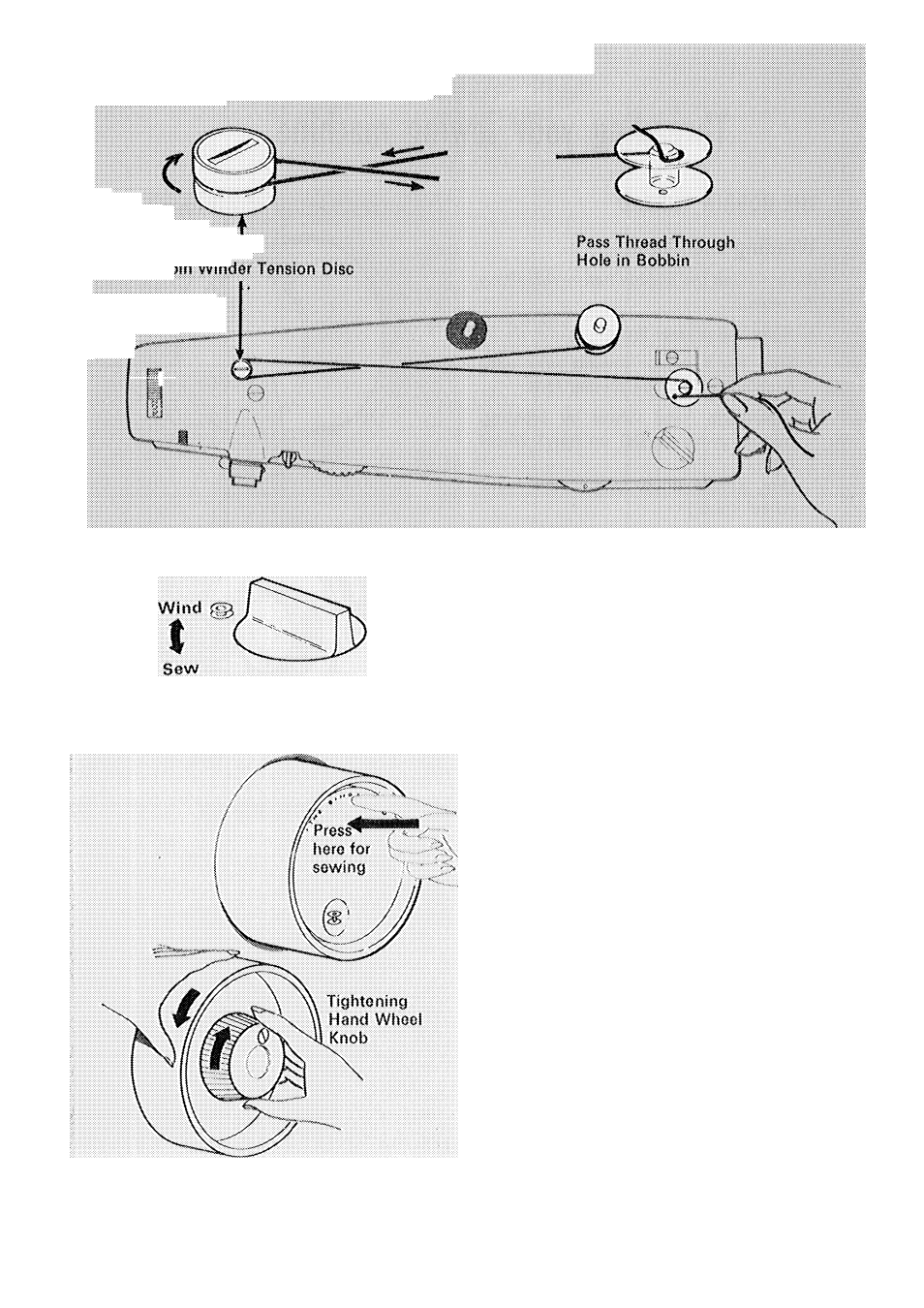

BOBBIN WINDER SWITCH

ENGAGING HAND WHEEL

7. Place spool of thread on spool pin

over the spoof pin felt and lead
thread around bobbin winder tension

disc.

8. Pass thread, from the inside, through

hole in bobbin and place bobbin on

spindle.

9. Turn bobbin winderswitch clockwise

to "wind“ position, hold thread end

as shown and start the machine<

10, Cut off thread end after a few coils

have been wound on the bobbin,

11, When required amount of thread has

been wound (winding will stop when
bobbin is full), turn bobbin winder
swatch counterclockwase to “sew/“
position and cut thread.

12, Press hand wheel disc for sewing or

tighten the hand w/heel knob.
