CHANGING THE LIGHT BULB
CAUTION: Before changing light bulb make
sure you have disconnected power-line plug
from electrical outlet.
When changing to a new bulb be sure to use a
12 volt, 12 watt bulb only.

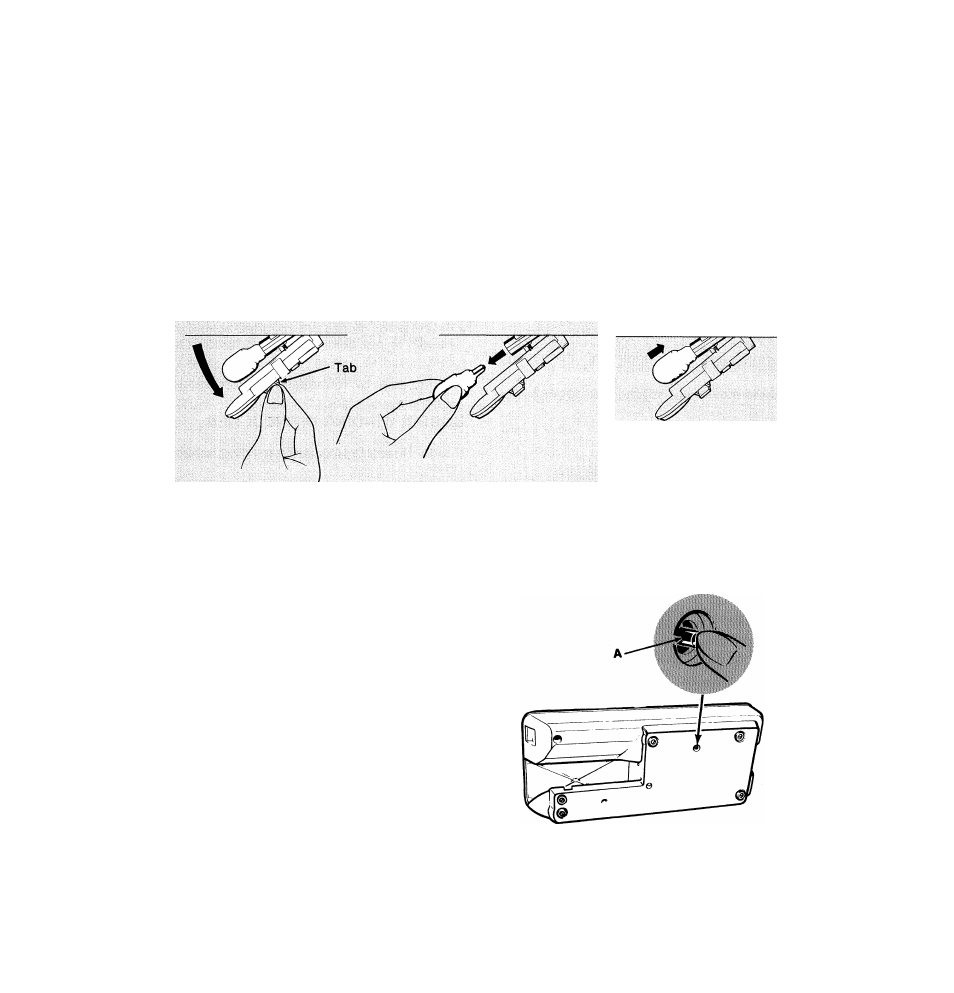

Removing Bulb. With thumb and index finger
of right hand, push in and down on tab of light
lens and lower the light bracket. Do not at
tempt to unscrew the bulb. Pull bulb directly
out of the socket to the left.
Replacing Bulb. While holding the top of bulb
gently, press new bulb directly into socket. To
replace lens, push in and up on tab of light
lens with thumb and index finger of right hand.
circuit breaker
The electronic system of your machine is pro
tected by a circuit breaker. If the machine
does not operate (stitch selection panel and
sewing light do not light up) after making
electrical connections and turning on switch,
push the red circuit breaker button A to reac
tivate the machine. If your machine is a porta
ble model, carefully lift or tilt it to gain access
to the button. Push button in. If your machine
is secured to a cabinet, reach under front of
cabinet and locate the special hole which
gives you access to the button. Push button.
Certain cabinet models may not have an ac
cess hole. In such instances, release the
machine from the cabinet, tilt machine, and
push button. Re-secure machine to cabinet.
Re-select desired pattern.
Note: If button continues to disengage, con
tact your Singer representative or Approved
Dealer.
Circuit Breaker
103
