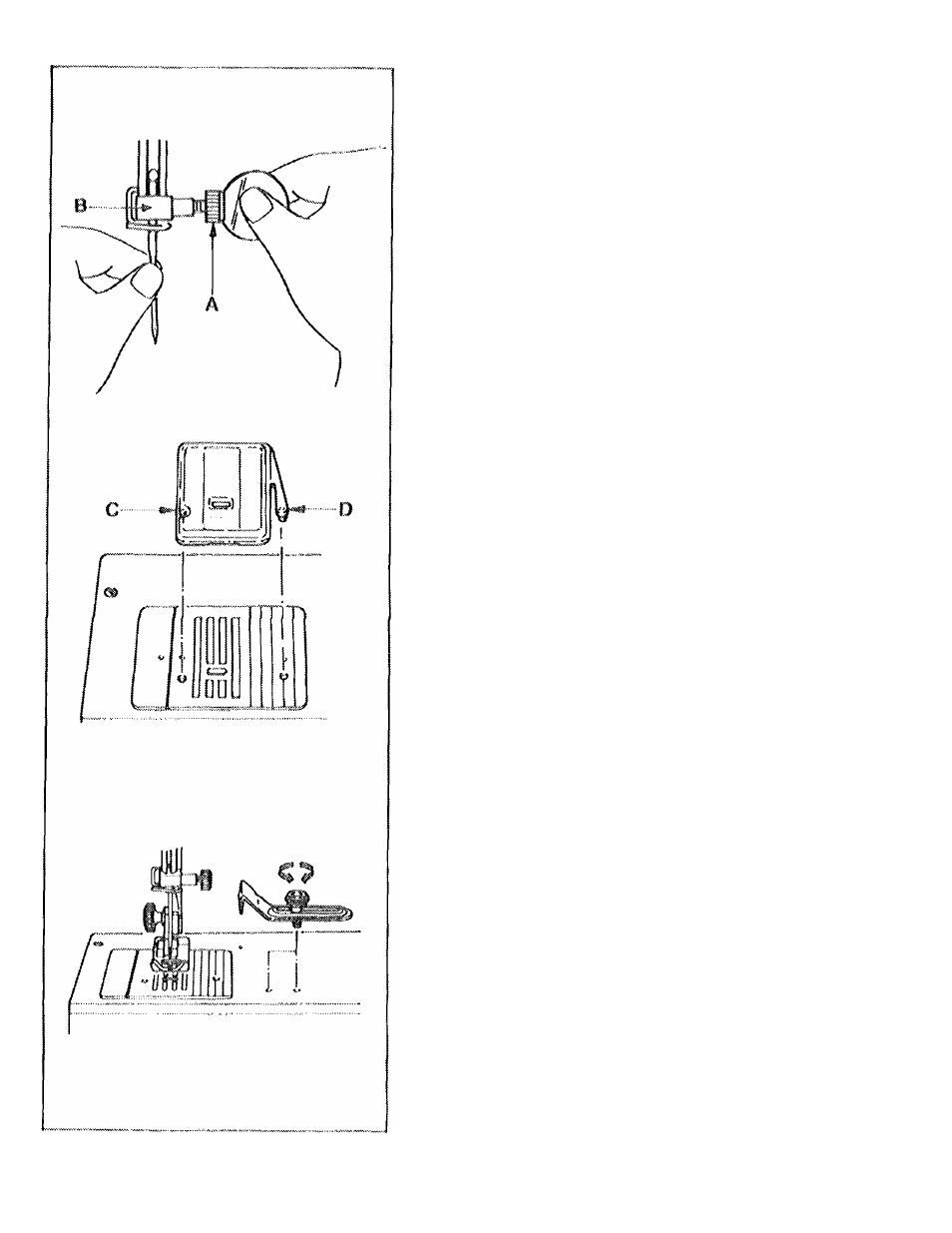

Changing the Needle
® Raise needle to its highest point
by turning the hand wheel toward
you. Loosen needle clamp screw
A and remove the needle.
« Insert new needle up into clamp
B as far as it will go, with the flat
side of the needle to the back.
® Tighten needle clamp screw.
Attaching Snap-in Feed Cover
® Raise needle to highest position
by turning fiand wheel toward
you.
® Raise presser foot.
« Slide snap-in feed cover away
from you over needle plate until
points C and D are positioned
directly over f^otes in needle plate
as illustrated. Snap in point C.
Then piish point D toward point
C until it snaps into place.
® fo remove, lift up edges of feed
cover.
Attaching the Seam Guide
Place screw in either hole to the
right of the needle plate; line up
straight edge of guide with the
needle plate guideline for desired
seam width, and tig I den screw.
6
