10. Caring for Your Machine
Cleaning and Oiling Your
Machine
CAUTION:
Before
cleaning
your
machine,
disconnect
power
tine
plug from your socket outlet.
Periodically, depending on usage,
clean and oil your machine as
follows, using one drop of oil on
areas indicated.

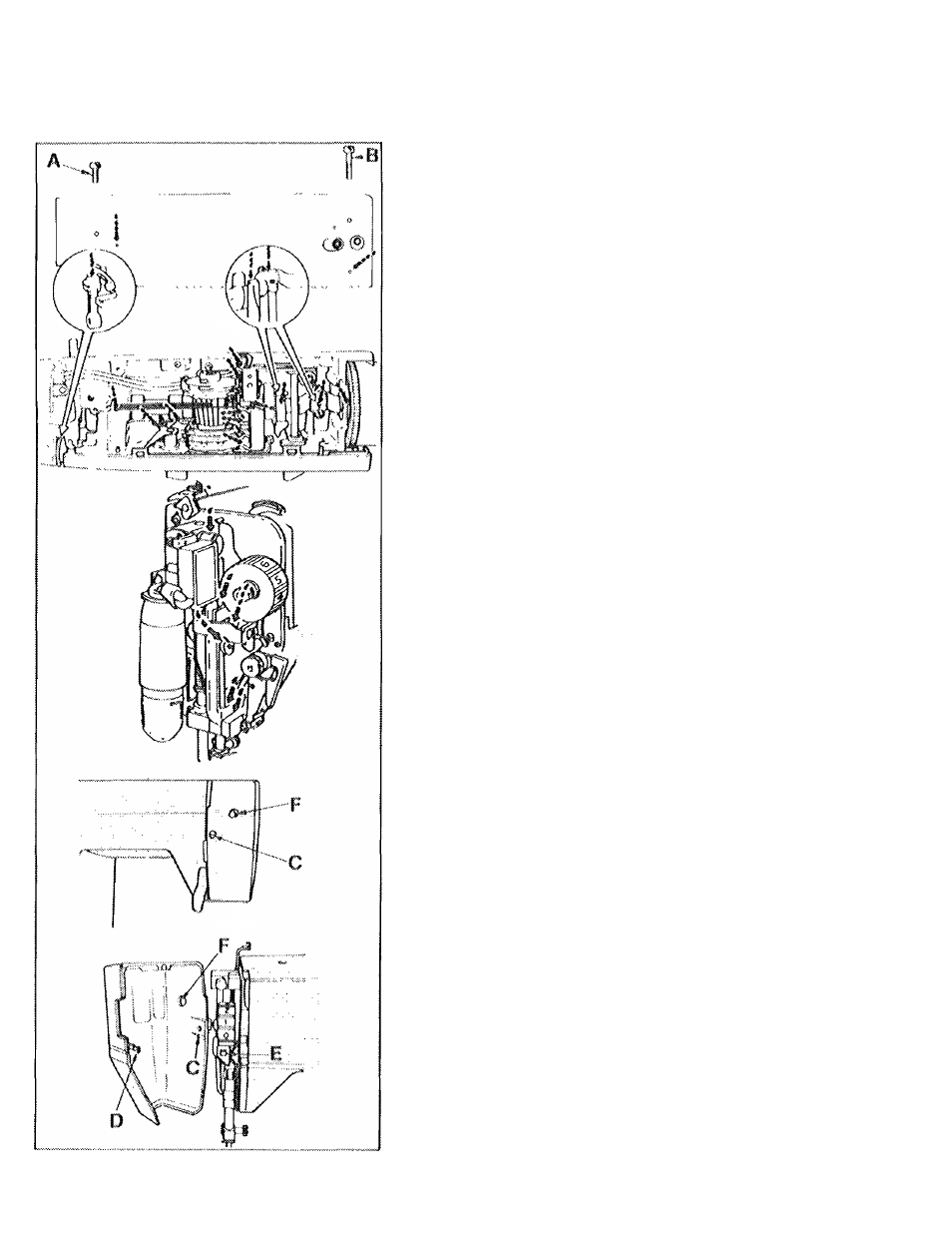

® To Interior Areas
To clean and oil top of machine,
remove top pover. Using a largo
screwdriver, remove screws A and
B. Periodically, apply a drop of oil
only to areas indicated, after
cleaning.
To replace top cover, align it over
screw holes A and B. Using a
large screwdriver, replace screws
A and B.
® Face Plate Area
To clean and oil the front interior
of machine, loosen and remove
the screw C located on rear of
face plate, then guide face plate
out of machine.
To replace face plate, align spring
D with latch E and position light
switch into hole F. Guide spring
into latch and slightly move up
face plate; replace screw and
tighten.
49
