The Bobbin
Winding the Bobbin
Preparation Steps

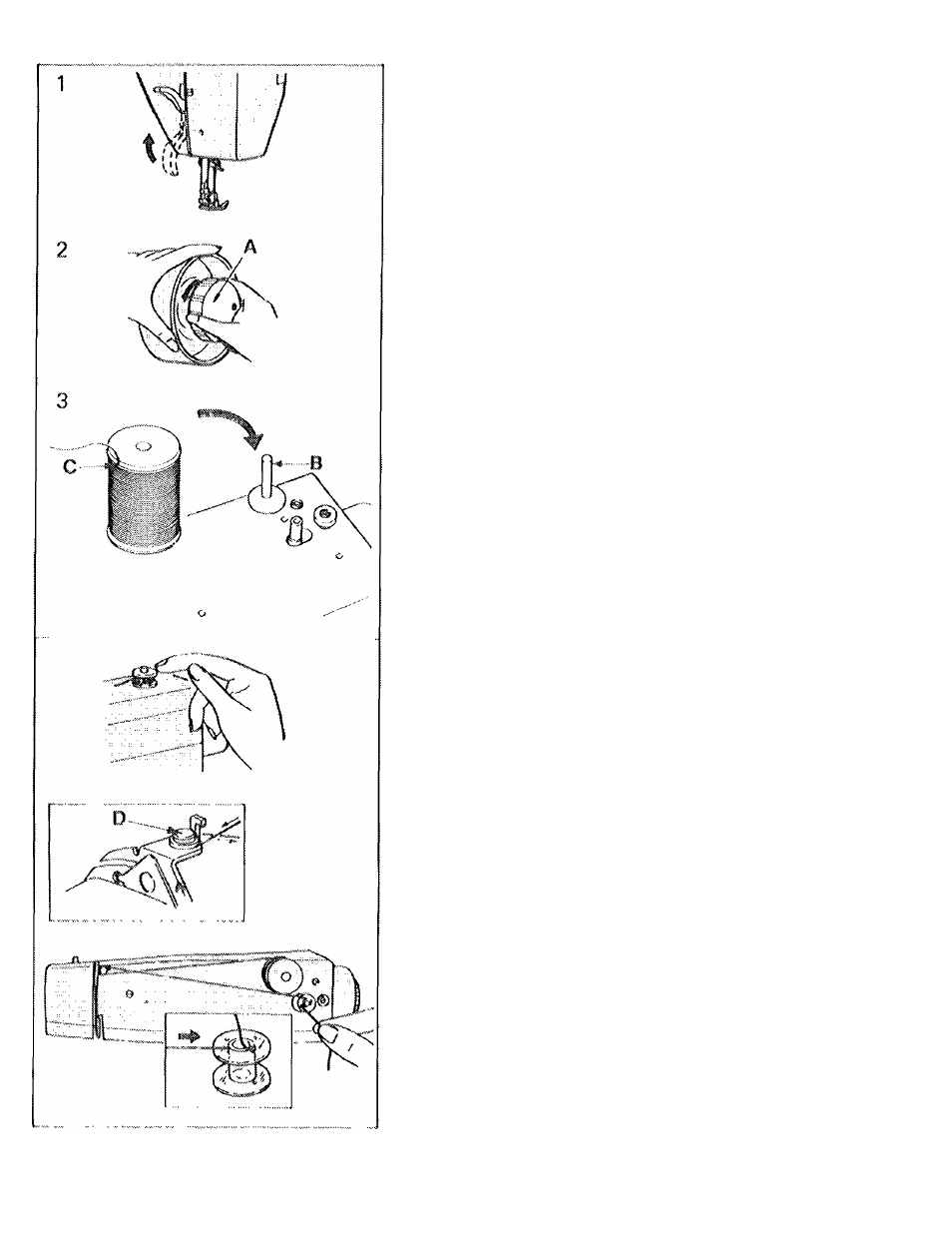

1. Raise the pressor foot and turn
hand wheel toward you until
needle is in highest position.
2. {..oosen hand wheel ktiob A by
turning it toward you witti the
right hand while holding hand
wheel with the left hand.
3. Place thread spool on spool pin B
over the felt cushion. If spool
being used has a thread retaining
slit C, it should be placed at the
top.
Winding Steps
® Place spool of thread on spool
pin as instructed above.
® Lead thread around disc of rear
thread guide D, as illustrated, and
through small hole in l>obhin from
inside out.
® Snap bobbin onto spindle and
push bobbin to right to engage
bobbin Vv'inder.
0
Hold thread end, as shown, and
start the machine. Cut off thread
end after a few coils fiave been
wound.
0
When required amount of thread
has been wound (winding will
stop when bobbin is full), stop tfie
machine
and
cut
cotmecting
thread.
0
Push bobbin to loft and remove
bobbin from spindle.
0
Hold hand wheel and tighten
hand wheel knob.
