Principal Parts
1. spool Pin
2. Take-up Lever
3. Rear Thread Guide
4. Tension Dial
5. Face Plate
6. Light Switch
7. Presser Foot Lifter
8. Thread Cutter
9. General Purpose Foot
10< Thread Guard
11< Sewing Light
12. Thread Guide
13. Fabric Feed
14. Needle Plate
15. Bobbin Case Holder
16. Bobbin Case
17. Needle Clamp
18. Extension Bed (4022)
18. Slide Plate (4012)
19. Electrical Connections and
Speed Controller

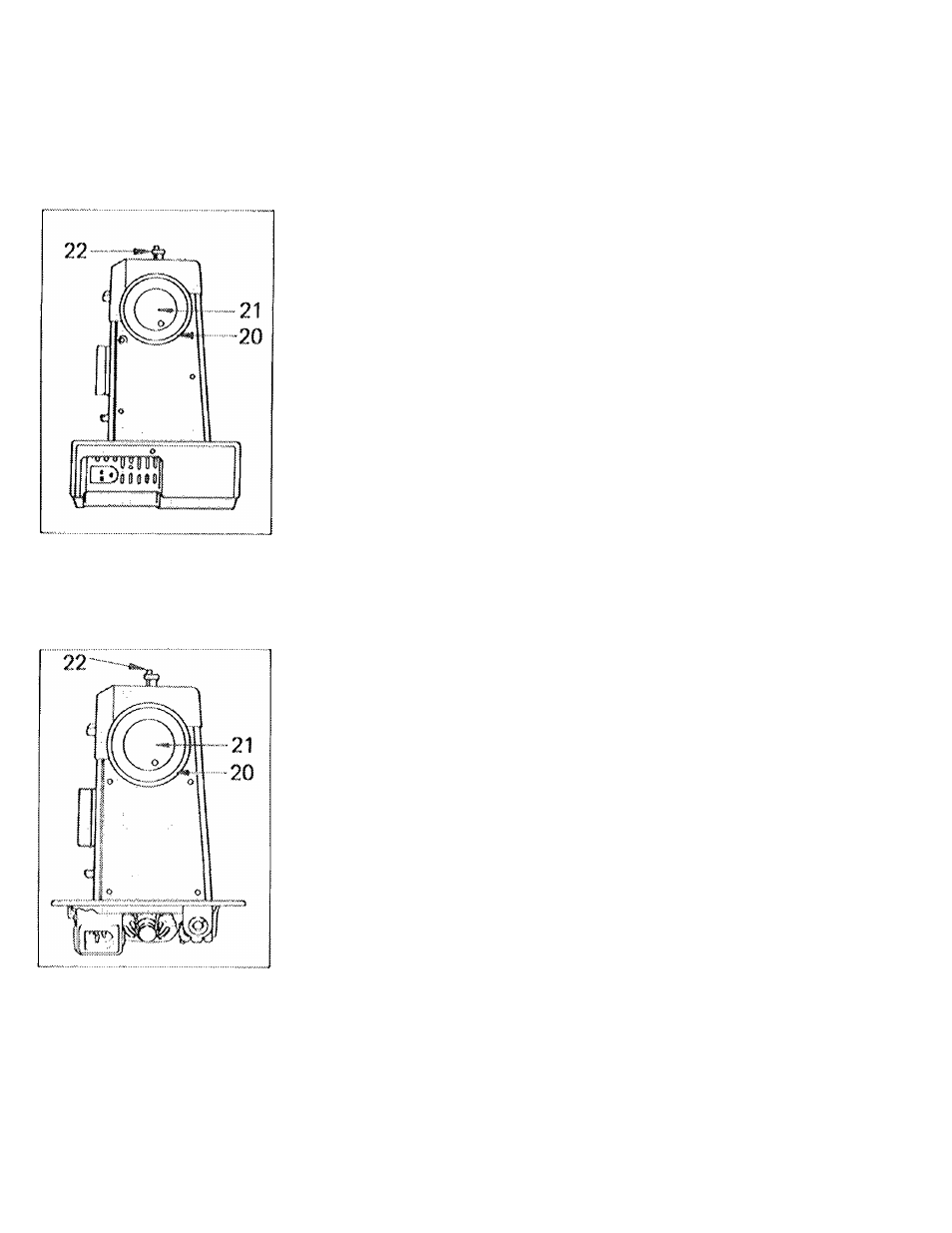

20. Fland Wheel
21. Hand Wheel Knob
22. Bobbin Winder Spindle
23. Reverse Lever
24. Pattern Selector
25. Stitch Length Selector
26. Stitch Width Selector
To ensure that you are always
provided with the most modern
sewing capabilities, THE MANU
FACTURER reserves the right to
change the appearance, design or
accessories of this sewing machine
when considered necessary.
