QT 18 TWIN GARDEN TRACTOR-MODEL NUMBER 917.255910
CHASSIS AND ENCLOSURES
REPAIR PARTS
KEY PART DESCRIPTION KEY PART DESCRIPTION
NO. NO, NO. NO,
1 105515X Seat 35 7982J Drawbar
2 105516X Part • Seat 36 74760716 Bolt - Hex 7/16-14 X 1
3 105529X Bolt • Shoulder 37 73680700 Nut - Lock 7/16- 14
4 10B530X Washer - Spring 38 106520X Pane! - Side - RTL
5 73680500 Nut - Lock 5/16 - 18 39 105562X Decal
6 19171912 Washer 17/32 x 13/16 x 12 Ga. 40 10555IX Pane! - Side - L.H,
7 STD 5B1150 * Washer - Lock 1/2 41 105494X Bracket - Pivot - Frame • R,H.
8 STD525010 *Bolt-Hex 1/2-13 X 1 42 105495X Bracket - Pivot - Frame - L.H,
9 105513X Bracket - Pivot Seat 43 108013X Hood
10 73680600 Nut-Lock 3/8 -16 44
T08087X Shield, Heat, Front
11 105507X Fender 45 STD551025 •Washer 9/32 X 5/8 X 16 Ga.
12 I06202X Refector-Taillight 46 STD551125 •Washer - Lock 1/4
13 105801X Decal 47 STD541025 * Nut-Hex 1/4-20
14 STD523707 •Bolt-Hex 3/8-16x3/4 48 105528X Griii
15 105567X Decai - Chassis 49 105492X Bracket - Pivot - Grill • R.H.
16 17490608 Screw - Hex Washer Thread Roiling 50 105493X Bracket - Pivot - Grill - L.H.
3/8- 16 X 1/2 51 106003X Lens - R.H,
17 17490612 Screw - Hex Washer Thread Rolling 52 106004X Lens - L.H.
3/8 X 16x3/4 54 106008X Bezel - L.H.
18 10551IX Strap - Fender 55 10B005X Bezel - R.H.
19 105514X Clamp - Spring 56 11030400 Washer - Lock • lnt,/Ext, Tooth 1/4
20 10S512X Spring - Compression 57 10609IX Hinge - R.H,
21 19132012 Washer 13/32 x 1 - 1/4 x 12 Ga. 58 10B090X Hinge - L.H.
22 105531X Nut - Push 59 105524X Strap - Grill
23 105509X Bracket - Fender 81 10SB7IX Decal • Hood - R.H.
24 106020X Tank - Fuel
62 1QS570X Decal - Hood - L.H.
25 105965X Cap - Fuel 63 10S569X Decal - Fender
26 M06082X Pad - Spacer ~ - ¿43! J
64 106225X Decai - Drive Belt Schematic -----------
27 6999R Clamp - Hose
65 4900J Decal - Clutch/Brake
28 5277.1 Line “ Fuel
66 3B45J Bushing
29 3008J Line - Fuel 67 871OJ Stem - Tank, Fuel
30 105465X Footrest - L,H, 88 105806X Decal - Griii
31 105466X Pad *• Footrest 69 105B68X Decal - Grill iStripe)
32 105464X Footrest - R.H. 70 19131416 Washer 13/32 X 7/8 X 16 Ga.
33 105S06X Rail - Frame - R.H. 71 ñUU 106G92X Support, Heat ShieW
34 105B04X Rail - Frame - LH. 72it.U4d106698X DecaJ - Fender
^STANDARD HARDWARE--PURCHASE LOCALLY
©2Ì ^
®
10
36
37

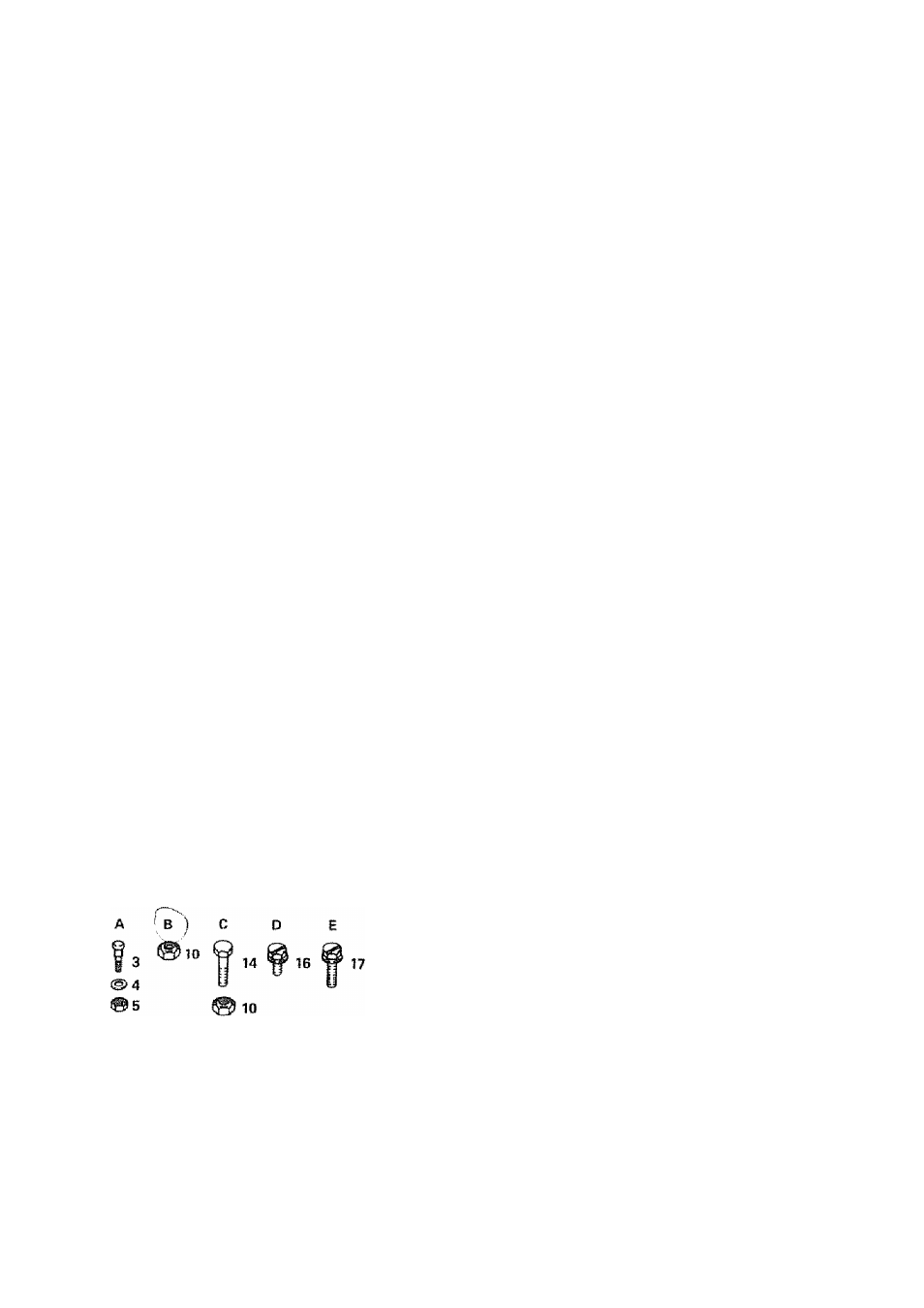

H J K L M
® 45 4g ■I®’56
@ 46
@47
® 47 @ 47
(g) 70 @170
@10
