ITEM
QUANTITY
NAME
DESCRIPTION
1
2
Tube Clamp
7/8 in.
2
1
Tube Clamp
1 1/8 in.
3
2
Tube Clamp
1 3/8 in.
4
1
Tube Clamp
1 5/8 in.
5
2
Valve Body
1/4 in. male flare fitting
6
2
Valve Core
-
7
2
Switch
Fan cycle pressure switch
8
2
Tee
7/8 in.
X
7/8 in
X
7/8 in.
9
1
Tee
1 1/8 in.
X
1 1/8 in.
X
1 1/8 in.
10
1
Tee
7/8 in.
X
7/8 in.
X
1 1/8 in
11
1
Solder Coupling
1 1/8 in.
12
1
Elbow, 90 Degree
1 1/8 in
13
2
Tee
1 3/8 in.
X
1 1/8 in.
X
1 1/8 in
14
1
Tee
1 5/8 in
X
1 3/8 in.
X
1 3/8 in.
15
2
Discharge Tube
1 3/8 in. CD
X
44 23/32 in L x 10 1/16 in. W
16
2
Discharge Tube
1 1/8 in. CD
X
32 11/32 in L
X
5 1/16 in. W
17
2
Discharge Tube
1 1/8 in. CD
X
24 5/32 in L x 5 1/16 in W
18
1
Discharge Tube
1 3/8 in. CD
19
1
Liquid Tube
7/8 in CD
X
16 13/16 in. L
X
3 7/16 in. W
20
1
Discharge Tube
1 1/8 in. ODx 24 1/2 in. L
21
1
Liquid Tube
7/8 in. CD X 17 11/16 in L
22
1
Liquid Tube
7/8 in. CD
X
18 13/16 in Lx 3 7/16 in. W
23
1
Liquid Tube
7/8 in CD x8 11/16in. Lx5 1/16in. W
24
1
Straight Tube
1 1/8 in. ODx 7 3/4 in L
25
1
Straight Tube
7/8 in. CD
X
7 3/4 in. L
26
1
Straight Tube
7/8 in. CD
X
18 1/4 in. L
27
1
Straight Tube
1 5/8 in. OD
X
34 in. L
28
8
Screw
1 / 4 - 1 4 x 5 / 8 in. long
29
1
Straight Tube
7/8 in. OD
X
3 7/8 in long
30
1
Discharge Tube
1 1/8 in. OD
X
44 19/32 in. L x 11 9/16 in. W

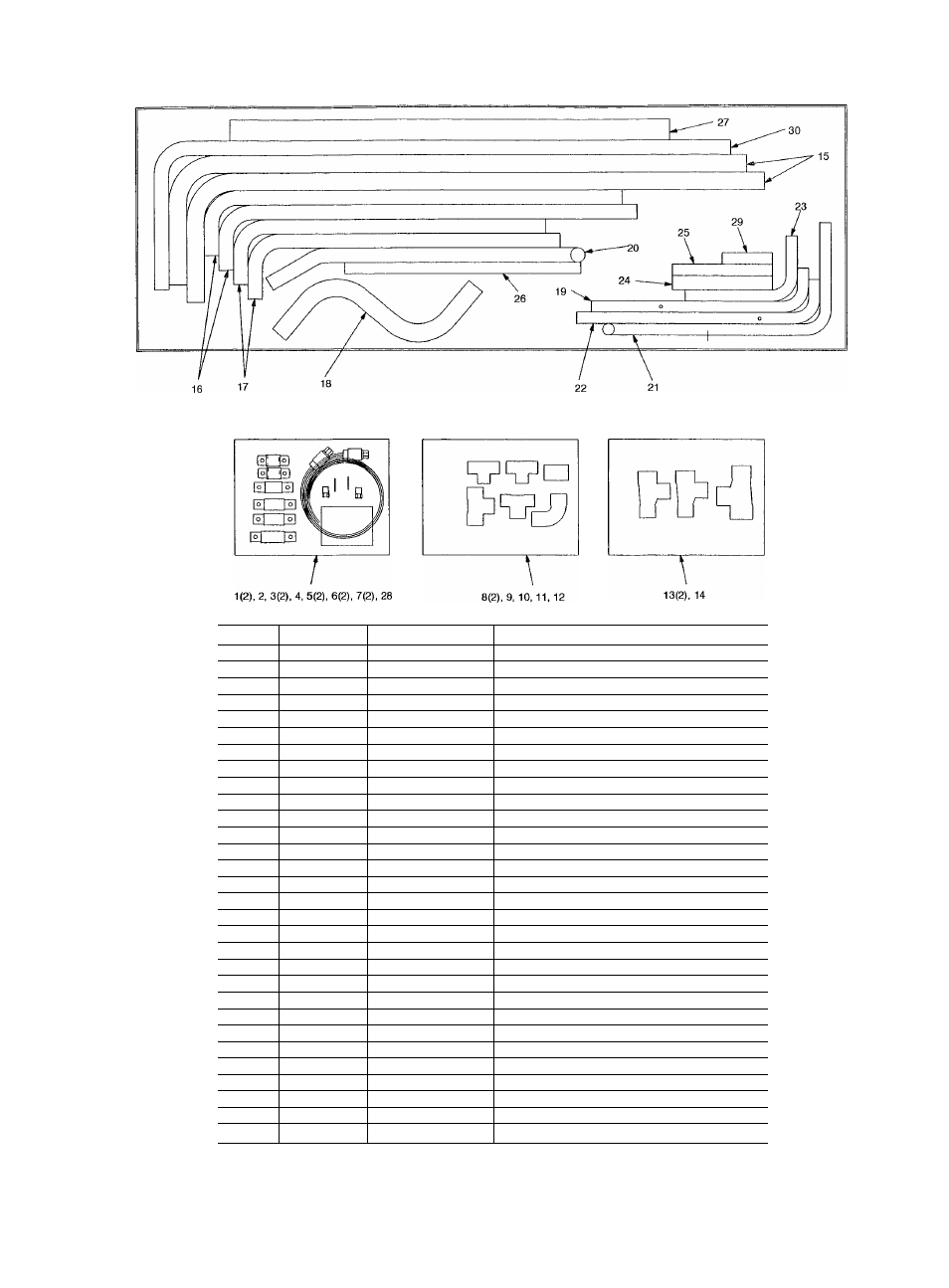

Fig. 5 - 09DK054,064 Tubing Package Contents
