CSCE NOTE AfU 37 » 39
Units are factory wired for a 50%/50% capacity split. If 100% capacity is required, con­
nect the factory-supplied jumpers from TB2-1 to TB3-1 and from TB2-2 to TB3-2.
When a fan control kit is used, the jumper from TB2-1 to TB3-1 and from TB2-2 to TB3-2
must be connected. The fan control kit is factory wired for 67%/33% capacity split. If a
33%/33%/33% capacity split is required, remove the jumper from TB4-1 to TB5-1 and
from TB4-2 to TB5-2. If a 33%/33%/17%/17% capacity split is required, remove the jump­
ers from TB4-1 to TB5-1 to TB7-1 and from TB4-2 to TB5-2 to TB7-2.
On fan control kits, 208/230 v units are factory wired for 230 v power supply. For 208 v
power supply, connect yellow wire to terminal marked H2.
Terminal blocks TB2, TB3, TB4, TBS, TBS and TB7 are for external field control connec­
tions. Control connections are to be class 1 wiring, 14 AWG {American Wire Gage) cop­
per conductors only.
5. Wiring for field power supply must be rated 75° C minimum. Use copper, copper-clad
aluminum, or aluminum conductors. Maximum incoming wire size for each terminal block
IS 2/0.
6. Replacement of factory wires must be with 105° C wire or its equivalent.
7.
Factory wiring is in accordance with National Electncal Code (NEC). Field modifications
or additions must be in compliance with all applicable codes.
8. Fan motors are thermally protected. Three-phase motors are protected against primary
single phasing conditions.
9. Line numbers on the left side of the label diagrams indicate the contact number. The
numbers on the right side of label diagrams match the contacts with their corresponding
coils. A plain number indicates normally open contacts. An underlined number indicates
normally closed contacts.

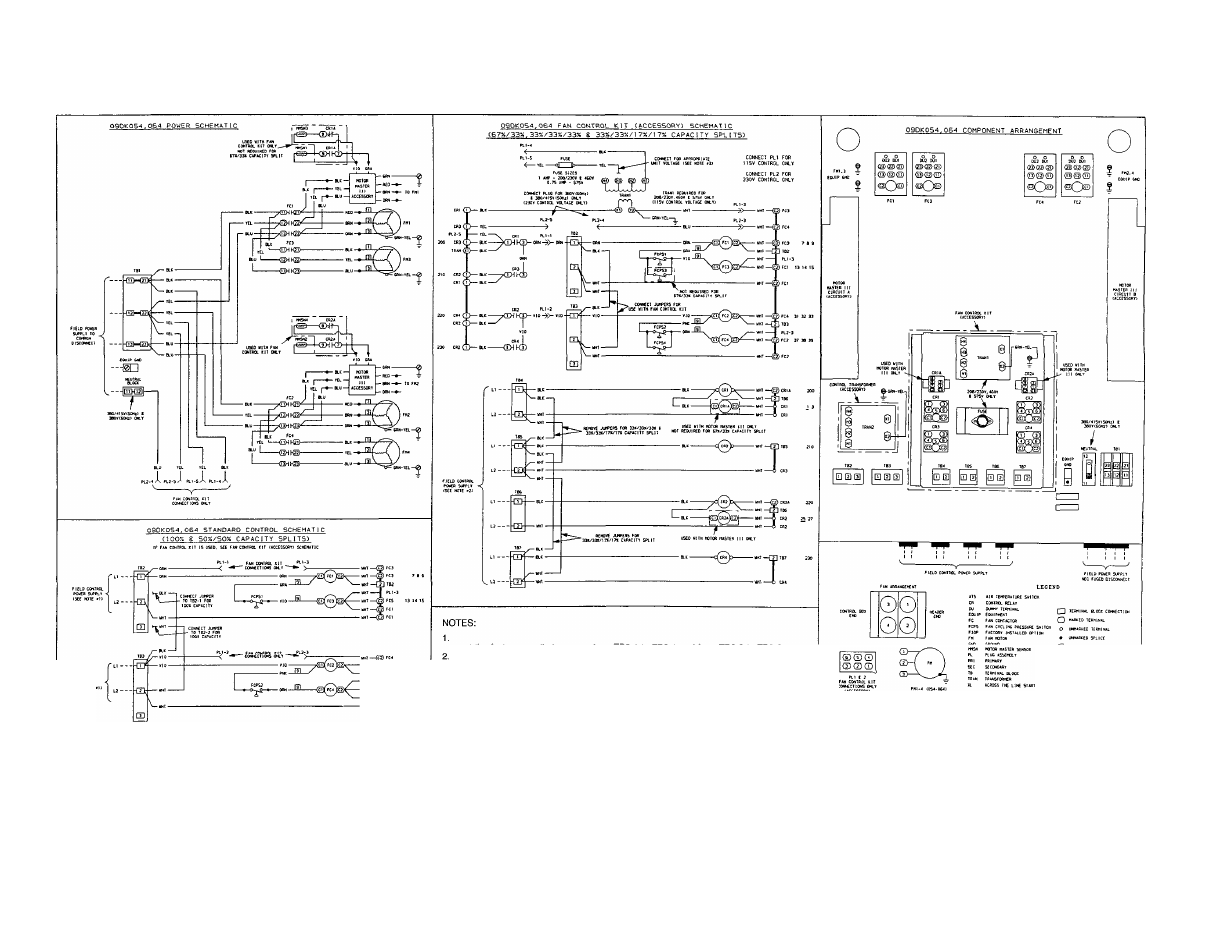

Fig. 16 — Wiring Diagram and Component Arrangement; 054 and 064 Units
It c c
CCNtROl KIT 0K.T) CONTRO. nl ONLr)
