1. The approximate operating weight of the unit is:
09DK-054— ________► 1695 lb [769 kg]
09DK-054-C-------------»• 1983 lb [900 kg]
09DK-064---------------->■ 1845 lb [837 kg]
09DK-064-C-------------»-2278 lb [1033 kg]
2. Unit must have clearances for airflow as follows:
Top — Do not restrict in any way.
Ends — 5 ft [1524 mm]
Sides — 6 ft [1829 mm]
3. All units are shipped with a capacity split tubing kit. This kit may be used by
the field to obtain 100%, 50%/50% and 67%/33% capacity splits. To obtain
a 33%/33%/33% capacity split, coils must be manifolded by the field. Coils
are factory circuited for a 33%/33%/17%/17% capacity split.
NOTES:
CONTROL BOX
END
UNIT
DIMENSION DIMENSION OPERATING CORNER WEIGHTS
Y X A В C D
09DK-054—
3'-6 11/16"
[1084 mm] 4'-1/8"
[1222 mm]
452 lb
[205 kg]
425 lb
[193 kg]
396 Ib
[180 kg]
422 Ib
[191 kg]
09DK-054-C
3'-6 7/8"
[1090 mm]
4'-5/16"
[1227 mm]
524 lb
[238 kg]
497 lb
[225 kg]
468 Ib
[212 kg]
494 Ib
[224 kg]
09DK-064—
3'-6 3/4"
[1087 mm]
4'-3/16"
[1224 mm]
489 lb
[222 kg]
462 lb
[210 kg]
434 Ib
[197 kg]
459 Ib
[208 kg]
09DK-064-C
3'-7 1/8"
[1095 mm]
4'-1/2"
[1232 mm]
598 lb
[271 kg]
571 Ib
[259 kg]
542 Ib
[246 kg]
568 Ib
[258 kg]
CAPACITY SPLIT
CONNECTIONS
TYPE N0.5 SIZE
1 00У.
HOT GAS 1,3,5.7 1 1/8' I.D.
LIQUID 2,4,5,8 7/6 I.D.
50%/50%
HOT GAS 1,3 5,7 1 1/8' I.D.
LIQUID 2,4 6,8 7/8 I.D.
67%/33%
HOT GAS 1,3,5 7 1 1/8' I.D.
LIQUID 2.4,6 8 7/8 I.D.
33%/33%/33%
HOT GAS 1 7 3,5 1 1/8' I.D.
LIQUID 2 8 4.6 7/8 I.D.
ЗЗУ./ЗЗУ./17%/17%
HOT GAS 1 7 3 5 1 1/8' I.D.
LIQUID 2 8 4 6 7/8 I.D.
7'-4 1/2"-
C2247miil
BASE OVERALL

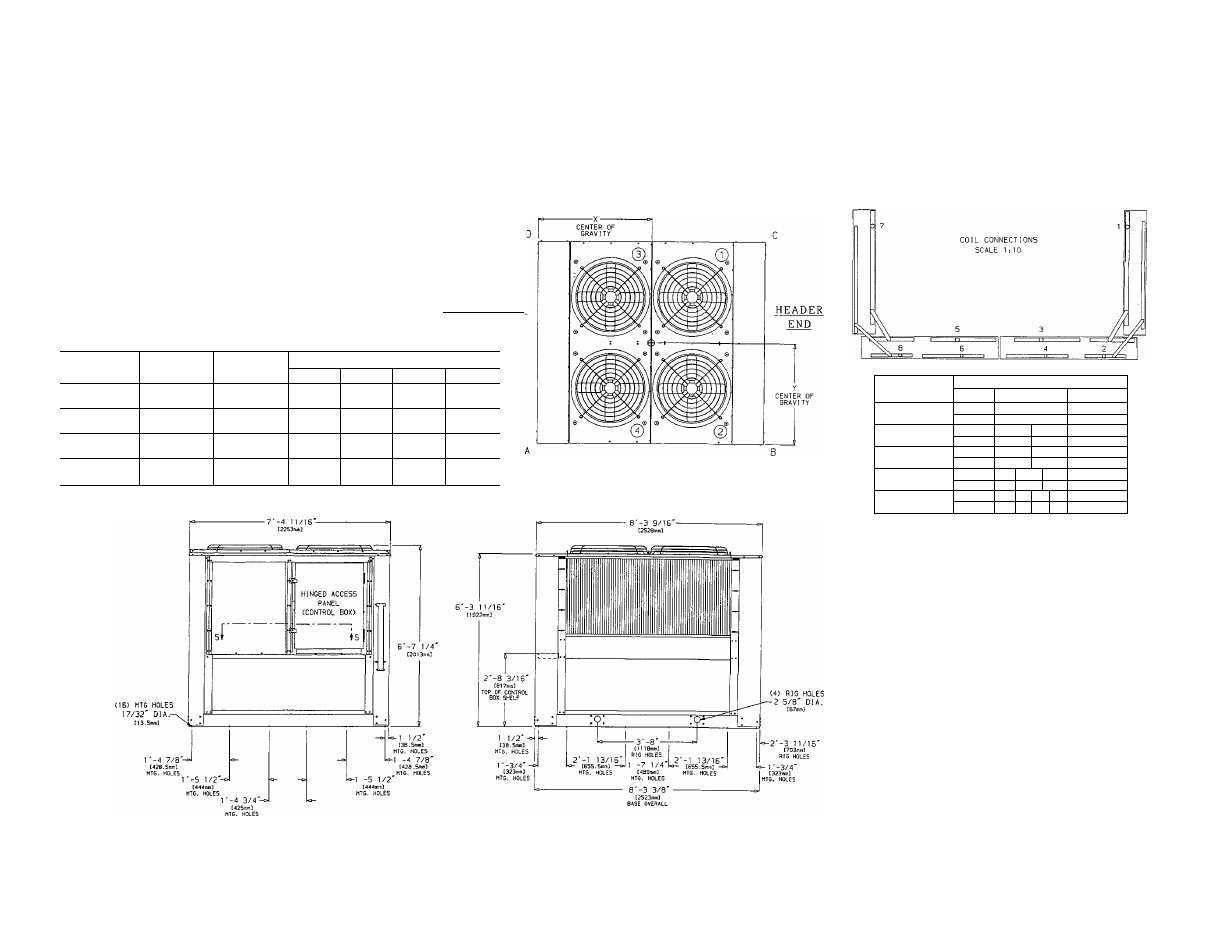

Fig. 2 — Dimensions; 054 and 064 Units
