SEE NOTE 1

09DK084 UNIT (LOCATED ABOVE OTHER COMPONENTS)

COMPRESSORS

FILTER-DRIERS*

SEE NOTE 4

PRESSURE RELIEF DEVICES*

‘Field supplied.

NOTES

Hot gas lines should rise above refrigerant level in con­

denser circuit.

2. Trap should be installed on hot gas lines to prevent

condenser oil and refrigerant vapor migration from ac­
cumulating on compressor heads during off cycle.
Pitch all horizontal lines downward in the direction of
refrigerant flow.
Refer to Carrier System Design Manual, part 3 for proper
piping sizes and design.

MOISTURE

■ INDICATORS*

(SIGHT GLASS)

SEE NOTE 4

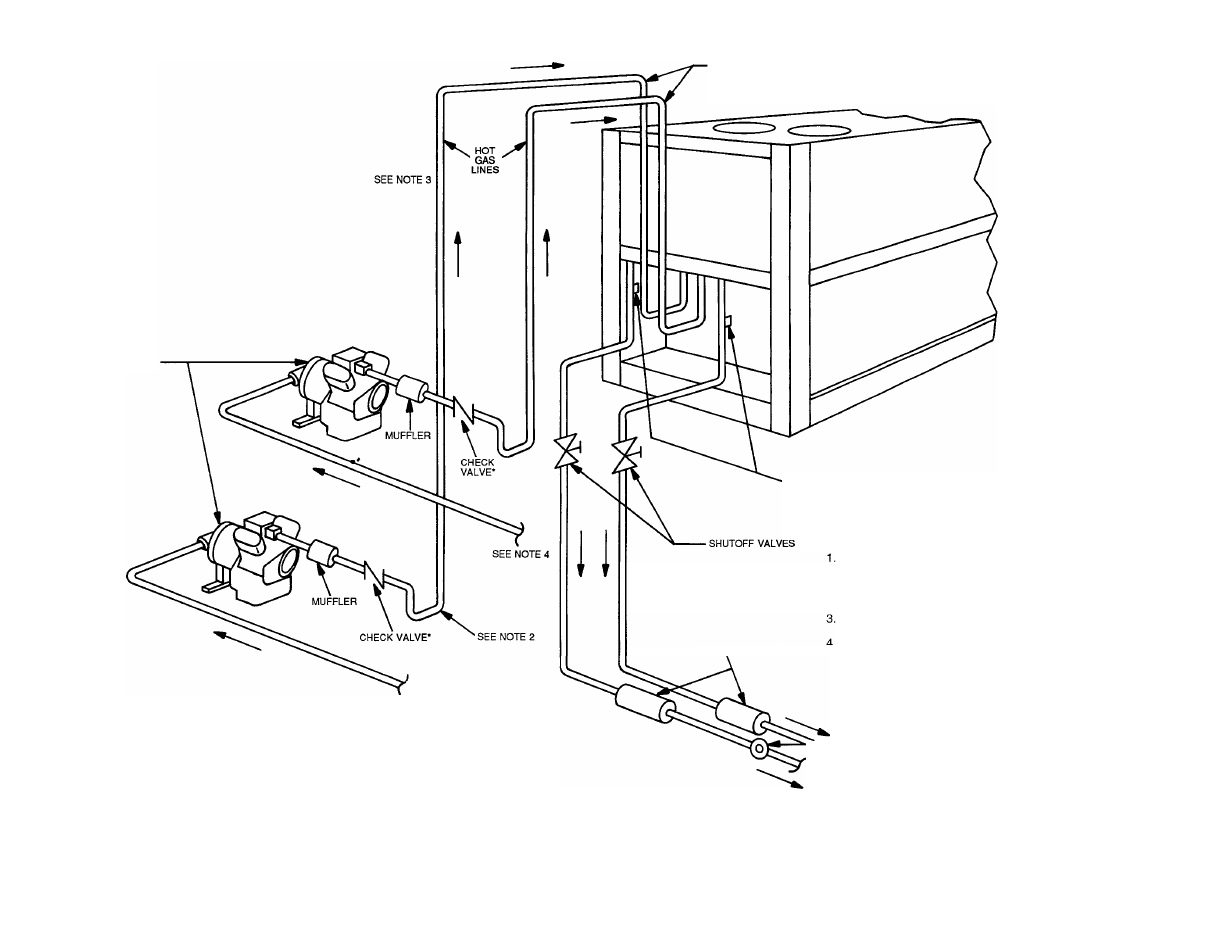

Fig. 8 — Typical Piping for 09DK Condenser With a Dual Split System
