50 / 50%

FCPS — Fan Cycle Pressure Switch

NOTES:

1. Dimensions in ( ) are in millimeters.
2. See Fig. 5 for tubing package contents

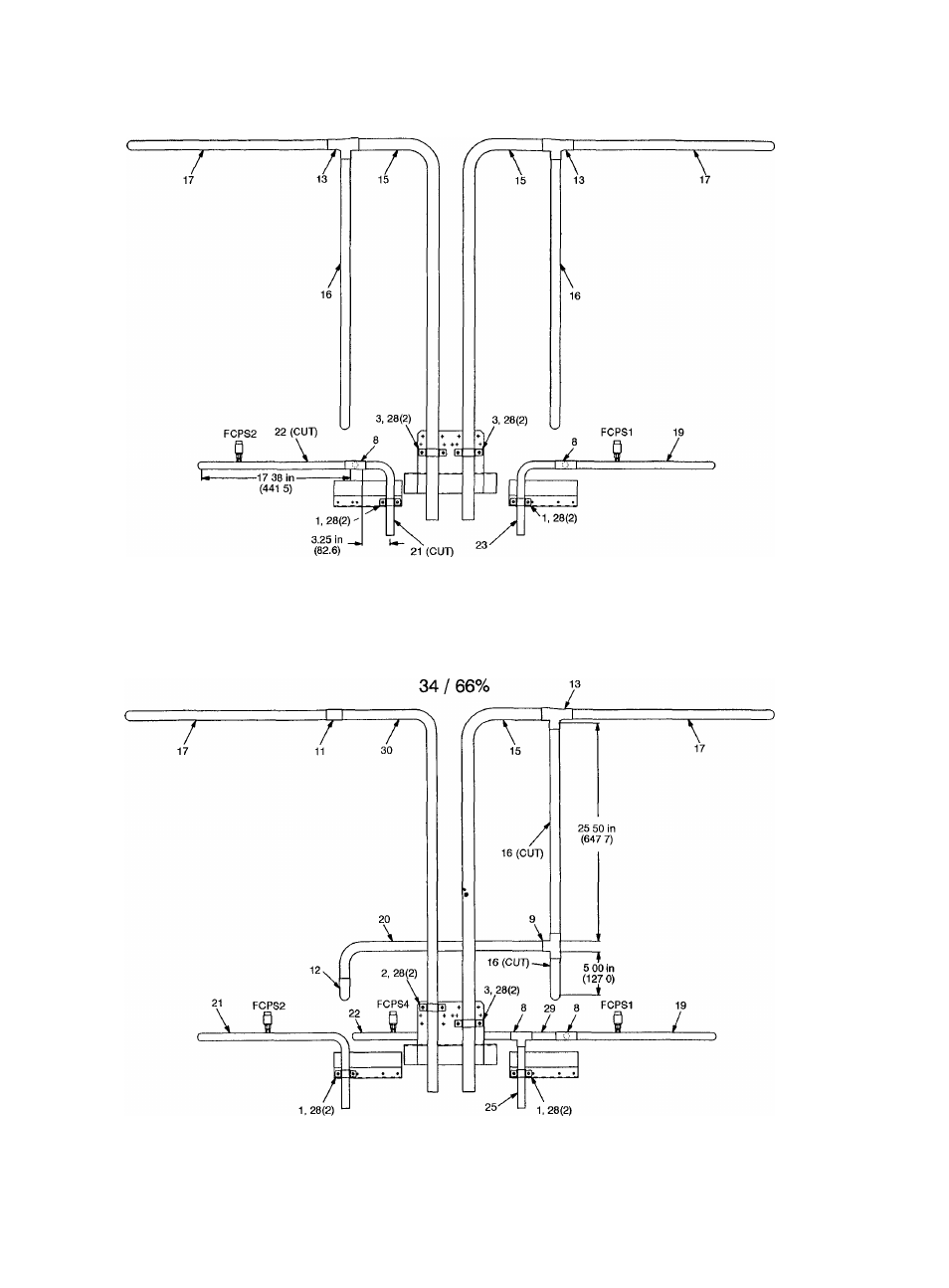

Fig. 17 - 50/50% Coil Circuiting; 054 and 064 Units

FCPS — Fan Cycle Pressure Switch

NOTES:

1. Dimensions in ( ) are in millimeters.

2. See Fig. 5 for tubing package contents

Fig. 18 — 66/34% Coil Circuiting; 054 and 064 Units
