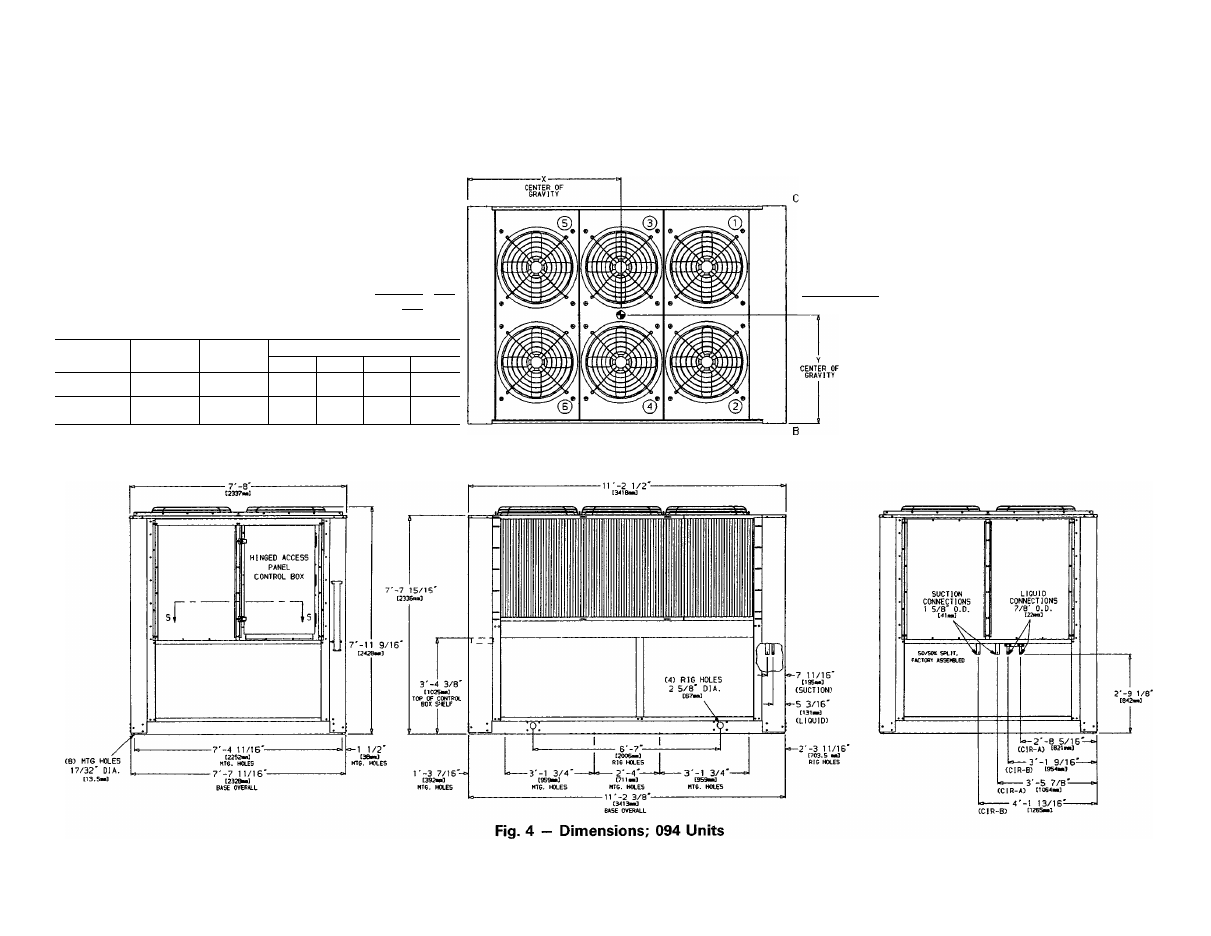

1. The approximate operating weight of the unit is:
09DK-094---------------- ». 2850 lb [1294 kg]
09DK-094-C------------- »3560 lb [1615 kg]
2. Unit must have clearances for airflow as follows:
Top — Do not restrict in any way.
Ends — 5 ft [1524 mm]
Sides — 6 ft [1829 mm]
3. Mounting holes may be used to mount unit to concrete pad. They are not
recommended for mounting unit to spring isolators. If spring isolators are
used, a perimeter support channel between the unit and the isolators is
recommended.
CONTROL
END
NOTES.
BOX
UNIT
DIMENSION DIMENSION OPERATING CORNER WEIGHTS
Y X A B C D
09DK-094—
5’-2 7/8"
[1597 mm]
3'-9 3/16"
[1148 mm]
769 lb
[349 kg]
676 lb
[307 kg]
658 lb
[299 kg]
747 lb
[339 kg]
09DK-094-C
5'-2 7/8"
[1597 mm]
3'-9 3/16"
[1148 mm]
960 lb
[436 kg]
845 lb
[383 kg]
821 lb
[372 kg]
934 lb
[424 kg]
HEADER END
