Page 10
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
16
ITEM
QUANTITY
NAME
DESCRIPTION
1
2
Tube Clamp
7/8 in.
2
1
Tube Clamp
1 1/8 in.
3
1
Tube Clamp
1 3/8 in
4
2
Tube Clamp
1 5/8 in.
5
1
Tube Clamp
2 1/8 in.
6
2
Valve Body
1/4 in. maie flare fitting
7
2
Valve Core
-
8
2
Switch
Fan cycle pressure switch
9
2
Tee
7/8 in.
X
7/8 in.
X
7/8 in
10
1
Coupling
1 3/8 in.
X
1 3/8 in
11
1
Tee
7/8 in.
X
7/8 in
X
1 1/8 in
12
1
Tee
1 3/8 in.
X
1 3/8 in.
X
1 3/8 in.
13
2
Tee
1 5/8 in
X
1 3/8 in.
X
1 3/8 in.
14
1
Tee
. 2 1/8 in.
X
1 5/8 in.
X
1 5/8 in.
15
1
Discharge Tube
1 3/8 in. CD
X
50 25/32 in. L x 14 1/8 in. W
16
2
Discharge Tube
1 5/8 in. OD
X
50 29/32 in. L x 12 1/16 in. W
17
2
Discharge Tube
1 3/8 in. OD
X
34 1/2 in. L
X
4 3/4 in. W
18
2
Discharge Tube
1 3/8 in. OD
X
19 7/8 in. L x 4 3/4 in. W
19
1
Discharge Tube
1 5/8 in. OD
20
1
Liquid Tube
7/8 in OD
X
23 13/16 in. L
X
3 7/16 in. W
21
1
Discharge Tube
1 3/8 in. OD
X
28 3/8 in. L
22
1
Liquid Tube
7/8 in. OD
X
23 1/4 in. L (074 Units only)
23
1
Liquid Tube
7/8 in. OD
X
18 1/4 in. L
24
1
Liquid Tube
7/8 in. OD
X
14 13/16 in. L
X
3 7/16 in. W
25
1
Straight Tube
1 1/8 in. O D x 7 3/4in. L
26
1
Straight Tube
7/8 in. OD
X
8 1/4 in. L
27
1
Straight Tube
7/8 in. OD
X
17 7/8 in. L
28
1
Straight Tube
2 1/8 in. OD
X
40 in. L
29
8
Screw
1/4 in.-14
X
5/8 in. long

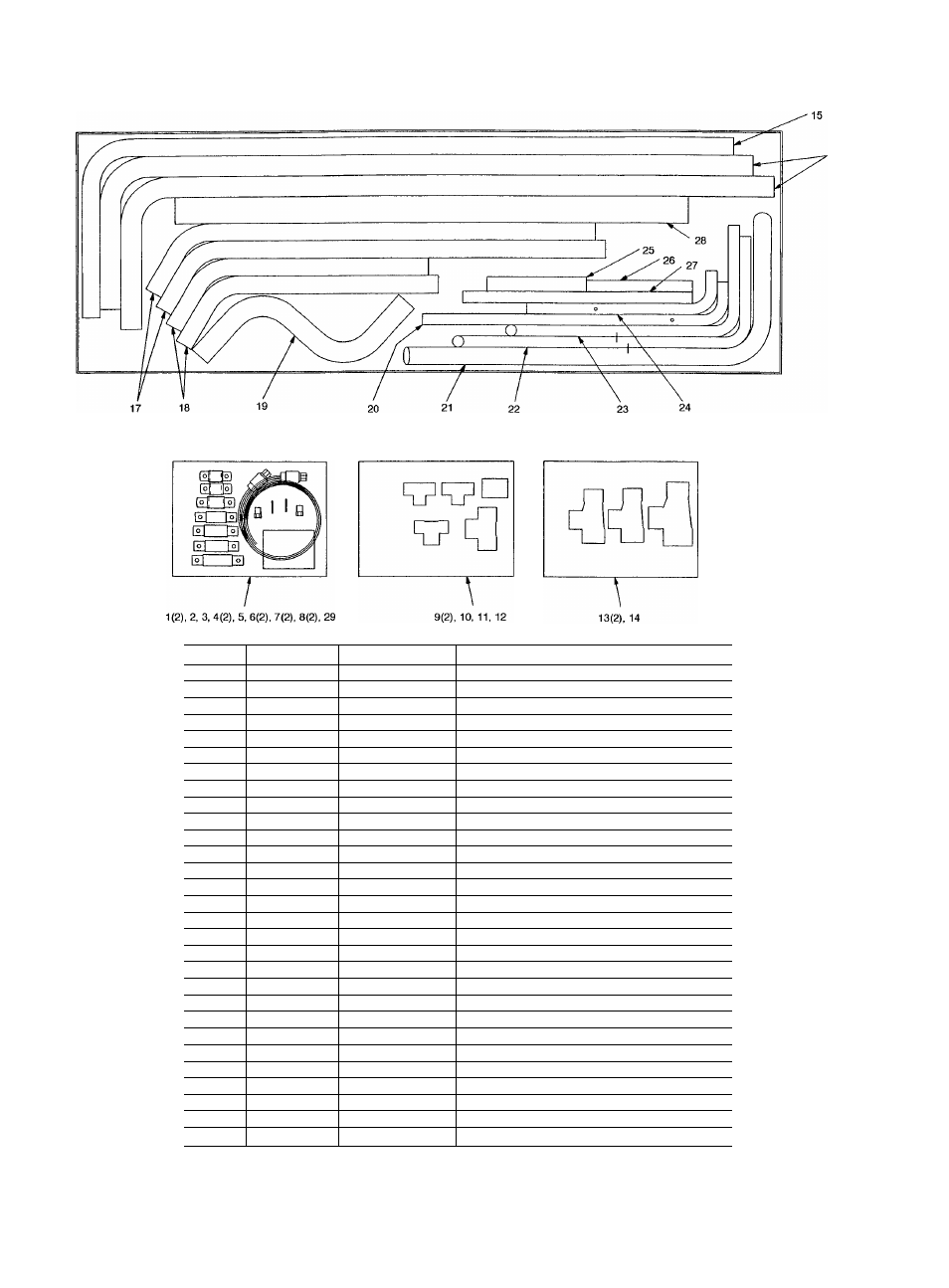

Fig. 6 - 09DK074,084 Tubing Package Contents
