LEGEND
CR
— Control Rela^
GV
— Gas Valve
HA
— Heat Anticipator
HR
— Heating Relay
TC
— Thermostat, Cooling
TH
— Thermostat, Heating
Tran
— Transformer
0
Screw Terminal
Quick-Connect Terminal
Factory Control Wires
Printed Circuit
_______ Field Wiring

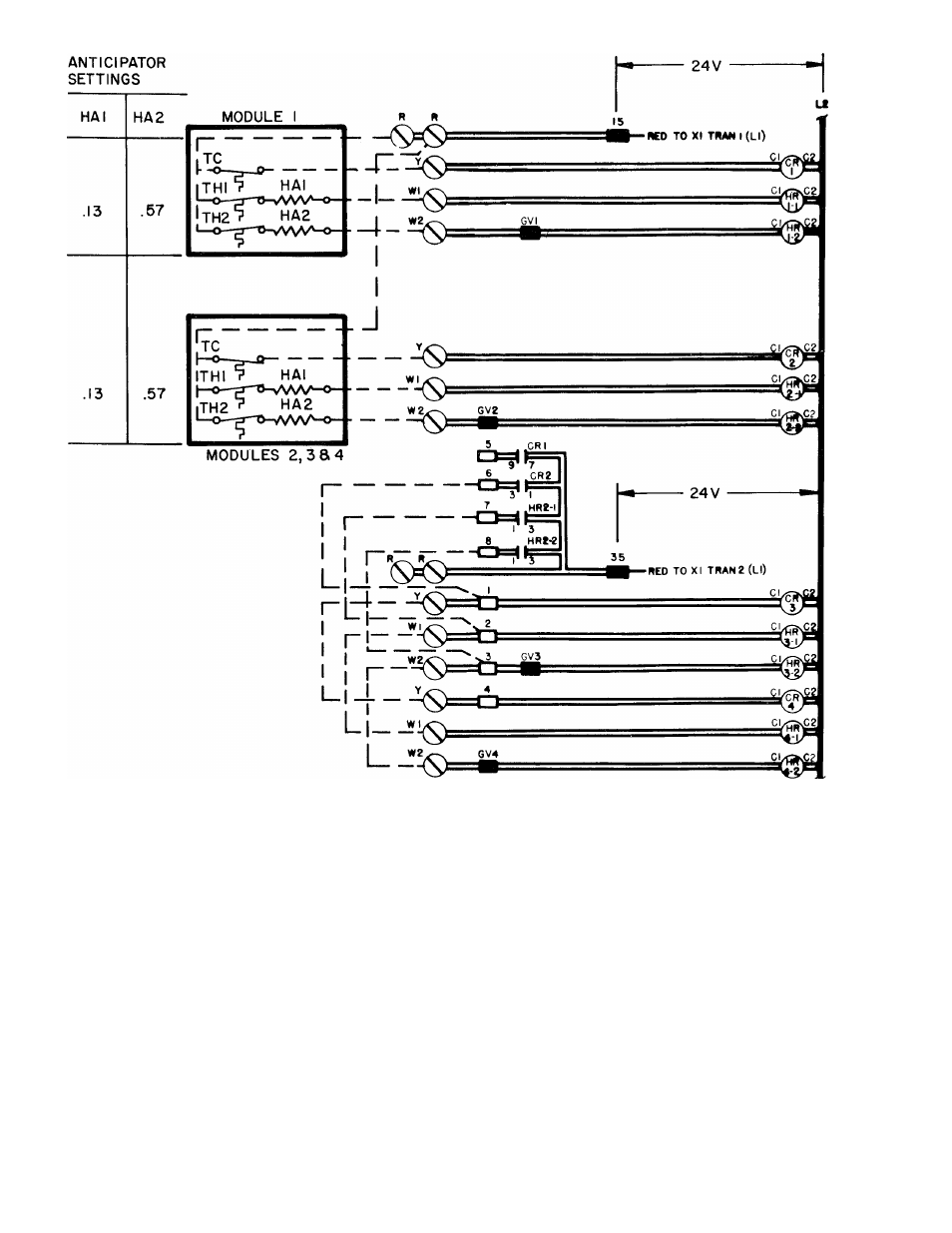

Fig. 28 - Two-Stage Heat, One-Stage Cool - 3 Modules Per Zone
26
