5.4.3 GENERATOR
Contains electrical values of the generator (alternator), measured or derived from the module’s voltage and current
inputs.
•
Generator Voltage (ph-N)
•
Generator Voltage (ph-ph)
•
Generator Frequency
•
Generator Current
•
Generator Earth Current
•
Generator Load (kW)
•
Generator Load (kVA)
•
Generator Power Factor
•
Generator Load (kVAr)
•
Generator Load (kWh, kVAh, kVArh)
•
Generator Phase Sequence
•

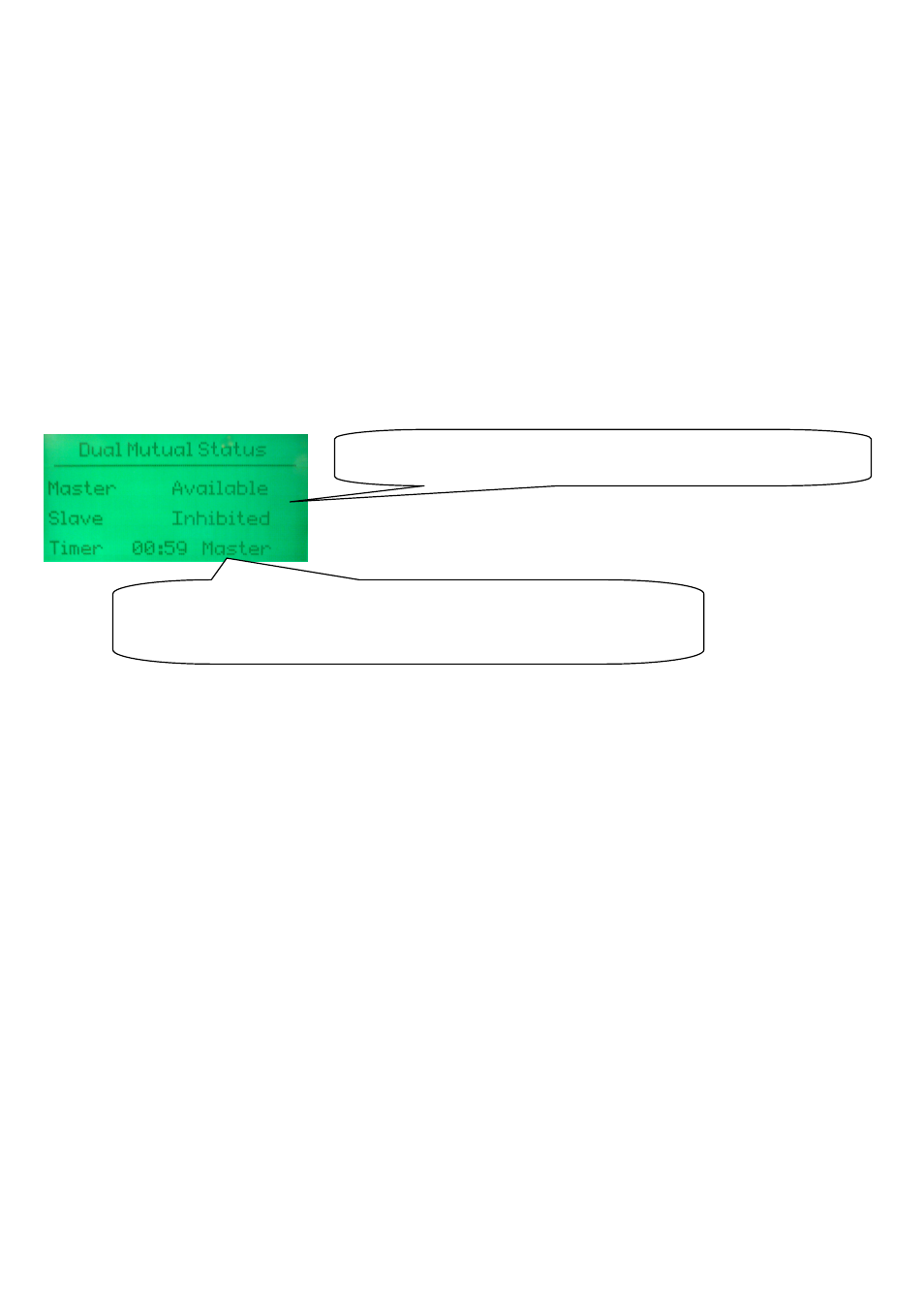

Dual Mutual Status
Available : The set is running and available
Inhibited : The set is prevented from running by the ‘other‘ controller
Master : The master set will call for the slave when the timer (hrs:mins)
expires.
Slave : The master will call for the slave until the timer (hrs:mins) expires.
