11 MAINTENANCE, SPARES, REPAIR AND SERVICING
The DSE7000 Series controller is designed to be Fit and Forget. As such, there are no user serviceable parts within
the controller.
In the case of malfunction, you should contact your original equipment supplier (OEM).
11.1 PURCHASING ADDITIONAL CONNECTOR PLUGS FROM DSE
11.1.1 DSE7200 SERIES
If you require additional plugs from DSE, please contact our Sales department using the part numbers below.
11.1.1.1 PACK OF PLUGS
Module type Plug Pack Part Number
DSE7210 057-511
DSE7220 007-512
11.1.1.2 INDIVIDUAL PLUGS

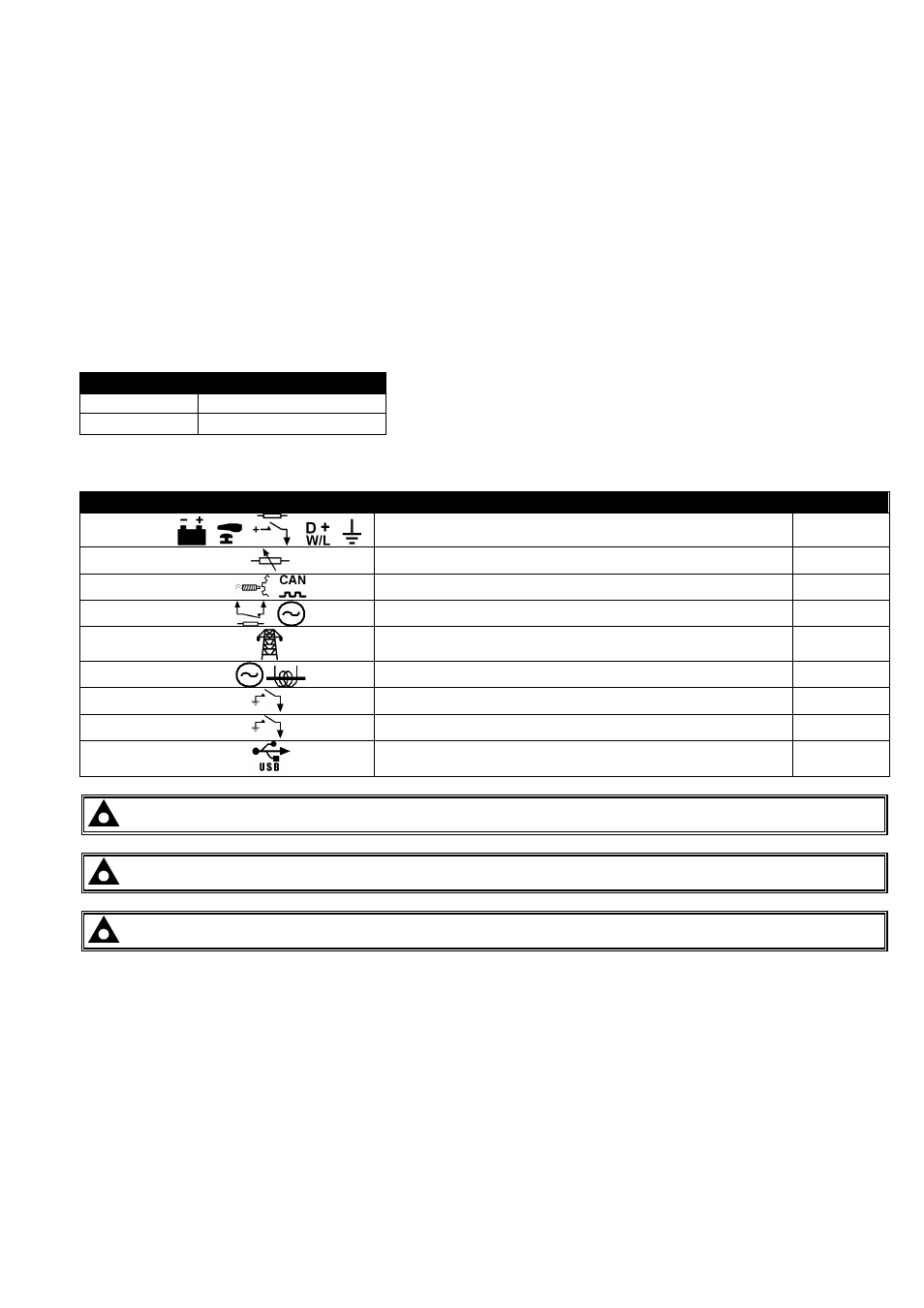

7000 series terminal designation Plug description Part No.
1-11 11 way 5.08mm 007-451
15-18 4 way 5.08mm 007-100
22-30 9 way 5.08mm 007-167
39-46 8 way 7.62mm 007-454
47-50 4 way 7.62mm (Not fitted to DSE7210) 007-171
51-56 6 way 5.08mm 007-446
60-65 6 way 5.08mm (DSE7200 series only) 007-379
60-67 8 way 5.08mm (DSE7300 series only) 007-164
PC Configuration interface lead
(USB type A – type B)
016-125
NOTE:- Terminal 19 is not fitted to DSE72000 series controllers.
NOTE:- Mains sensing (Terminals 47-50) is not fitted on DSE7210 autostart controller.
NOTE:- RS485 connector is not fitted to the 7200 series controller.
