DSE Model 7000 Series Control and Instrumentation System Operators Manual
58
Part No. 057-074 7000 Series OPERATING MANUAL ISSUE 5 15/10/2009 ADM
5.4.1 STATUS
This is the ‘home’ page, the page that is displayed when no other page has been selected, and the page that is
automatically displayed after a period of inactivity (LCD Page Timer) of the module control buttons.
This page is configurable using the DSE Configuration Suite Software.

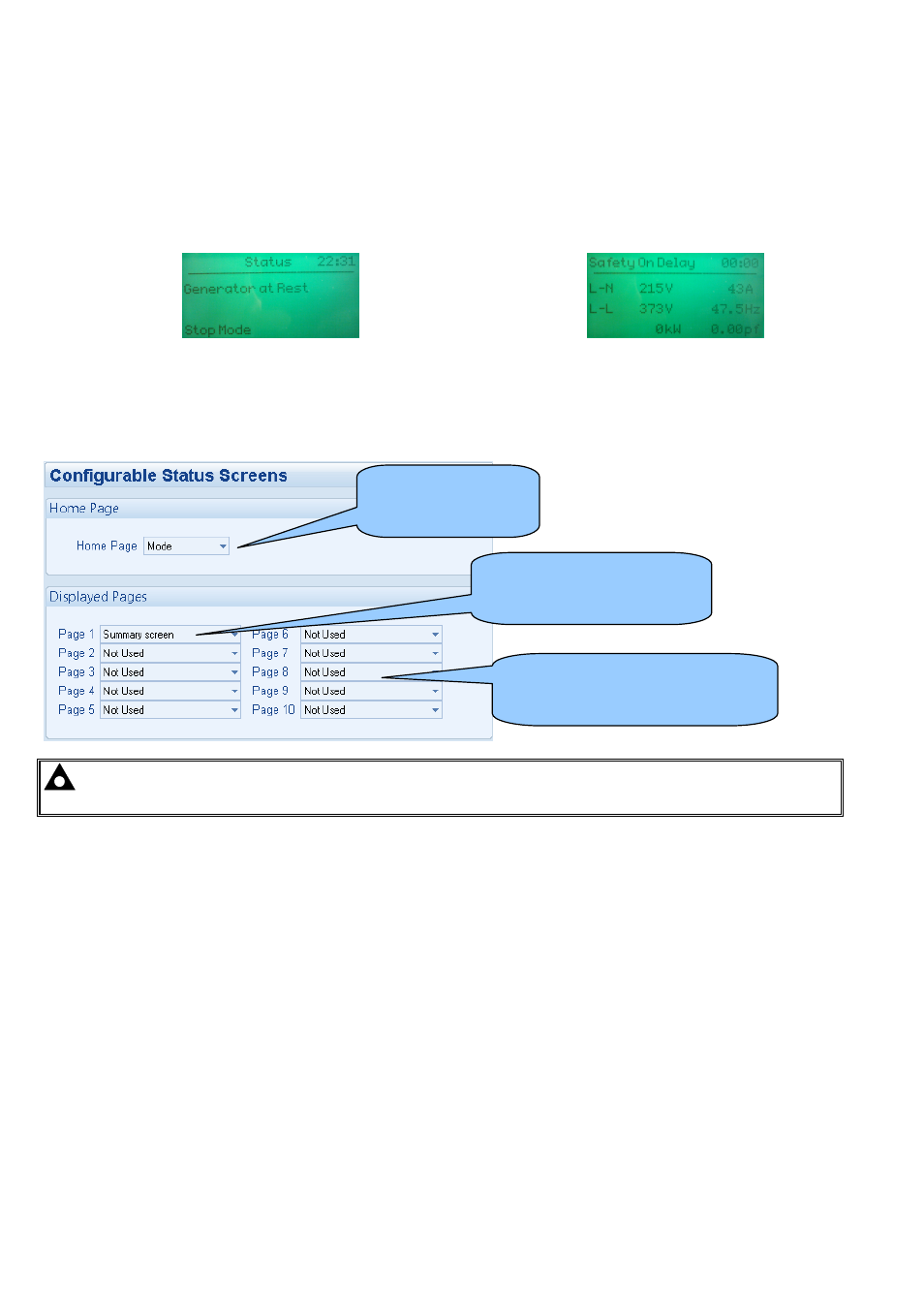

Factory setting of Status screen showing engine stopped...
...and engine running
The contents of this display may vary depending upon configuration by the generator manufacturer / supplier.
The display above was achieved with the factory settings, shown below in the DSE Configuration suite software:
NOTE:- The following sections detail instrumentation pages, accessible using the scroll left and right
buttons, regardless of what pages are configured to be displayed on the ‘status’ screen.
‘Stop Mode’ etc is
displayed on the
Home Page
With a summary of the
instrumentation shown when
the engine is running.
Other pages can be configured to
be shown, automatically scrolling
when the set is running.
