DSE Model 7000 Series Control and Instrumentation System Operators Manual
18
Part No. 057-074 7000 Series OPERATING MANUAL ISSUE 5 15/10/2009 ADM
3.12 SOUNDER
DSE7000 Series features an internal sounder to draw attention to warning, shutdown and electrical trip alarms.
Sounder level
84db @ 1m
3.12.1 ADDING AN EXTERNAL SOUNDER TO THE APPLICATION
Should an external alarm or indicator be required, this can be achieved by using the DSE Configuration Suite PC
software to configure an auxiliary output for “Audible Alarm”, and by configuring an auxiliary input for “Alarm Mute”
(if required).
The audible alarm output activates and de-activates at the same time as the module’s internal sounder. The Alarm
mute input and internal alarm mute button activate ‘in parallel’ with each other. Either signal will mute both the
internal sounder and audible alarm output.

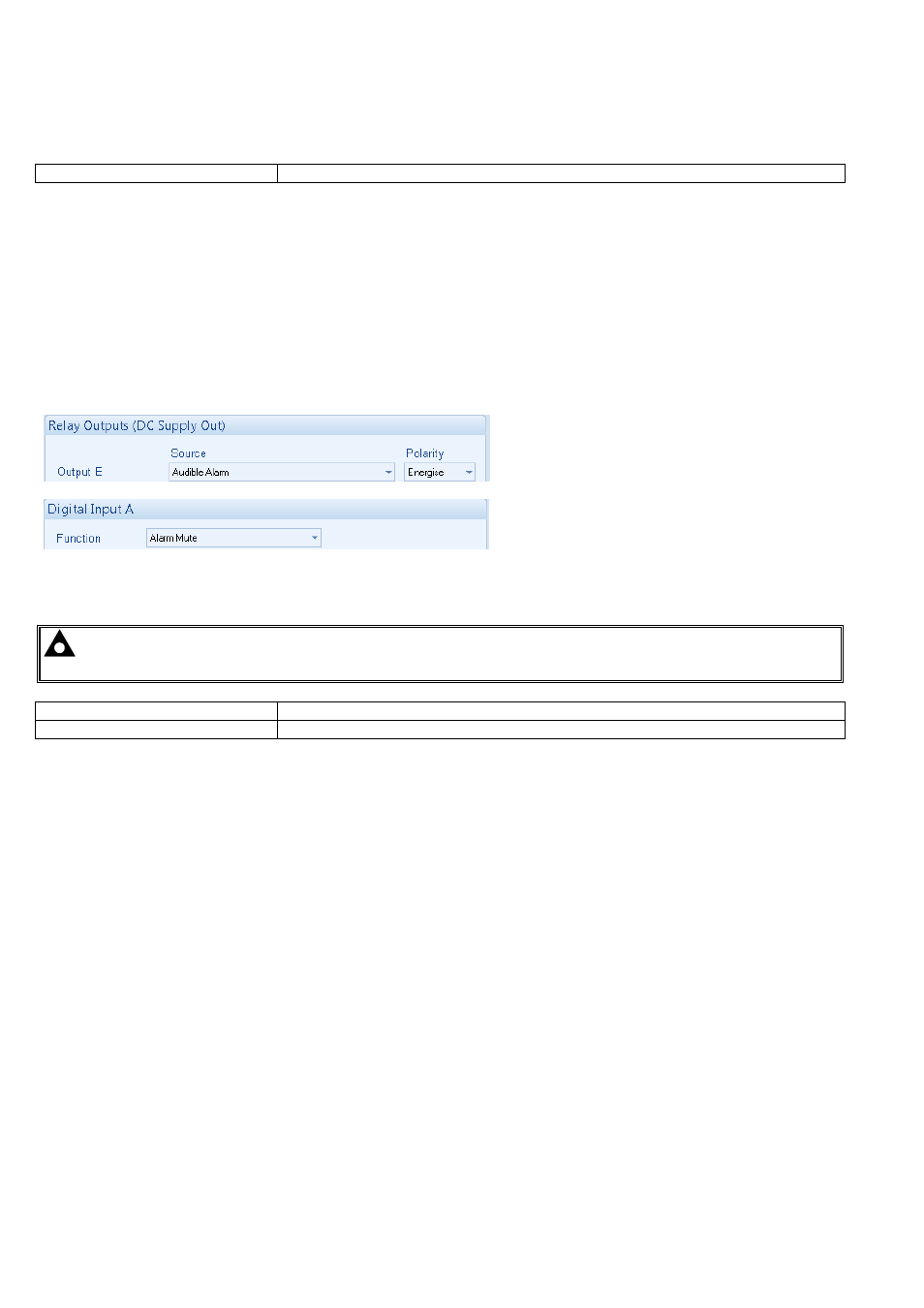

Example of configuration to achieve external sounder with external alarm mute button:
3.13 ACCUMULATED INSTRUMENTATION
NOTE : When an accumulated instrumentation value exceeds the maximum number as listed below, it
will reset and begin counting from zero again.
Engine hours run
Maximum 99999 hrs 59 minutes (approximately 11yrs 4months)
Number of starts
1,000,000 (1 million)
The number of logged Engine Hours and Number of Starts can be set/reset using the DSE Configuration Suite PC
software. Depending upon module configuration, this may have been PIN number locked by your generator supplier
.
