Media Block Details

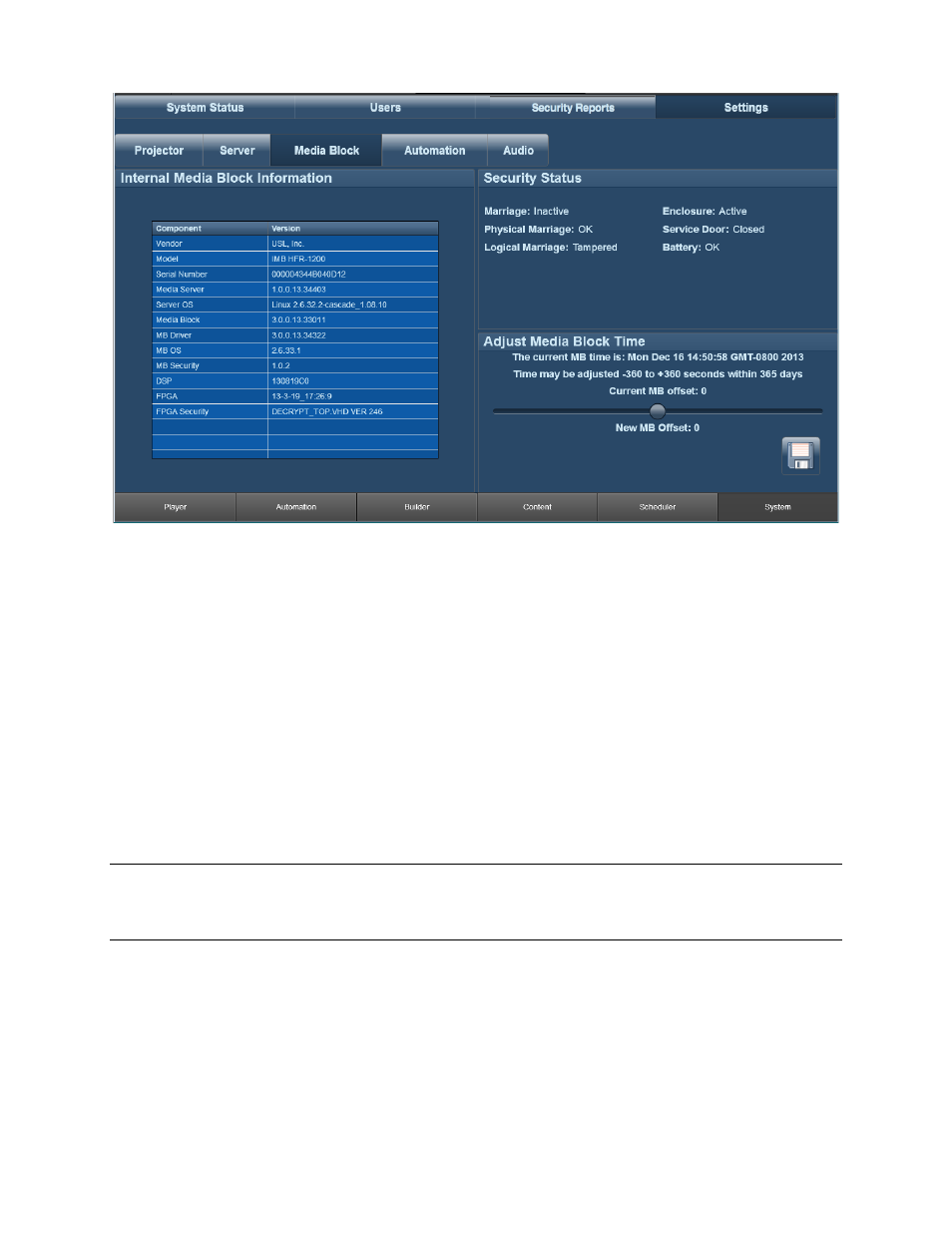

Figure
11-­‐9.
Media
Block
Settings
Internal Information
The
Internal
Media
Block
Information
pane
has
specific
model
and
version
details
for
the
media
block.
Security Status and Marriage
Marriage
–
Will
be
Active
if
both
Physical
and
Logical
Marriages
are
OK
Physical
Marriage
–
Monitors
the
tamper
state
of
the
ICP
Logical
Marriage
–
Monitors
the
secure
communication
between
the
CMS
and
projector
Enclosure
–
Indicates
the
state
of
the
IMB
security
heatsink
Service
Door
–
Monitors
the
current
state
of
the
service
door
tamper
switches.
Battery
–
Indicates
the
current
status
of
the
security
battery.
When
the
battery
indicates
low,
it
should
be
replaced
according
to
the
procedure
in
Section
14.
Warning:
It
is
important
that
this
procedure
be
completed
carefully
and
according
to
the
procedure,
as
the
battery
is
responsible
for
maintaining
the
secure
keys
for
the
CMS-­‐2200.
If
the
procedure
is
not
followed
correctly,
the
keys
will
be
lost
and
the
CMS-­‐2200
will
be
unusable.
Adjust Media Block Time
This
section
indicates
the
current
media
block
time,
which
is
used
for
all
logs
and
secure
time.
The
media
block
time
is
allowed
to
be
adjusted
+/-­‐
360
seconds
within
365
days.
The
current
offset
is
shown
and
the
slider
may
be
adjusted
to
provide
a
new
offset
setting.
The
Save
button
must
be
used
to
store
the
new
offset.
Adjust HD-­‐SDI Settings
This
pane
allows
you
to
match
the
input
mode
of
a
variety
of
HD-­‐SDI
sources.
