Status and Reset.
There
are
a
number
of
LED
indicators
on
the
CMS-­‐2200
for
status
and
activity.
Below
the
data
inputs
are
the
Ethernet
Link
and
Activity
LEDs.
Above
the
eSATA
port
are
the
SSD
drive
status
indicators.
They
will
flash
green
for
activity
on
each
of
the
four
SSD
drives.
The
CMS
Status
LED
functions
are
listed
in
the
table
below.
LED
Name
Function
Notes
Power
Power
is
at
the
CMS-­‐2200
Status
Ready
The
CMS
is
ready
and
functional
Sync
Drives
1-­‐4
SSD
Drive
Activity
Green
when
in
use.
IN
ACT
A
–
B
Data
Input
Activity
LEDs
Ethernet
port
activity
Link
A
-­‐
B
Data
Input
Link
LEDs
Ethernet
port
link
Table
3-­‐3.
LED
functions
The
reset
button
is
be
used
to
reset
the
CMS-­‐2200.
In
normal
operation
reset
should
not
be
used
and
is
not
required.
Reset
will
force
a
hard
reset
of
the
IMB,
the
ISS,
and
all
processors
in
the
hardware.

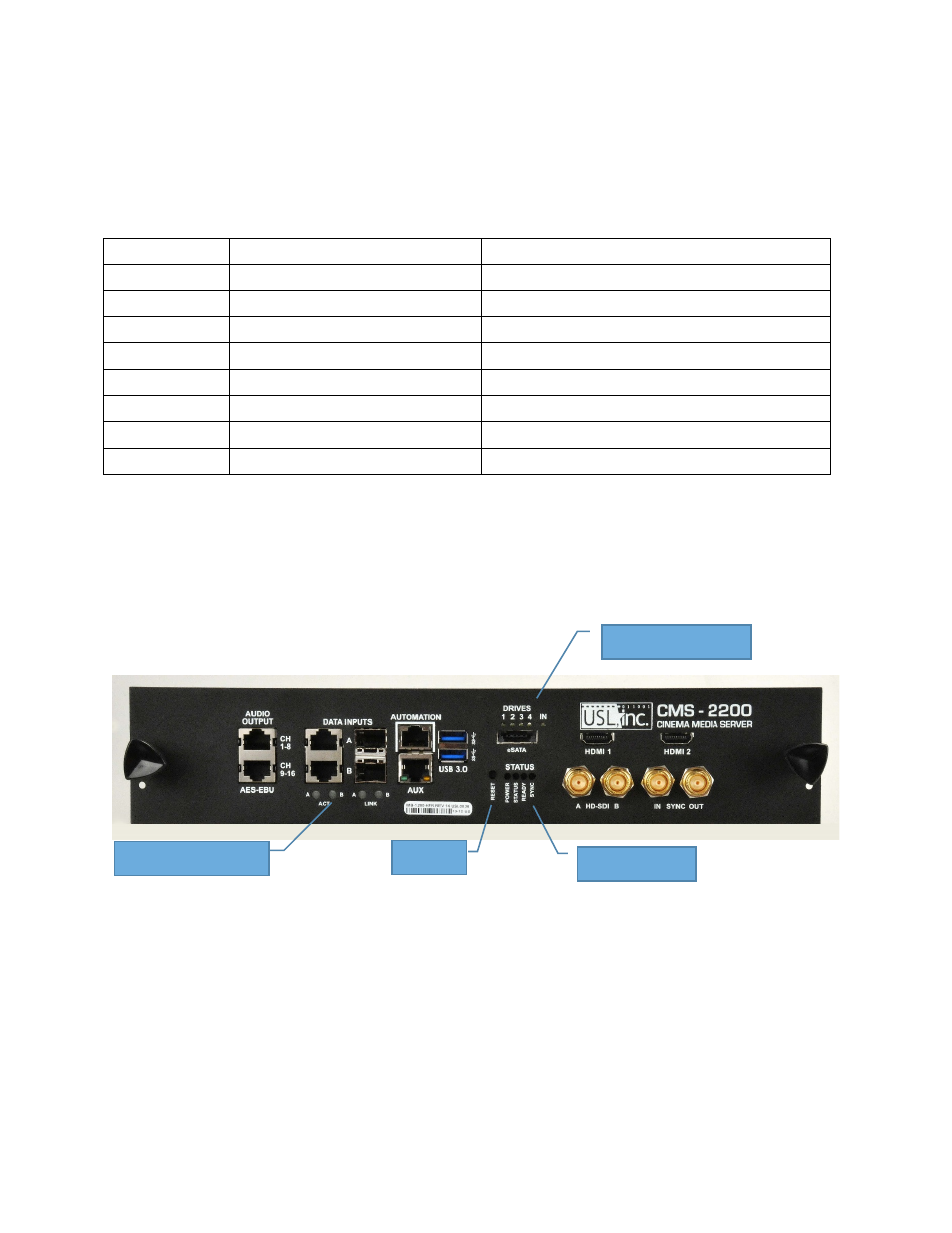

Figure
2-­‐5.
Status
LEDs
and
Reset
SSD
Drive
Status
Reset
CMS
Status
Ethernet
Activity
