4.0 Screen Management System (SMS)
Opening the SMS
The
USL
screen
management
application
is
opened
via
the
SMS
application
icon,
which
may
be
placed
on
the
desktop
or
toolbar.
The
SMS
application
will
open
to
the
Overview
screen
shown
in
Figure
3-­‐1.
For
the
application
to
discover
and
connect
to
CMS-­‐2200
systems
it
must
be
on
the
management
network
with
the
CMS-­‐2200
units.
The
Discover
tab
allows
the
SMS
application
to
discover
all
CMS-­‐2200
units
currently
located
on
a
network.
To
start
the
discovery
process,
enter
a
starting
and
ending
IP
address
into
the
address
boxes.
In
Figure
3-­‐1
the
starting
IP
is
shown
as
10.204.48.0
and
the
ending
IP
is
10.204.48.255.
Four
CMS-­‐2200
units
have
been
discovered
and
are
shown
with
their
IP
addresses.
Clicking
the
Start
button
will
initiate
a
scan
of
all
of
the
IP
addresses
in
the
range.
Any
CMS-­‐2200
units
located
in
this
IP
address
range
will
be
identified.
The
Stop
button
may
be
used
to
terminate
the
scan
early
if
desired.
Below
the
Discover
box,
are
two
buttons
used
to
complete
the
process.
The
Add
Selected
button
will
add
a
specific
CMS-­‐2200
and
the
Add
All
button
will
automatically
add
all
of
the
discovered
media
servers.

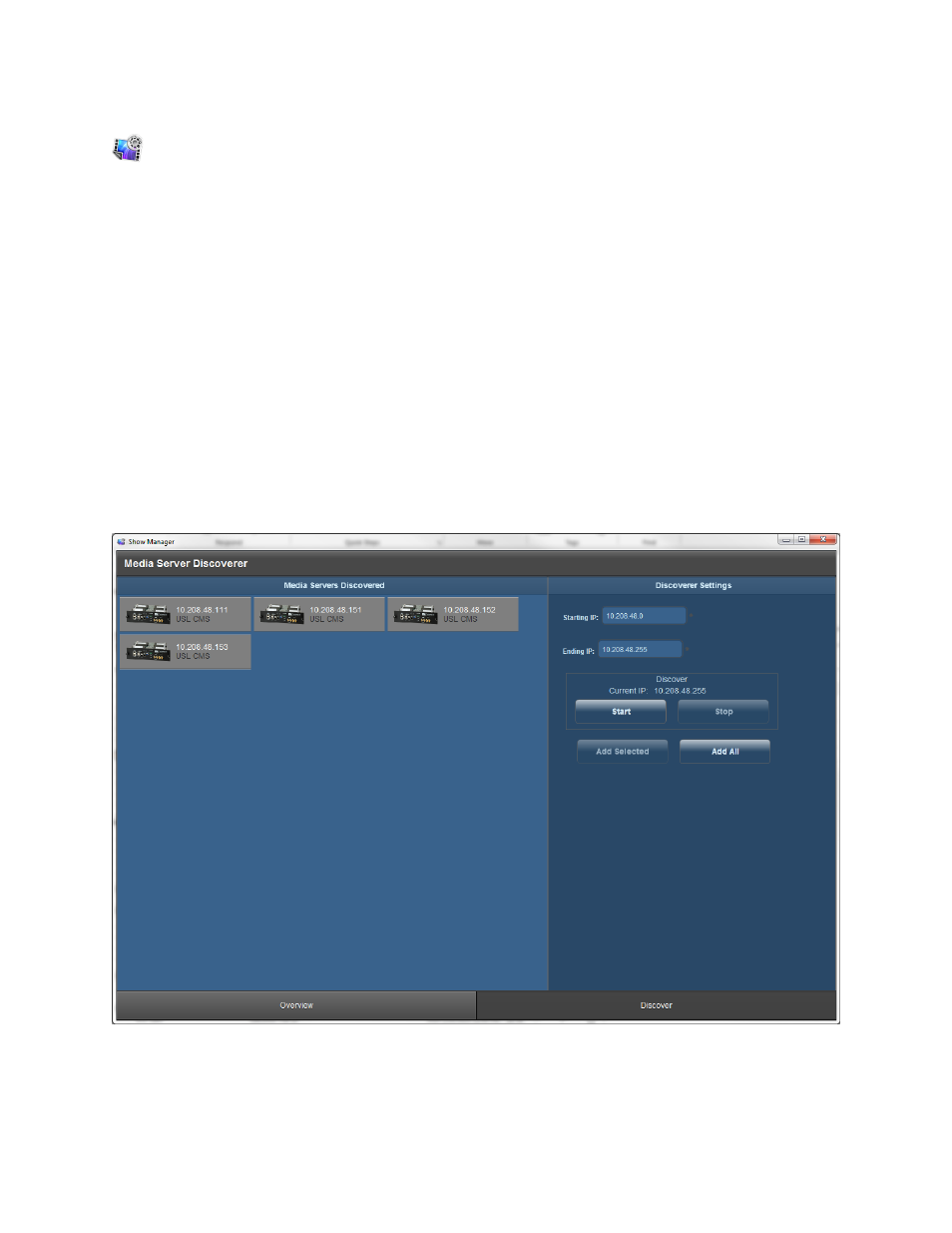

Figure
4-­‐1.
SMS
Discovered
Servers
