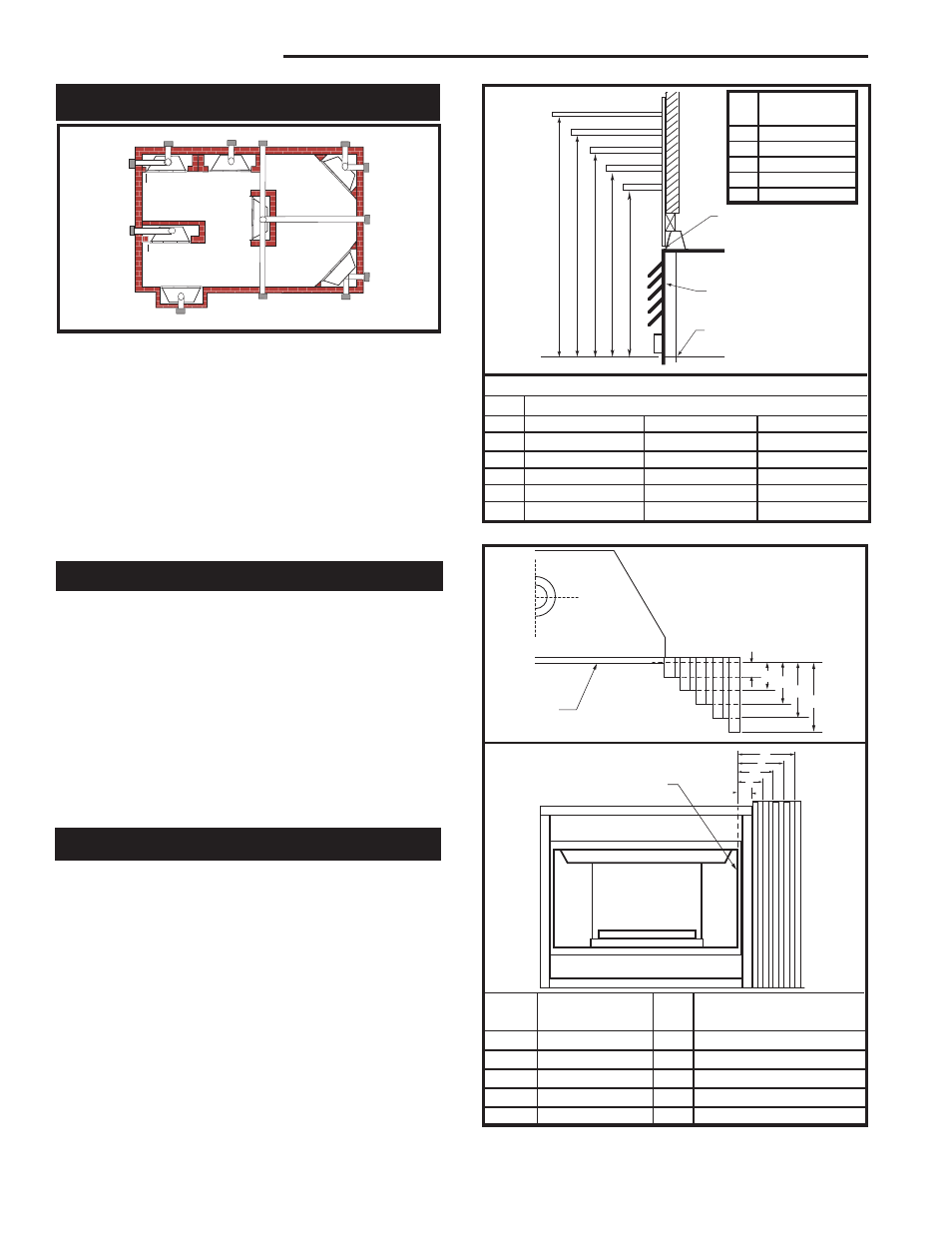

XDV Direct Vent Gas Fireplace
6 10009383
Top of Unit to Ceiling ................................36” (914 mm)
Front of Unit to Combustibles ...................36” (914 mm)
Appliance
Top of Standoff .........................................0” (0 mm)
Bottom ......................................................0” (0 mm)
Side ..........................................................0” (0 mm)
Back .........................................................0” (0 mm)
Venting
Concentric sections of DV Vent ....................1” (25 mm)
Nonconcentric sections of DV Vent
Sides and Bottom ...................................1” (25 mm)
Top .........................................................2” (51 mm)
Clearance to Combustibles
Mantels
The height that a combustible mantel is fitted above the
fireplace is dependent on the depth of the mantel. This
also applies to the distance between the mantel leg (if
fitted) and the fireplace.
For the correct mounting height and widths refer to
Figs. 4a and 4b, and the following Mantel Charts.
The fitting of a bay window trim kit does not effect
the distances and reference points referred to in the
diagram and chart.
Noncombustible mantels and legs may be installed
at any height and width around the appliance. When
using paint or lacquer to finish the mantel, such paint or
lacquer must be heat resistant to prevent discoloration.
CFM170
J
F
G
H
I
Mantel
Leg
CFM164a
Mantel Leg Chart
06/22/01 sta
Black
Surround
Face
CFM170
DV Builder Front
View
O
N
M
L
K
Side of
Combustion Chamber
CFM164a
Mantel Mantel Leg FromSide
Ref. Leg Depth Ref. of Comb. Opening
F 10” (254 mm) K 11¹⁄₂” (292 mm)
G 8” (203 mm) L 9¹⁄₂” (241 mm)
H 6” (152 mm) M 7¹⁄₂” (191 mm)
I 4” (101 mm) N 5¹⁄₂” (140 mm)
J 2” (51 mm) O 3¹⁄₂” (89 mm)
Fig. 4b Combustible mantel leg minimum installation.
CFM146
A B C D E
V
W
X
Y
Z
Fireplace
CFM146
DV Mantel Chart
7/5/01 sta
Louvre Assembly
Top
Top of Combustion
Chamber
Mantel Chart
Fig. 4a Combustible mantel minimum installation.
Maintain minimum 3/4”
(19 mm) clearance to
combustible
Mantel Shelf
Ref. or Breastplate
V
10” (254 mm)
W 8” (203 mm)
X 6” (152 mm)
Y 4” (101 mm)
Z 2” (51 mm)
Ref. Mantel from Top of Combustion Chamber
33XDV 36XDV 39XDV
A 18¹⁄₂” (470 mm) 19” (482 mm) 20” (508 mm)
B 16¹⁄₂” (419 mm) 17” (432 mm) 18” (457 mm)
C 14¹⁄₂” (368 mm) 15” (381 mm) 16” (406 mm)
D 12¹⁄₂” (318 mm) 13” (330 mm) 14” (355 mm)
E 10¹⁄₂” (267 mm) 11” (279 mm) 12” (305 mm
A) Flat on wall B) Cross corner C) **Island
D) *Room divider E) *Flat on wall corner F) Chase installation
Y) 6” minimum
NOTE: (Fig. 3)
** Island (C) and Room Divider (D) installation is possible as
long as the horizontal portion of the vent system (X) does not
exceed 20’ (610 cm). See details in Venting Section.
* When you install your fireplace in(D) Room divider or (E)
Flat on wall corner positions (Y), a minimum of 6” (153 mm)
clearance must be maintained from the perpendicular wall and
the front side edge of the fireplace.
Refer to (Y) in Figure 3.
Locating Your Fireplace
Y
E A
B
C
D
F
Y
B
X
LU584-1
Locating unit
2/4/99 djt
LU584-R
Fig. 3 Locate gas fireplace.
