Vermont Casting 36XDV - Manual (Page 30)

XDV Direct Vent Gas Fireplace
30 10009383
�����
��������������
����
Log Rear
LG467

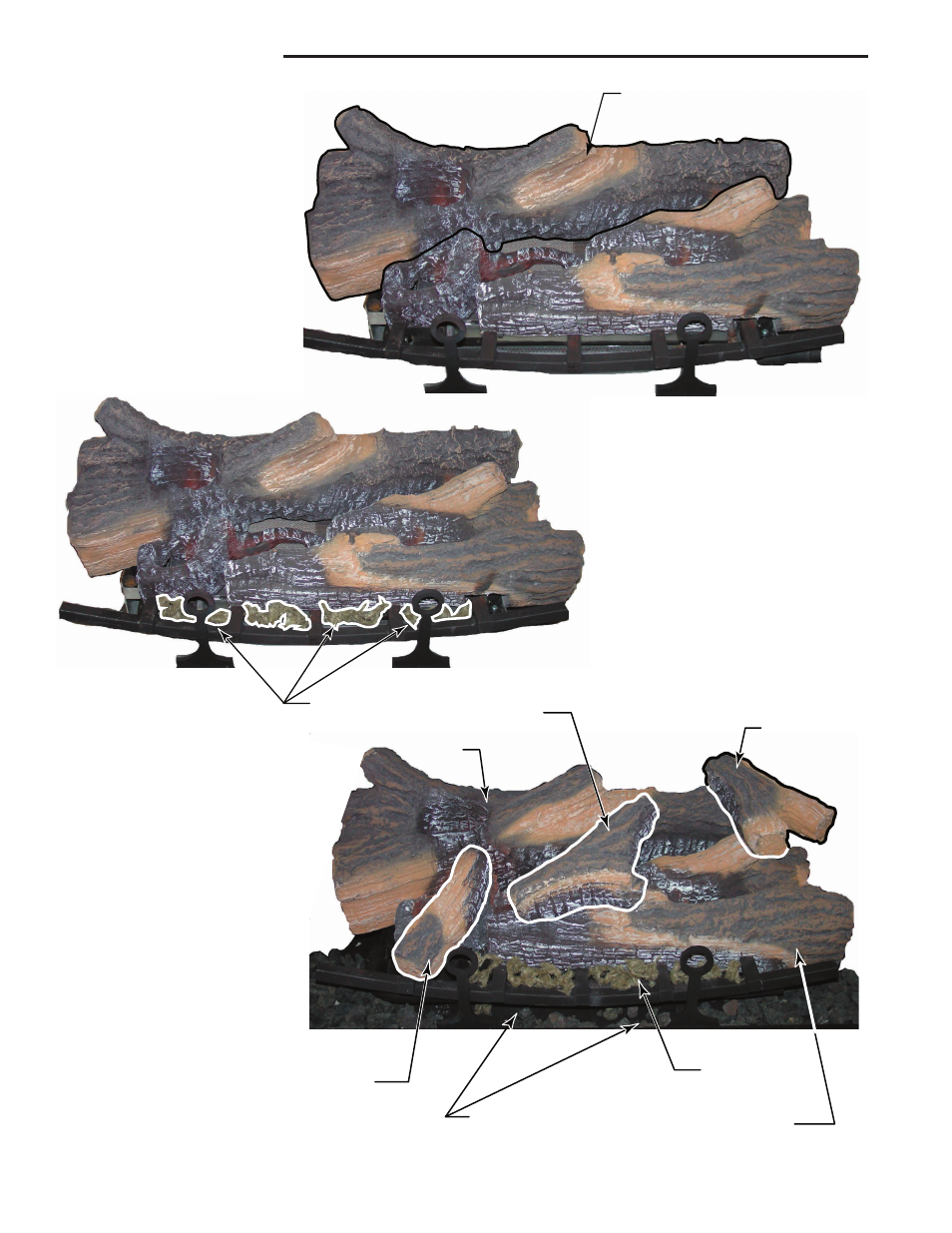

Figure 61 3. Place log rear. The rear log
sits in the firebox at an angle
toward the left over the rear log
bracket and the left side of the
burner. (Fig. 58) Set the log on
the rear log bracket. Slide the
log to the right until the bracket
lines up with the left side of the
notch on the rear log. Swing
the left end of the log toward
the front until it makes contact
with the stop bracket. (Fig. 61)
�����
���������
����
Glowing Embers
LG468
Figure 62
4. Place the glowing embers by build-
ing them up lightly between the fettle
and the burner tube assembly. (Fig.
62)
5. Place the log front left. Set the log
by matching the square hole on the
bottom with the pins on the overlay.
The right side of this log should
come in contact with the left andiron.
Lay the log at an angle to the left
over the fettle. When this log is in
place, it must not cover the front left
opening of the overlay. (Fig. 63)
6. Place the log top center. Hold the
log with the pointed end toward
the back. Match the two holes on
the bottom of the log with the two
pins on the top of the log front
right. Set the log and lay it into
the rear log. (Fig. 63)
7. Place the log top right. Hold
the log with pointed end to the
left. Match the two holes on the
bottom of the log with the two
pins on the rear log and set the
fork on the log over the right
front log. (Fig. 63)
8. Place the lava rock on the
hearth refractory in the front as
desired. (Fig. 63)
�����
����������
����
Log Top
Center
Log Top Right
Log Rear
Log Front
Left
Glowing Embers
Log Front Right
LG469
Figure 63
Lava Rock
