XDV Direct Vent Gas Fireplace
Remote Controls
Optional remote control units are available to control dif-
ferent functions of the appliance. (For use on R Models)
Model Functions Controlled
RC1 ON/OFF
RC2 ON/OFF and Temperature
IMTFK Wall mounted thermostat control
Ceramic Refractory Panels
Unit Kit Model and Finishings
Sandstone Red Black Grey
33XDV GAHC3I0 GAFC3I0 GABC3I0 GAGC3I0
36XDV GAHC3J0 GAFC3J0 GABC3J0 GAGC3J0
39XDV GAHC3K0 GAFC3K0 GABC3K0 GAGC3K0
Take care when handling the refractory
panels as they are fragile until held in place
and supported.
Installation Instructions
1. Remove window frame assembly and logs.
2. Remove three (3) screws securing heat shield to
combustion dome. (Fig. 92)
3. Place rear ceramic panel in back of unit. (Fig. 93)
4. Place side panels.
5. Re-install heat shield, logs and window frame as-
sembly.
H103
heat shield
3/1/99 djt
Heat Shield
Section A
Heat
Shield
(3)
Screws
Side View
Section A
H103

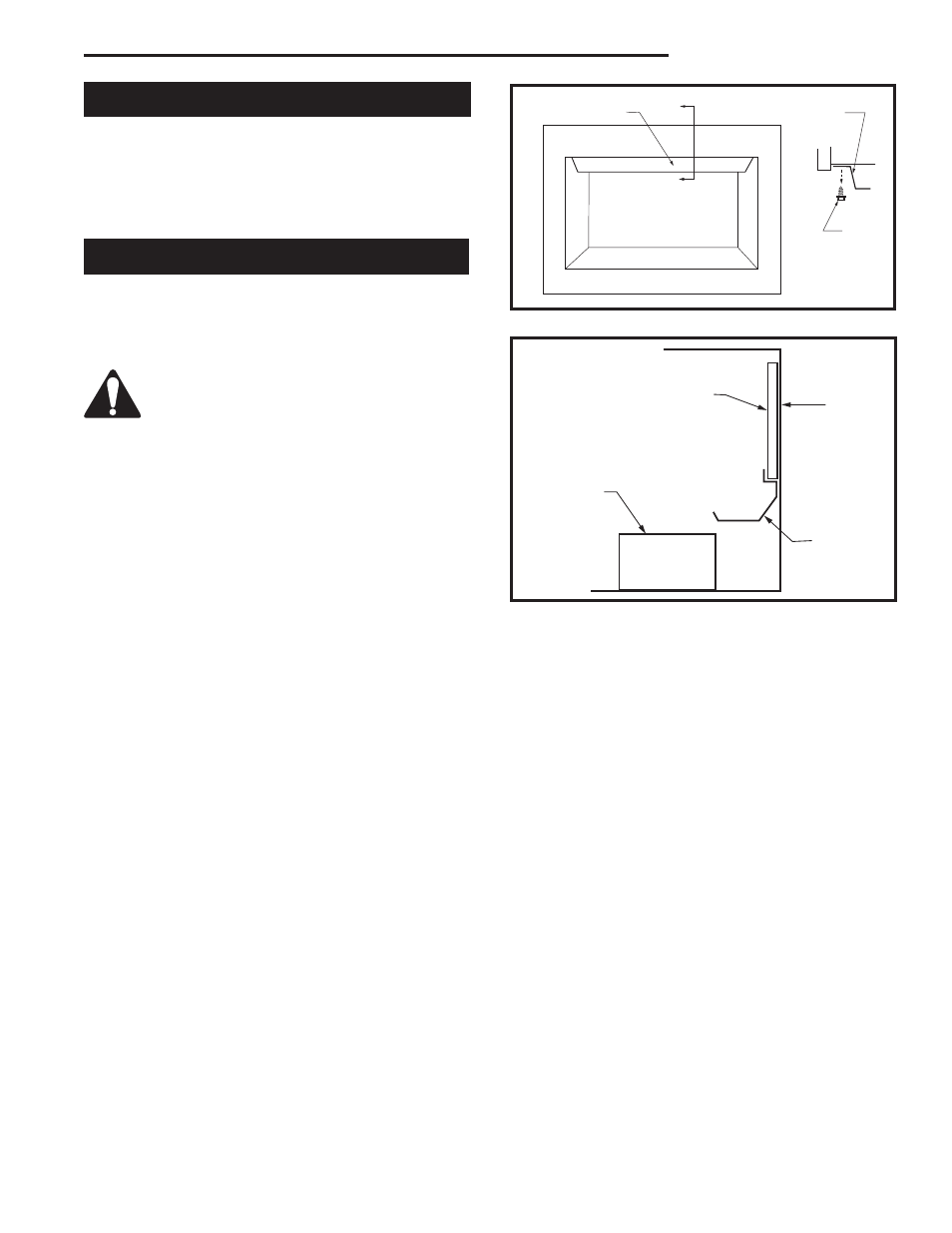

Fig. 92 Heat shield.
H102
rear ceramic support
2/23/99 djt
Rear
Ceramic Panel
Burner
Back of
Firebox
Rear Log
Support
H102
Fig. 93 Rear ceramic panel placement.
