XDV Direct Vent Gas Fireplace
28 10009383
�����
������������������
����

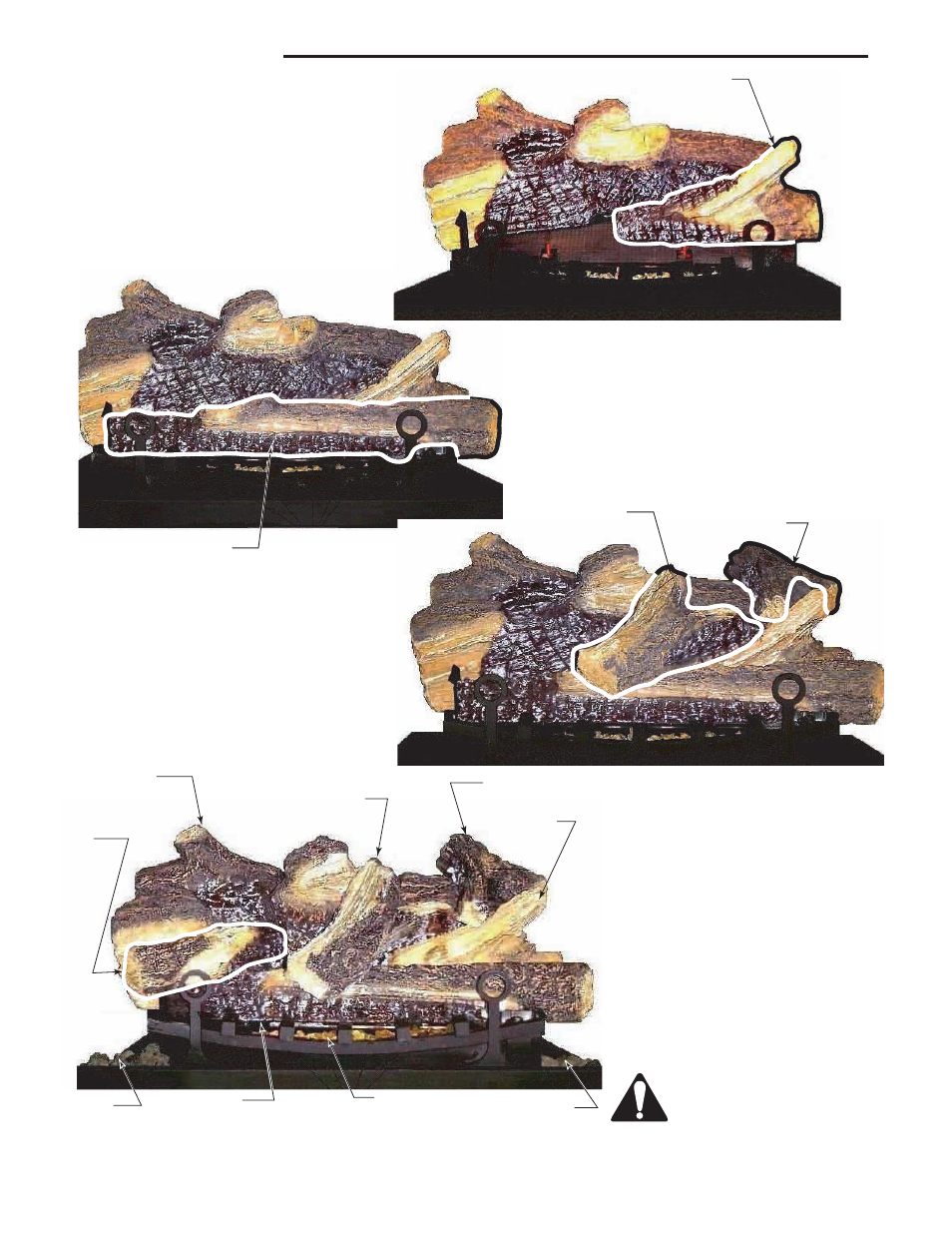

Log Front
(B155)
LG950
Figure 55
2. Place the log, center right (B153). Place the
two underside holes of the log over the two
pin studs of the bracket support center log on
the right. (Fig. 54)
�����
������������������
����
Log Center Right
(B153)
LG949
Figure 54
3. Place the log, front (B155). Place the two
underside holes of the log over the two
pin studs of the bracket front log support
located at the front of the burner hous-
ing. (Fig. 55)
�����
�������������������
����
Log Cross Over
Center (B156) Log Top Right
(B154)
LG951
Figure 56
4. Place the log, top right (B154). Place the bottom
round hole onto the pin of the rear log at the
right. The cross section of the log will rest on top
of the center right log. (Fig. 56)
5. Position the log, cross over center (B156) by
locating the bottom rectangular slot of this log
onto the front log center knob. The other end of
the log with the bottom round hole will set on top
of the rear log center pin. (Fig. 56)
6. Place the log, front left (B157).
Place the bottom rectangular slot
of this log onto the knob of the
front log at the left. (Fig. 57)
7. Place ember material on top of
front burner. Ensure separating
the ember material into small
pieces approximately 1/2” diam-
eter and keep 1/2” space between
the ember pieces. (Fig. 57)
8. Place large lava rock onto the two
sides of the burner tray as shown
in Figure 57.
Do not place any of the
lava rock material on the
burner housing assembly.
�����
��������
����
Log Rear
(B152)
Log Cross Over
Center (B156)
Log Right Top
(B154)
Log Center
Right (B153)
Volcanic Lava
Rock
Ember Material
Log Front
(B155)
Volcanic
Lava Rock
Log Left
Top (B157)
LG952
Figure 57
