XDV Direct Vent Gas Fireplace
26 10009383
�����
����������������������
����
Log Center Right (A51)
LG955

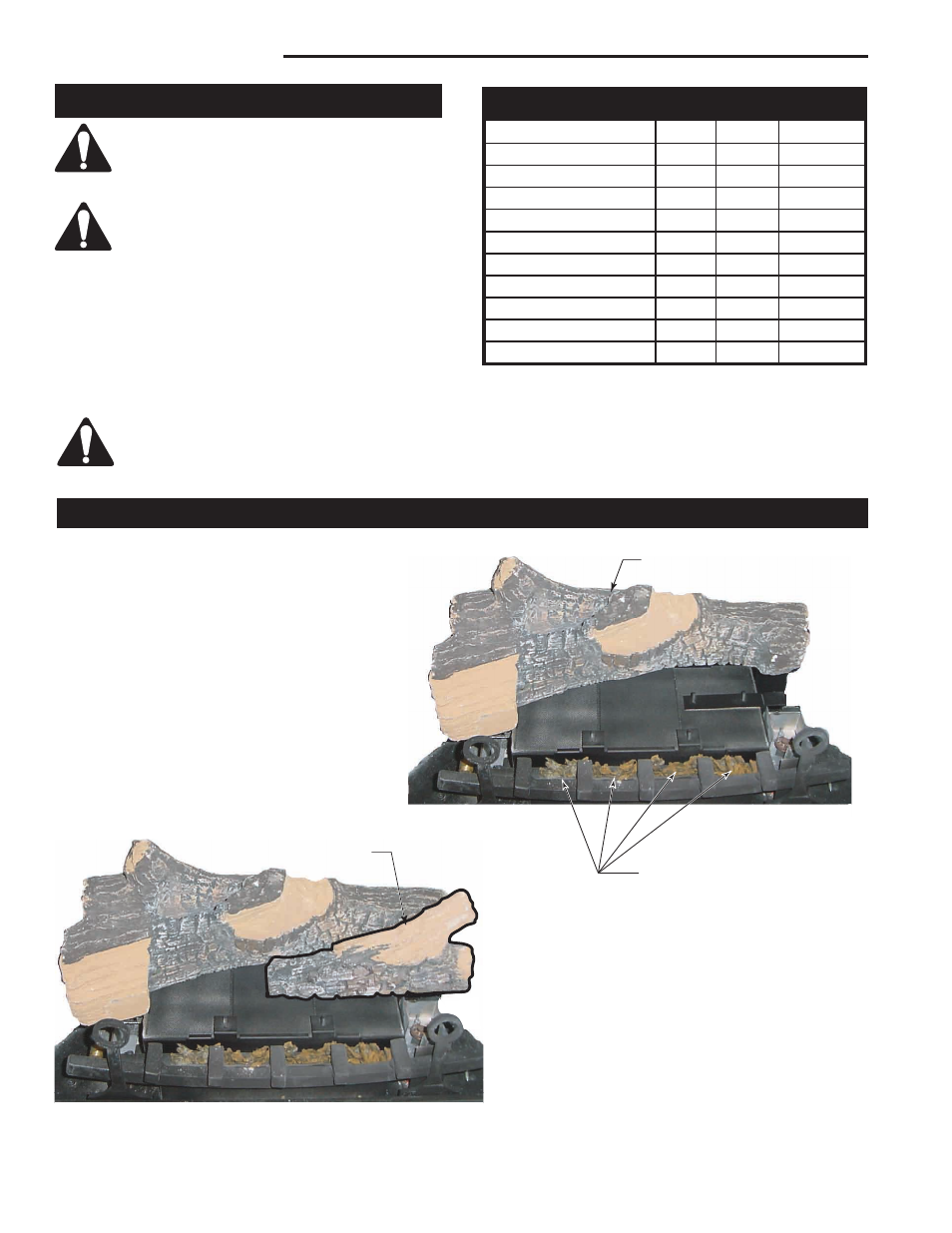

Figure 50
Installation of Logs
The logs are fragile and should be handled
with care. Keep the packaging material out
of the reach of children and dispose of the
mterial in a safe manner.
The individual logs can be easily identified
by the numbers cast on the underside of
each log.
LOGS 33XDV 36XDV 39XDV
Log Rear A49 B152 20010994
Log Center Right A51 B153 --
Log Right Top A52 B154 20010995
Log Front A50 B155 --
Log Cross Over Center A53 B156 --
Log Left Top A54 B157 --
Log Top Center -- -- 20010677
Log Front Right -- -- 20010672
Log Front Left -- -- 20010996
Log Overlay -- -- 20010674
Log Identification Chart
1. Remove the top louvre assembly.
2. Open the bottom louvre.
3. Remove the window frame assembly.
4. Remove log box from inside firebox.
5. Unpack the logs from packaging and remove each
log from its wrapping material. Set aside the ember
and the lava rock bags.
As with all plastic bags - these are not toys
and should be kept away from children and
infants.
33XDV
�����
���������������
����
Log Rear (A49)
Ember Material
LG954
Figure 49
1. Place ember material on top of front
burner. Separate the ember material
into small pieces approximately 1/2” in
diameter and keep 1/2” space between
the ember pieces. (Fig. 49)
2. Place the log rear (A49) over the rear
log bracket. Align the underside hole on
the left to sit over the pin stud pointing
up on the rear log bracket. Push the
right side of the log against the back.
(Fig. 49)
3. Place the log center right (A51). Place
the two underside holes of the log over
the two pin studs of the bracket on the
right side of the burner housing. (Fig. 50)
