XDV Direct Vent Gas Fireplace
4 10009383
Ref. 33XDV 36XDV 39 XDV
A 33” (838 mm) 36” (914 mm) 39” (991 mm)
B 28⁷⁄₈” (733 mm) 34¹⁄₄” (870 mm) 34¹⁄₄” (870 mm)
C 31¹⁄₄” (794 mm) 34¹⁄₄” (870 mm) 37¹⁄₄” (946 mm)
D 18³⁄₈” (466 mm) 23” (584 mm) 23” (584 mm)
E 22³⁄₄” (578 mm) 24” (610 mm) 27” (686 mm)
F 14³⁄₈” (365 mm) 16¹⁄₄” (413 mm) 16¹⁄₄” (413 mm)
G 16³⁄₄” (426 mm) 18³⁄₄” (476 mm) 18³⁄₄” (476 mm)
H 19³⁄₁₆” (487 mm) 24¹⁄₄” (616 mm) 24¹⁄₄” (616 mm)
I 22¹¹⁄₁₆” (576 mm) 28¹⁄₈” (714 mm) 28¹⁄₈” (714 mm)
J 4⁵⁄₈” (118 mm) 5⁵⁄₈” (143 mm) 5⁵⁄₈” (143 mm)
K 6³⁄₈” (160 mm) 8” (203 mm) 8” (203 mm)
L 8⁷⁄₈” (225 mm) 11⁷⁄₈” (302 mm) 11⁷⁄₈” (302 mm)
M 2” (51 mm) 2” (51 mm) 2” (51 mm)
N 3³⁄₈” (85 mm) 3¹⁄₄” (82 mm) 3¹⁄₄” (82 mm)
O 4⁵⁄₈” (118 mm) 6³⁄₄” (171 mm) 6³⁄₄” (171 mm)
P 6³⁄₈” (162 mm) 9¹⁄₄” (235 mm) 9¹⁄₄” (235 mm)
Framing Dimensions
S 36” (914 mm) 41⁵⁄₈” (1057 mm) 44” (1118 mm)
T 51” (1295 mm) 58⁷⁄₈” (1495 mm) 62¹⁄₄” (1581 mm)
U 25¹⁄₄” (641 mm) 29⁷⁄₈” (748 mm) 31¹⁄₈” (790 mm)
V 33¹⁄₂” (851 mm) 36¹⁄₂” (927 mm) 39¹⁄₂” (1003 mm)
W 31” (787 mm) 38⁵⁄₈” (980 mm) 38⁵⁄₈” (980 mm)
X 14⁷⁄₈” (378 mm) 16³⁄₄” (426 mm) 16³⁄₄” (426 mm)
V - Rough Opening Width
7" Dia.
4" Dia.
Rough
Opening
Height
Rough
Opening
Depth
Recessed
Nailing
Flange
(178mm)
(102mm)
S
S
T
C
W
B
A
E
D
F
X
I
J
K
H
U
B
L
O
P
G
5/8" (16mm)
M
N
5/8" (16 mm)
Gas Line
Access
Low Voltage
Electrical
Access
M
Electrical
Access
Low Voltage
Electrical
Access
Gas Line
Access
7920
XDV rear specs
2/05

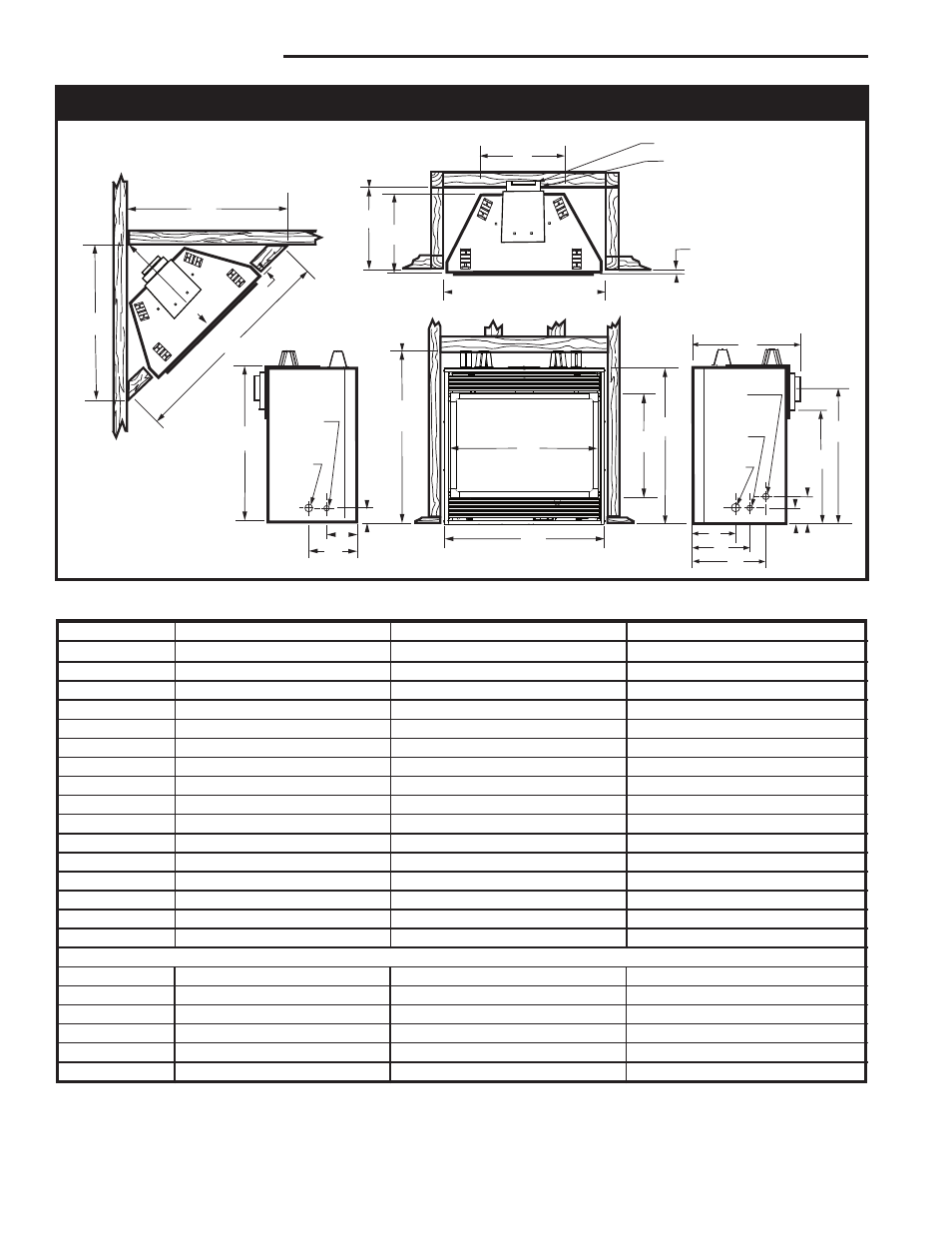

XDV Fireplace Dimensions - Installed as Rear Vent
Fig. 1 Fireplace specifications and framing dimensions.
