XDV Direct Vent Gas Fireplace
36XDV

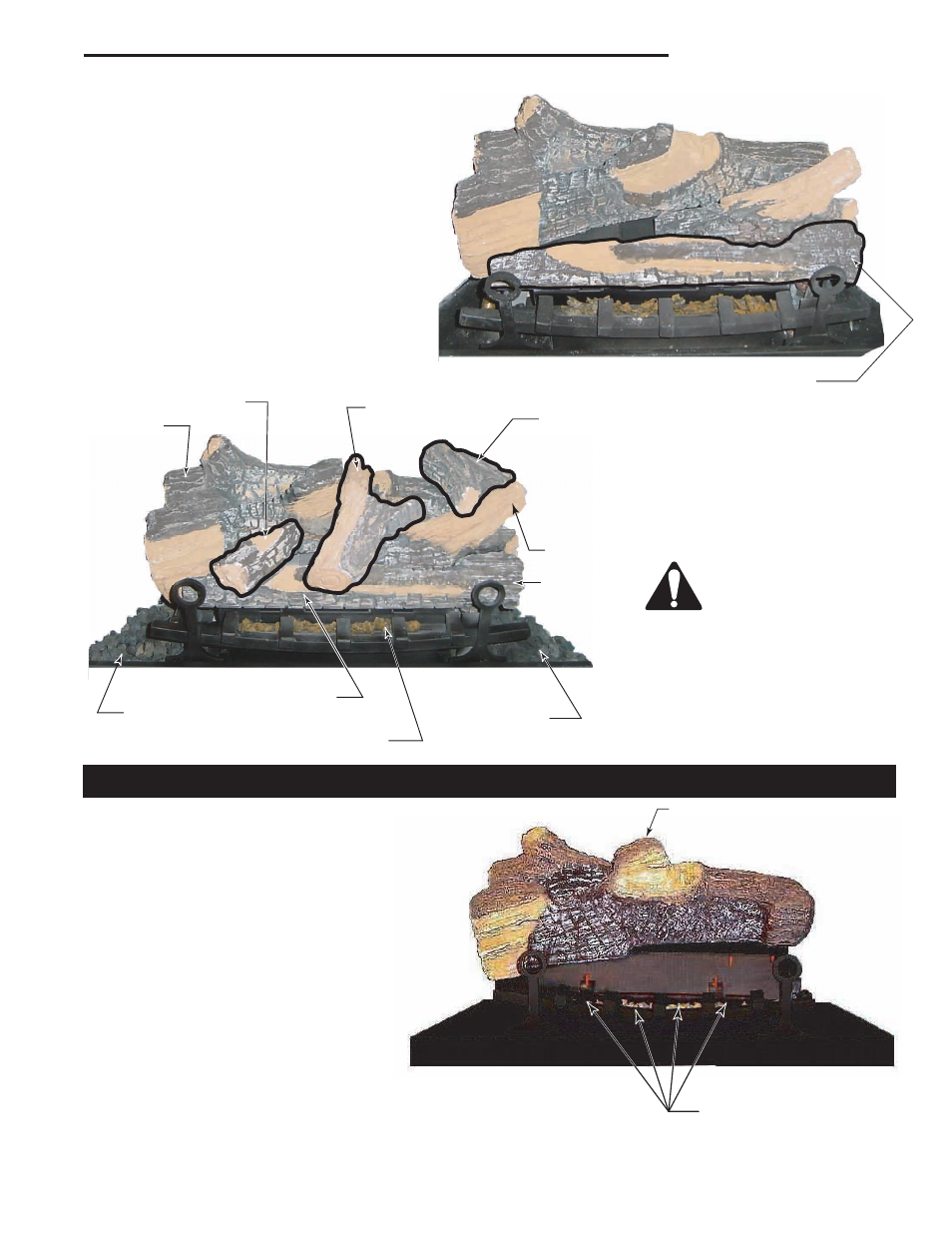

4. Place the log front (A50). Place the two
underside holes of the log over the two pin
studs of the bracket located at the front of the
burner housing. (Fig. 51)
5. Place the log top right (A52). Place the bot-
tom round hole onto the knob at the right side
of the rear log. The cross section of the log
will rest on top of the center right log. (Fig. 52)
6. Position the log cross over center (A53) by
locating the bottom rectangular slot of this
log onto the knob at the center of the front
log. The other end of the log, with the bottom
round hole, will be on the knob located on the
top center of the rear log. (Fig. 52)
�����
���������������
����
Log Front (A50)
LG956
Figure 51
7. Place the log left top (A54). Place
the bottom rectangular slot of this
log onto the knob at the left side
of the front log. (Fig. 52)
8. Place large lava rock onto the
two sides of the burner tray as
shown in Figure 52.
Do not place any of the
lava rock material on the
burner housing assem-
bly.
Log Cross Over
Center (A53)
�����
����������
����
Log Left Top
(A54)
Log Top
Right (A52)
Log Front (A50)
LG958
Lava Rock
Ember Material
Log Rear
(A49)
Lava Rock
Log Center
Right (A51)
Figure 52
�����
��������
����
Log Rear
(B152)
LG948
Figure 53
Ember Material
1. Place the log rear (B152). Place the two
underside holes of the log over the two
pins studs of the rear log bracket. (Fig. 53)
