Step 4. Set the Central unit's functions as follows:

• Delegate unit ON/OFF switch and In-use delegate unit number selector

Only set both switch and selector of the MAIN Central unit. (This setting takes effect regardless of the

switch settings of the other EXPANSION Central Units.)

• Automatic Mic-Off Setting Switch

Perform the same setting for all connected Central units.

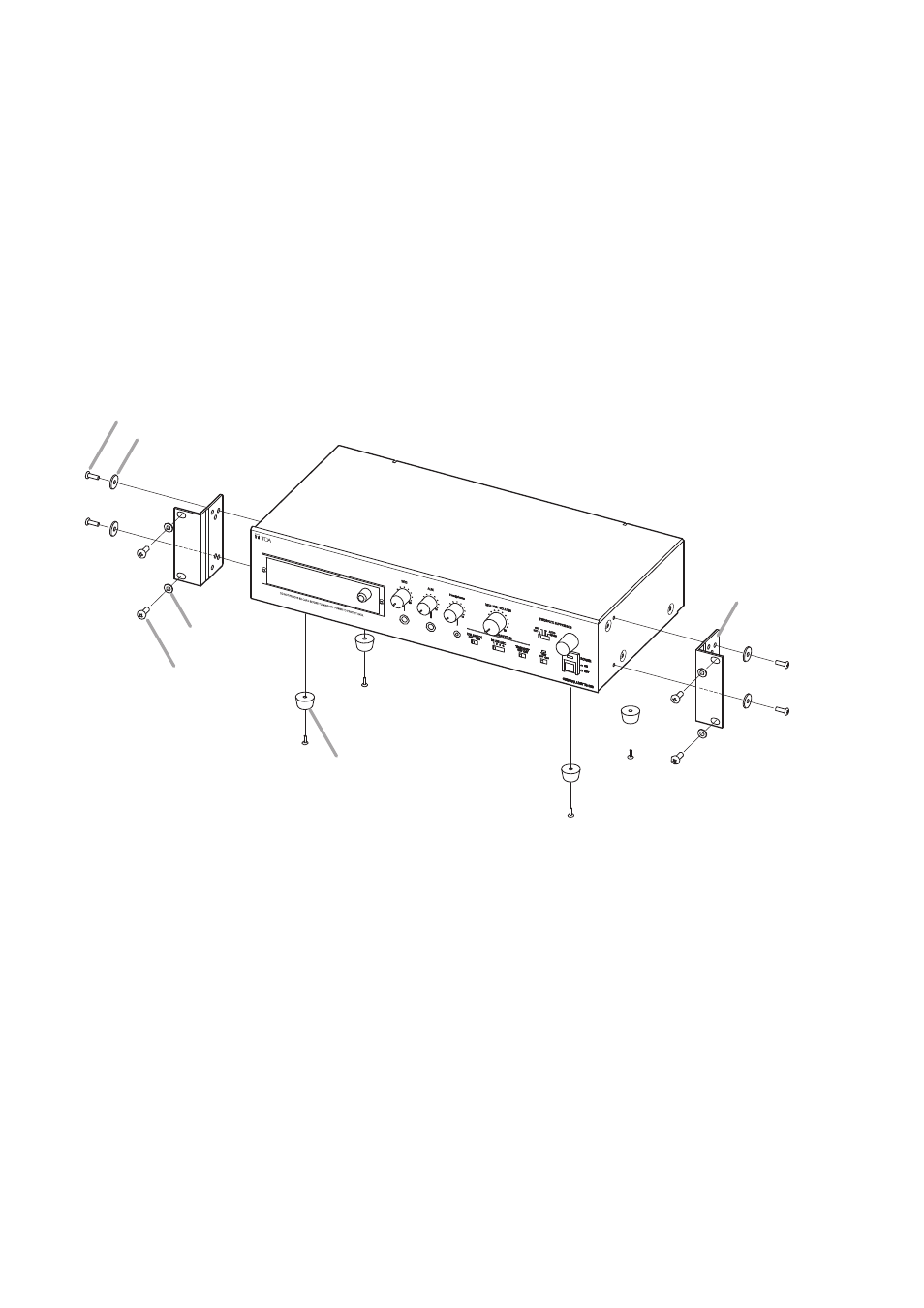

TS-780

Machine screw M4 x 12*

Plain washer (for M4)*

Fiber washer

(for M5)*

Rack mounting

screw 5 x 12*

* Supplied with the MB-23B

MB-23B Rack

mounting bracket

Rubber foot

10. IF MOUNTING A CENTRAL UNIT IN A RACK

Step 1. Remove the rubber feet from the bottom of the unit.

Step 2. Mount the unit in a rack using the optional MB-23B Rack mounting bracket.
