Toa TS-780 Series - Manual (Page 48)

48
9. IF USING MULTIPLE CENTRAL UNITS
Up to 3 Central Units and up to 192 conference units can be connected per system.
Note
Match the setting for Automatic Mic-off function among Central units. If differently set, these function will not
work correctly.
Step 1. Perform connections and adjustments for each Central unit.
Follow Steps 1 – 10 on pages p. 44 – p. 47 for each Central unit.

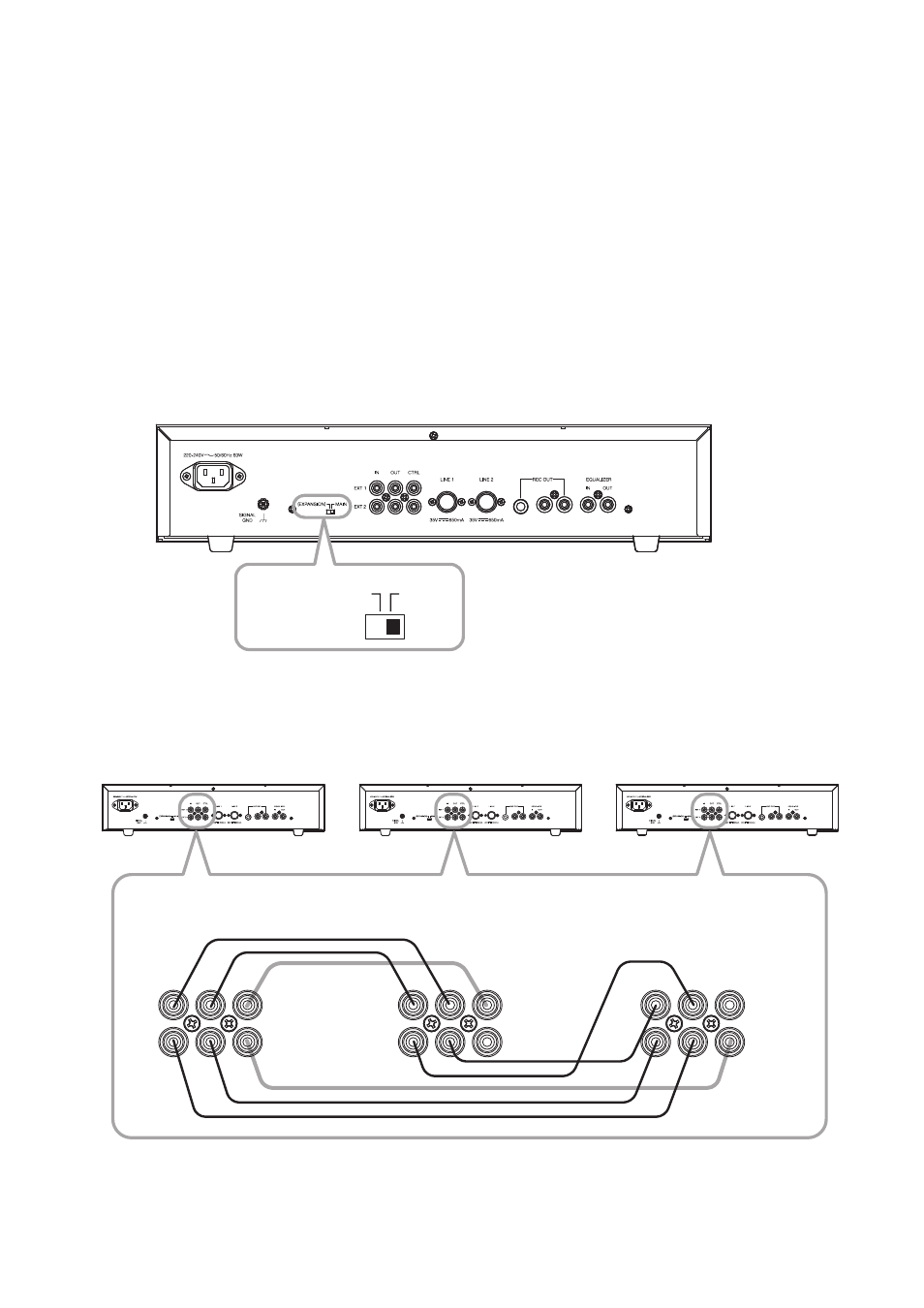

Step 2. Set the Central unit's rear-mounted Expansion switch.
Set the Expansion switch of one of the connected Central units to MAIN, and the remaining Central
units to EXPANSION.
Step 3. Make connections between Central units.
Connect the Expansion IN-OUT terminals mutually between Central units, as shown below. Note that
the CTRL terminal of the Main Central unit must be connected directly to each CTRL terminal of the
Expansion Central unit(s) using a single line.
Note
Because no cables are supplied for connection between Central units, prepare them separately.
Applicable connector: RCA plug
Applicable cable: Single-core shielded cable
TS-780 Central unit
(EXPANSION) MAIN
Expansion switch
(Factory default: MAIN)
TS-780 Central unit
(For the MAIN setting)
TS-780 Central unit
(For the EXPANSION setting)
TS-780 Central unit
(For the EXPANSION setting)
EXT 1
EXT 2
IN OUT CTRL
EXT 1
EXT 2
IN OUT CTRL
EXT 1
EXT 2
IN OUT CTRL
(For the EXPANSION setting)
Expansion IN/OUT terminals
(For the EXPANSION setting)
Expansion IN/OUT terminals
(For the MAIN setting)
Expansion IN/OUT terminals
