40

7.2. Using an External Recording Equipment

The contents of the conference can be recorded by connecting recording equipment to the TS-780 Central Unit,

TS-781 Chairman Unit, or TS-782 Delegate Unit.

7.2.1. Recording with the Central Unit

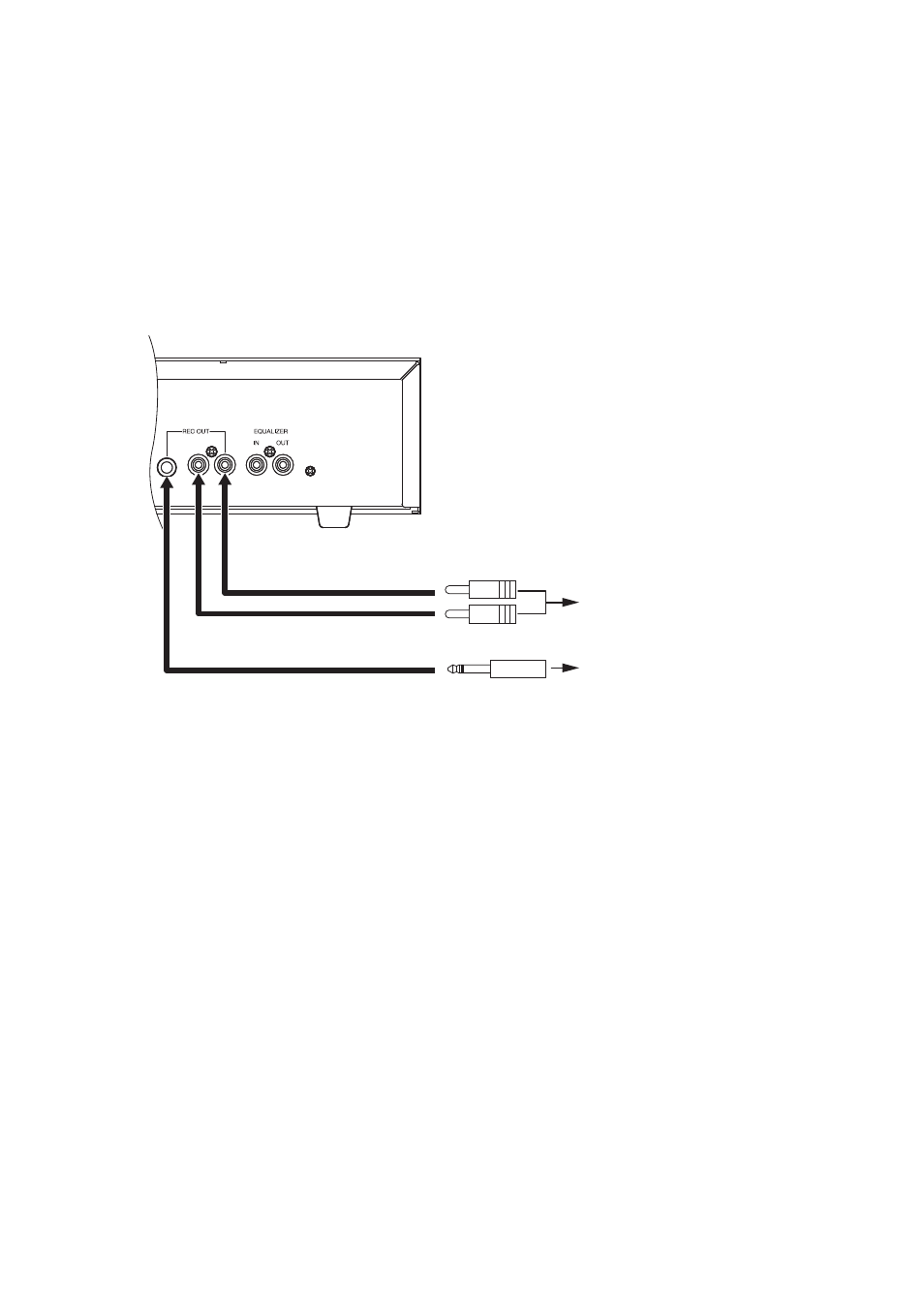

Step 1. Connect the recording output on the rear panel of the TS-780 Central Unit to the recording equipment's

recording input.

There are 2 types of recording output terminals: a phone jack and RCA jacks. Select either type of jack

according to recording equipment to be connected.
Note

Prepare the connection cables separately.

Step 2. Connect a set of headphones into the recording equipment's monitor output to confirm that the contents

of the conference are being recorded correctly.

If the recording equipment is equipped with a recording level control, adjust it to an appropriate

recording level.

For use of recording equipment, refer to the instruction manual supplied with the equipment.

Phone plug

Pin plug

or

To the recording equipment's

recording input terminal

To the recording equipment's

recording input terminal

Recording output terminals

(RCA jacks)

Recording output terminal

(Phone jack)

TS-780 Central Unit
