TeeJet Fieldware Link - Manual (Page 22)

18
www.teejet.com
Fieldware
®
Link 4.02
►Section Width (under Working Width in Matrix Pro GS v3.xx) –
used to enter the width of each section of the implement. Each
section can be a different width. Sections are numbered from left
to right while facing in the machine’s forward direction. Range for
each section is 0.0 to 246.06 feet/ 0.0 to 75.0 meters. Total for all
sections must be greater than 3.28 feet / 1.0 meters.
►Spread Length  – used to enter the length of the application
section for each section. Each section can be a different length.
Sections are numbered from left to right while facing in the
machine’s forward direction. Range is 0.0 to 246.06 feet/
0.0 to 75.0 meters.
►Section Offsets  – used to enter the offset distance from the
leading edge of Section 1 (the spread offset line) to the leading
edge of each section. Section 1 is always 0.0 meters. All other
sections can be a different distances. Sections are numbered
from left to right while facing in the machine’s forward direction.
Range is 0.0 to 246.06 feet/ 0.0 to 75.0 meters.
Job Specific Defaults
►Overlap – used to select the amount of overlap allowed when
the sections are turned on and off while using automatic boom
section control

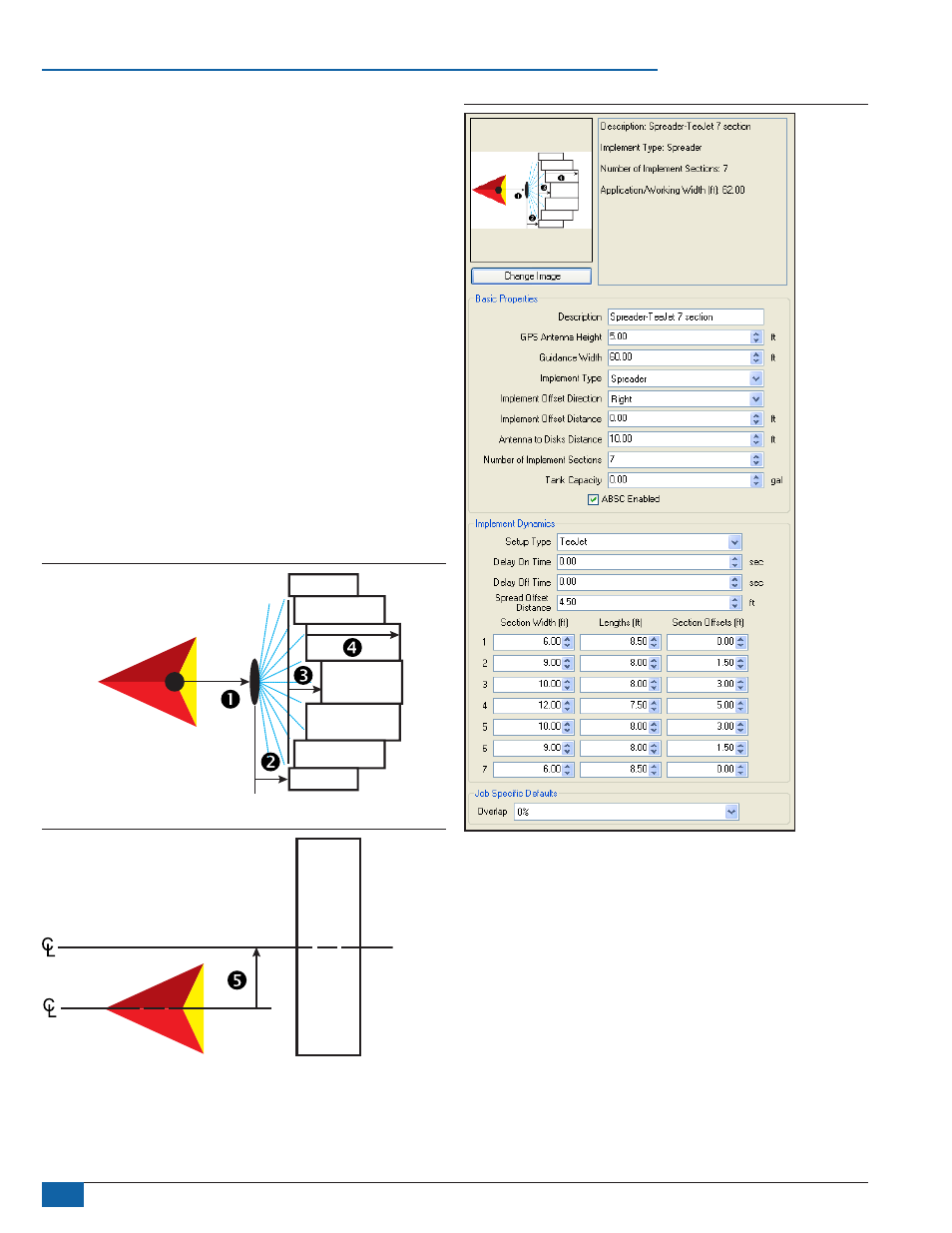

Figure 40: Basic Properties
Figure 41: Implement Offset Distance and Direction
Figure 42: Machine Settings – TeeJet Spreader Implement Type
