PROFILE OVERVIEW
Machine Settings
A Machine Settings profile gives access to details about the vehicle and
implement including:
• Image
• Basic Properties
– Each of these entries can be imported from Machine Settings
from the Matrix Pro GS v3.xx console, user defined or user
edited. Highlight and type over existing information, use the
UP/DOWN arrows or click the DOWN arrow to make
changes.
– Changes to Implement type and ABSC enabled will vary the
available basic properties, Implement dynamics and Job
specific defaults.
NOTE: Changing the description of a Machine Settings profile
does not change how a particular Machine Settings
profile is recognized by your Matrix Pro or Matrix Pro GS
console. If you are attempting to create a new Machine
Settings profile, please create a copy or use the
appropriate new Machine Settings profile option.
• Implement Dynamics
– Each of these entries can be imported from Machine Settings
from the Matrix Pro GS v3.xx console, user defined or user
edited. Highlight and type over existing information, use the
UP/DOWN arrows or click the DOWN arrow to make
changes.
– Changes to Setup Type will vary the available Implement
dynamics.
• Job Specific Defaults
– Each of these entries can be imported from Machine Settings
from the Matrix Pro GS v3.xx console, user defined or user
edited. Highlight and type over existing information, use the
UP/DOWN arrows or click the DOWN arrow to make
changes.
NOTE: Machine Settings are only supported in Matrix Pro v3.xx. An
error will occur when trying to export Machine Settings to the
Matrix Pro v2.xx format.
Implement Type
Implement type selects the type of application pattern that most closely
represents your system.
• In Straight Mode – the boom sections have no length and are on a
line a fixed distance from antenna
• In Spreader Mode – a virtual line is created in line with the delivery
disks from which the application section or sections can vary in
length and can be at different distances from the line
• In Staggered Mode – a virtual line is created in line with section 1
from which the application section or sections have no length and
can be at different distances from antenna
Section Numbers
Sections are numbered from left to right while facing in the machine’s
forward direction.

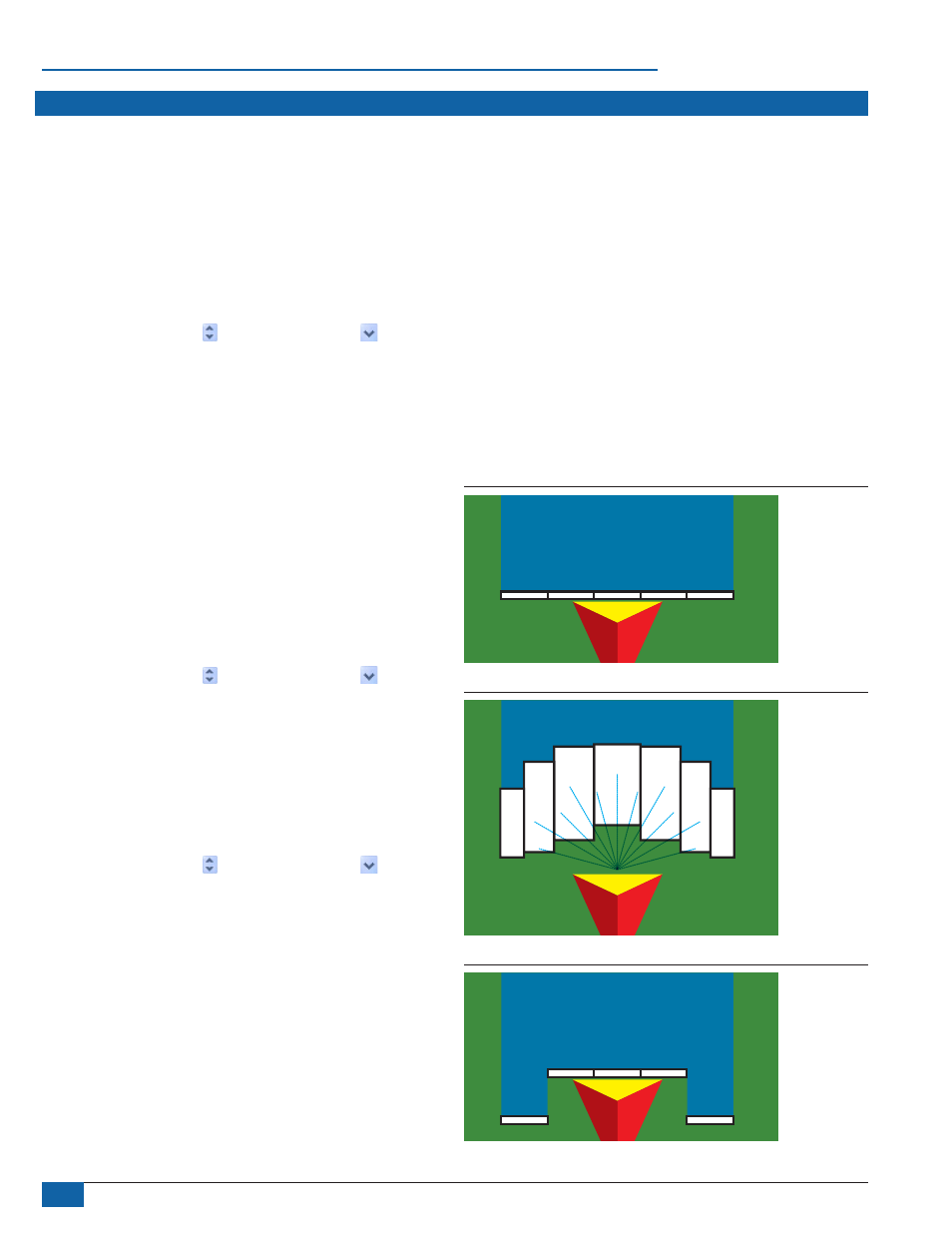

Figure 25: Implement Type - Straight
5 4 3 2 1
Figure 26: Implement Type - Spreader
5
6
7
4 3
2
1
Figure 27: Implement Type - Staggered
5
4 3 2
1
