ABSC Disabled – Single Section Setup
ABSC disabled or single section setup is used when a Smartcable or
Section Driver Module (SDM) is not on the system. The entire boom or
delivery area is considered to be one section.
NOTE: If a Smartcable or Section Driver Module (SDM) is present,
refer to “Smartcable or Section Driver Module setup” to view
setup steps.
Straight Implement Type
Basic Properties
►Description – used to enter the name of the Machine Settings
profile.
►GPS Antenna Height – used to measure the height of the
antenna from the ground. Range is 0.0 to 32.81 feet / 0.0 to
10.0 meters.
►Guidance Width – used to enter the distance between the
guidelines. Range is 3.28 to 246.06 feet / 1.0 to 75.0 meters.
►Implement Type – used to select Straight as the layout of the
sections for the applied product location.
►Implement Offset Direction  – direction from the centerline of
the machine to the center of the implement while facing in the
machine’s forward direction
►Implement Offset Distance  – used to enter the distance from
the centerline of the machine to the center of the implement.
Range is 0 to 32.8 feet / 0 to 10.0 meters.
►Boom Offset Direction – used to select whether the boom is
located in front of or behind the GPS antenna as the vehicle
moves in a forward direction
►Antenna to Boom Distance  – used to enter the distance from
the GPS antenna to the boom. Range is 0.0 to 164.04 feet / 0.0
to 50.0 meters.
►Number of Implement Sections – used to select the number
of implement sections. When ABSC Enabled is unchecked,
Number of Implement Sections is set to one implement section
and is unavailable for editing.
►Tank Capacity – used to enter the capacity of the tank
►ABSC Enabled – used to enable/disable ABSC (Automatic Boom
Section Control) options
• Unchecked – single section setup options will be available
• Checked – Smartcable or SDM setup options will be available
(see “ABSC Enabled – Smartcable or Section Driver Module
Setup” section for details)
Implement Dynamics
►Section Width (under Spray Width in Matrix Pro v2.xx
or Matrix Pro GS v2.xx, or under Application Width in
Matrix Pro GS v3.xx) – used to enter the total width of the
implement.
Job Specific Defaults
There are no available options.

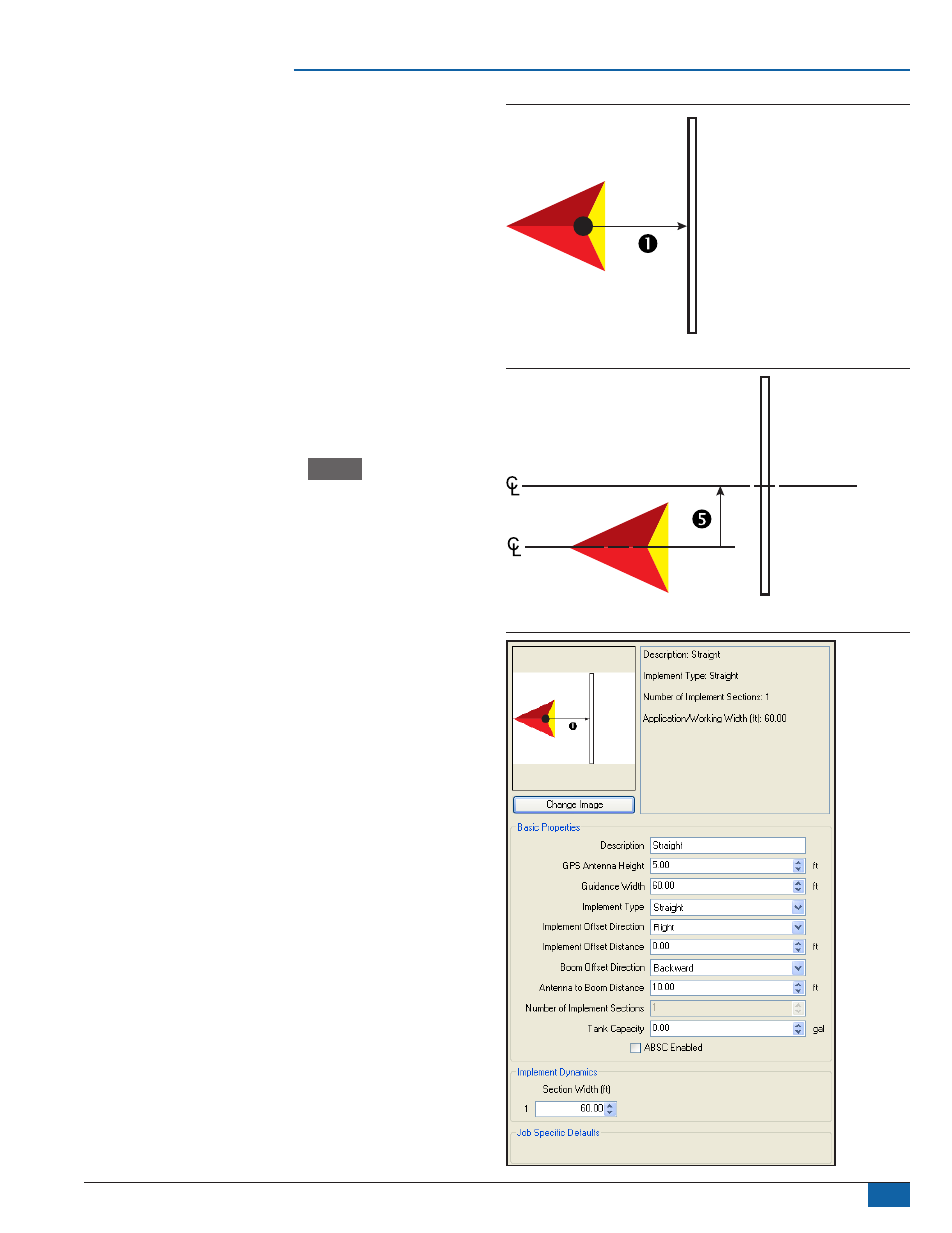

Figure 28: Basic Properties
Figure 29: Implement Offset Distance and Direction
Figure 30: Machine Settings – Straight Implement Type
