Fieldware ® Link 4.02

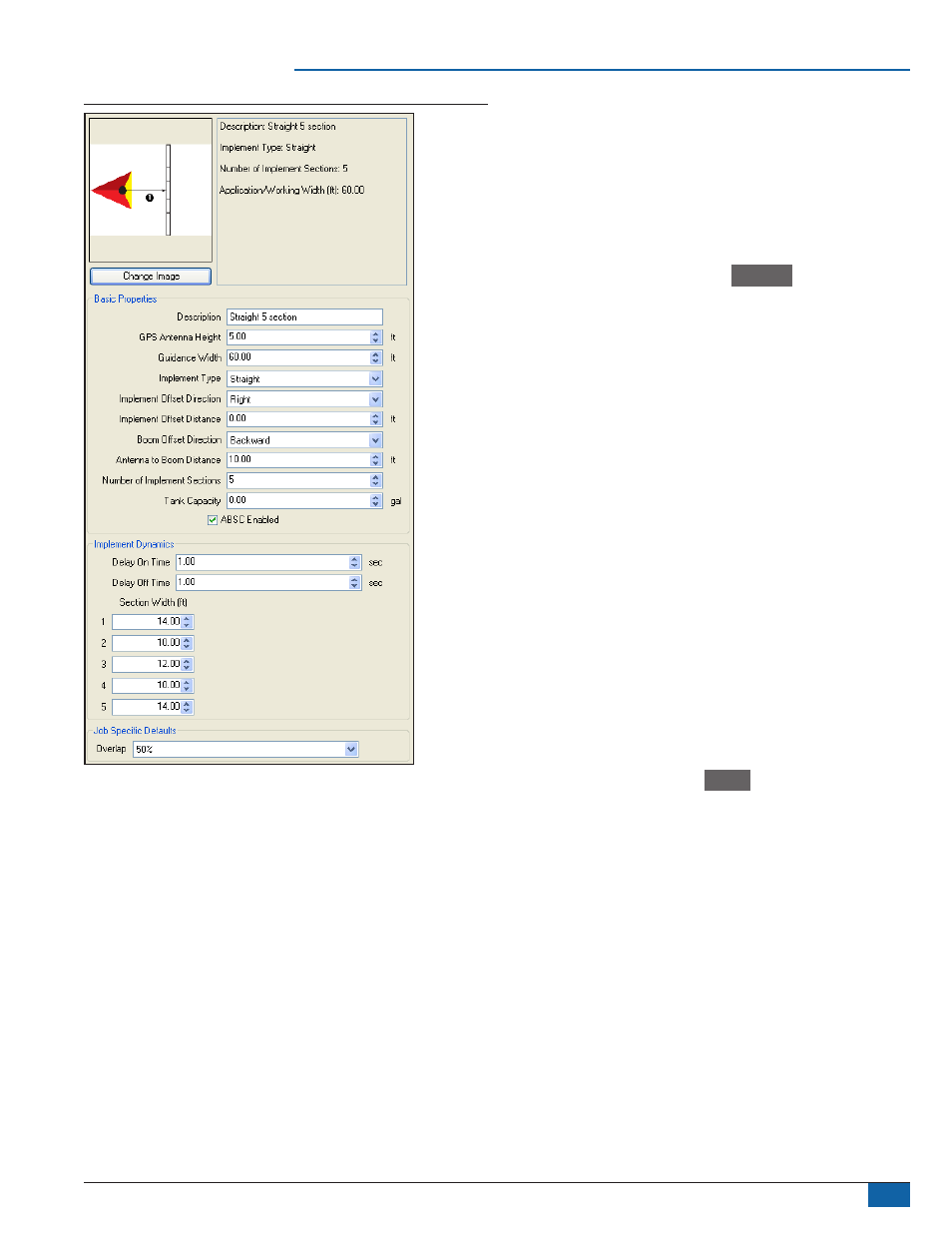

Figure 39: Machine Settings – Straight Implement Type
TeeJet Spreader Implement Type
NOTE: When loading this profile type onto a console without a
Smartcable or SDM on the system, only values for Section 1
will be used. All other section or ABSC information will be
retained in the background as unused parts of the profile.
Loading a spreader implement type onto a console that has not
had the spreader ABSC feature unlocked is not permitted.
The machine settings for multiple-section spreader applications
are machine dependent. Please consult with the spreader
manufacturer, and not TeeJet, for these machine specific
settings.
Basic Properties
►Description – used to enter the name of the Machine Settings
profile.
►GPS Antenna Height – used to measure the height of the
antenna from the ground. Range is 0.0 to 32.81 feet /
0.0 to 10.0 meters.
►Guidance Width – used to enter the distance between the
guidelines. Range is 3.28 to 246.06 feet / 1.0 to 75.0 meters.
►Implement Type – used to select Spreader as the layout of the
sections for the applied product location.
►Implement Offset Direction  – direction from the centerline of
the machine to the center of the implement while facing in the
machine’s forward direction
►Implement Offset Distance  – used to enter the distance from
the centerline of the machine to the center of the implement.
Range is 0.0 to 32.81 feet / 0.0 to 10.0 meters.
►Antenna to Disks Distance  – used to enter the distance from
the GPS antenna to the delivery disks or dispersal mechanism.
Range is 0.0 to 164.04 feet / 0.0 to 50.0 meters.
►Number of Implement Sections – used to select the number
of implement sections. When ABSC Enabled is checked,
Smartcable and SDM options are available for editing.
►Tank Capacity – used to enter the capacity of the tank
►ABSC Enabled – used to enable ABSC (Automatic Boom
Section Control) options
• Unchecked – single section setup options will be available
(see “ABSC Enabled – Single Section Setup” section for
details)
• Checked – Smartcable or SDM setup options will be available
Implement Dynamics
►Setup Type – used to select
TeeJet
spreader type
►Delay On Time – used to set the time when each section will
switch on when entering an area that has not been applied. If the
application turns on too soon when entering an unapplied area,
decrease the delay on time. If the application turns on too late,
increase the delay on time. Range is 0 to 10 seconds.
►Delay Off Time – used to set the time when each section will
switch off when entering an area that has been applied. If the
application turns off too soon when entering an applied area,
decrease the delay off time. If the application turns off too late,
increase the delay off time. Range is 0 to 10 seconds.
►Spread Offset Distance  – used to enter the offset distance
from the disks, or dispersal mechanism, to where product initially
hits the ground on section 1. Range is 0.0 to 246.06 feet/
0.0 to 75.0 meters.
