TeeJet Spreader Implement Type
NOTE: Loading a spreader implement type onto a console that has not
had the spreader ABSC feature unlocked is not permitted.
Basic properties
►Description – used to enter the name of the Machine Settings
profile.
►GPS Antenna Height – used to measure the height of the
antenna from the ground. Range is 0.0 to 32.81 feet / 0.0 to
10.0 meters.
►Guidance Width – used to enter the distance between the
guidelines. Range is 3.28 to 246.06 feet / 1.0 to 75.0 meters.
►Implement Type – used to select Spreader as the layout of the
sections for the applied product location.
►Implement Offset Direction  – direction from the centerline of
the machine to the center of the implement while facing in the
machine’s forward direction
►Implement Offset Distance  – used to enter the distance from
the centerline of the machine to the center of the implement.
Range is 0 to 32.8 feet / 0 to 10.0 meters.
►Antenna to Disks Distance  – used to enter the distance from
the GPS antenna to the delivery disks or dispersal mechanism.
Range is 0.0 to 164.04 feet / 0.0 to 50.0 meters.
►Number of Implement Sections – used to select the number
of implement sections. When ABSC Enabled is unchecked,
Number of Implement Sections is set to one implement section
and is unavailable for editing.
►Tank Capacity – used to enter the capacity of the tank
►ABSC Enabled – used to enable ABSC (Automatic Boom
Section Control) options
• Unchecked – single section setup options will be available
• Checked – Smartcable or SDM setup options will be available
(see “ABSC Enabled – Smartcable or Section Driver Module
Setup” section for details)
Implement Dynamics
►Setup Type – used to select
TeeJet
spreader type
►Spread Offset Distance  – used to enter the offset distance
from the disks, or dispersal mechanism, to where product initially
hits the ground. Range is 0.0 to 246.06 feet / 0.0 to 75.0 meters.
►Section Width (under Working Width in Matrix Pro GS v3.xx) –
used to enter the total width of the implement.
►Spread Length  – used to enter the length of application for
the section. Range is 0.0 to 246.06 feet / 0.0 to 75.0 meters.
Job Specific Defaults
There are no available options.

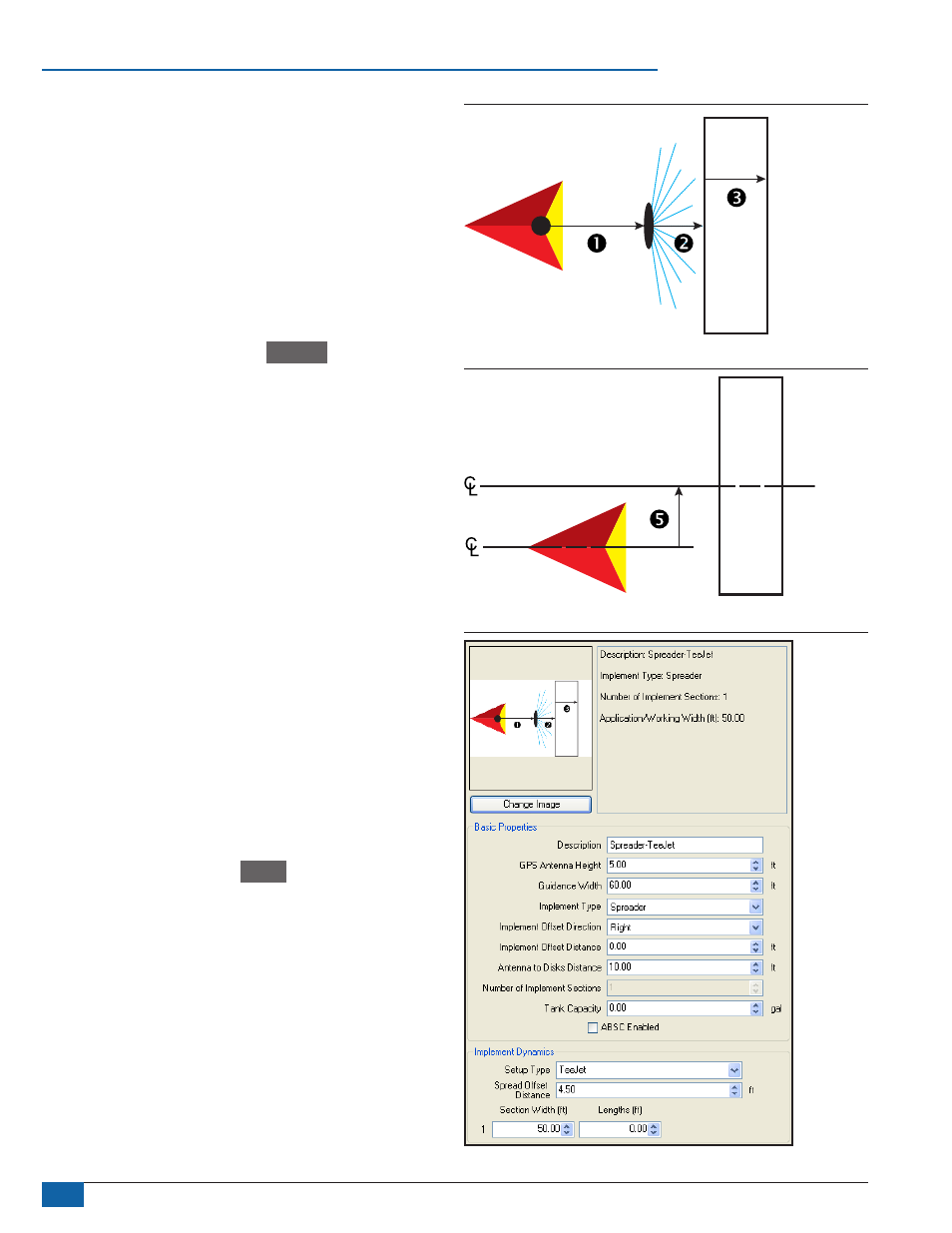

Figure 31: Basic Properties
Figure 32: Implement Offset Distance and Direction
Figure 33: Machine Settings – TeeJet Spreader Implement Type
