UniPilot
®
installation
If there are questions concerning the installation of the UniPilot system on a vehicle, or due to the changes in component specifications
the parts supplied in the kit are not as presented in this document, please contact your dealer or TeeJet Customer service
representative for clarification before installation. TeeJet Technologies is not responsible for misuse or incorrect installation of the
system.
NOTE: BE VERY CAREFUL TO ABSOLUTELY SECURE ALL CABLES SO THAT THEY DON’T INTERFERE WITH THE MANY MOVING PARTS
OF THE UNIPILOT!
Overview of the Assembly
• The UniPilot will mount on the steering column of the machine.
• Installation of the mounting bracket does not require removing the steering wheel from the vehicle.
• Installation of the UniPilot does not prohibit movement of the steering wheel or a telescoping steering column.

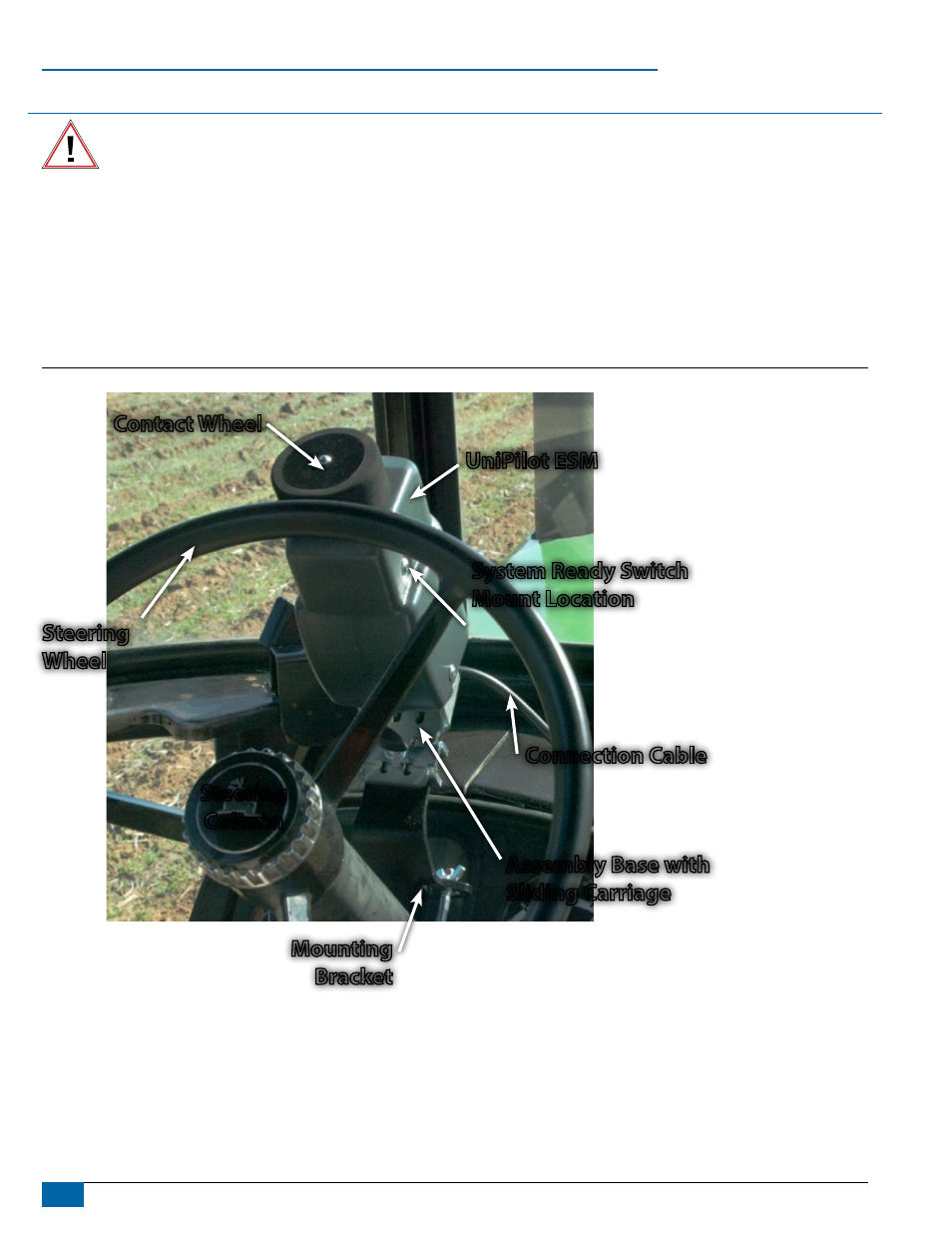

Figure 1-2: Overview of the Machine
Contact Wheel
system Ready switch
Mount location
assembly Base with
sliding Carriage
Connection Cable
steering
Wheel
steering
Column
UniPilot EsM
Mounting
Bracket
