General recommended electronics installation, Unipilot – TeeJet UniPilot User Manual
Page 13
11
98-05226-ENUS R4
UniPilot
®
General Recommended Electronics installation
The Steering Control Module (SCM) must be mounted securely flat to the floor of the cab with the arrow facing forward. The control console can
be mounted to the operator’s preference. The GPS antenna should be mounted as far forward as possible on top of the cab or hood (depending
on vehicle) on a metal surface of at least 4 in. / 10 cm square.

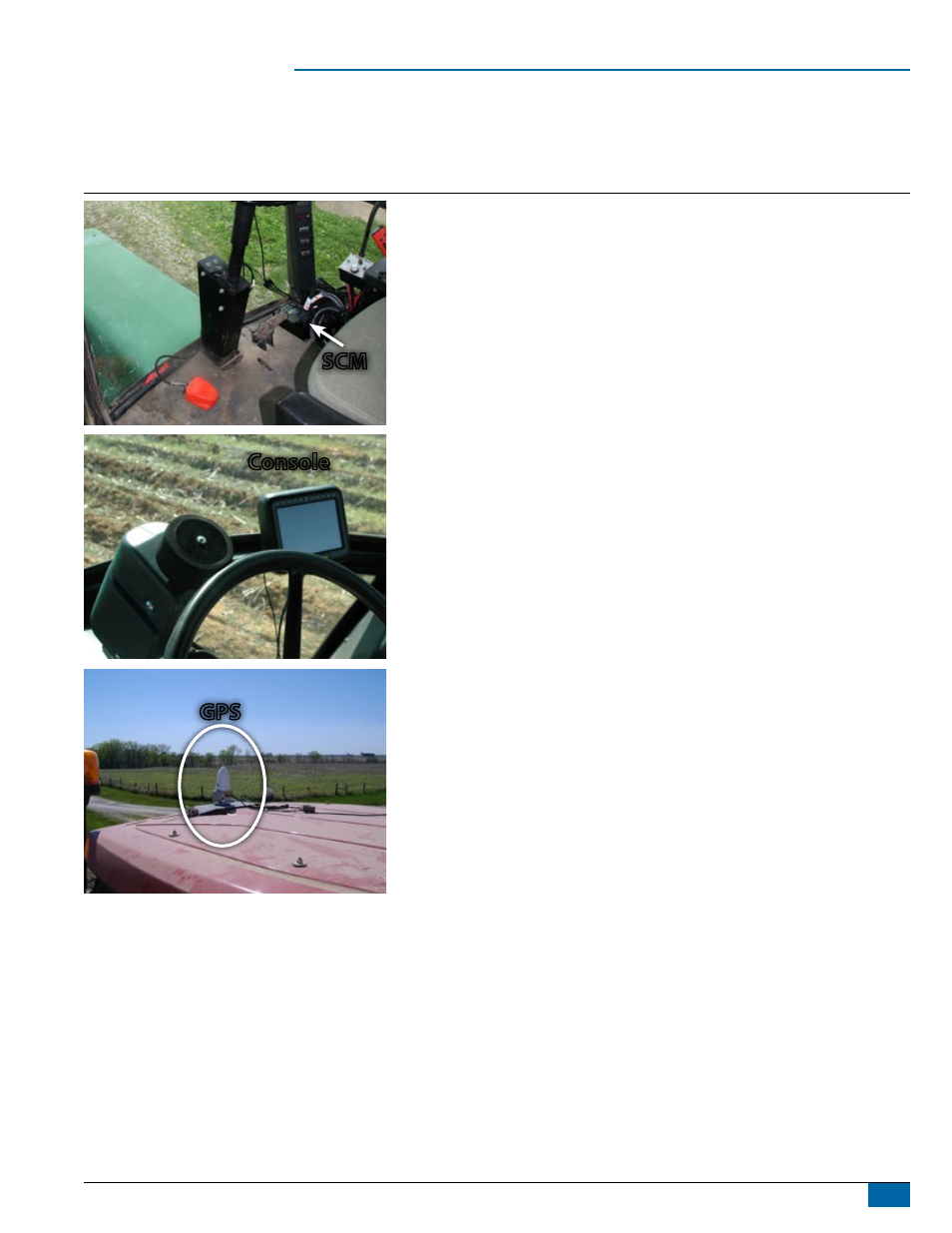

Figure 1-14: Recommended Electronics Installation
sCM
Console
GPs
