UniPilot
®
UniPilot EsM

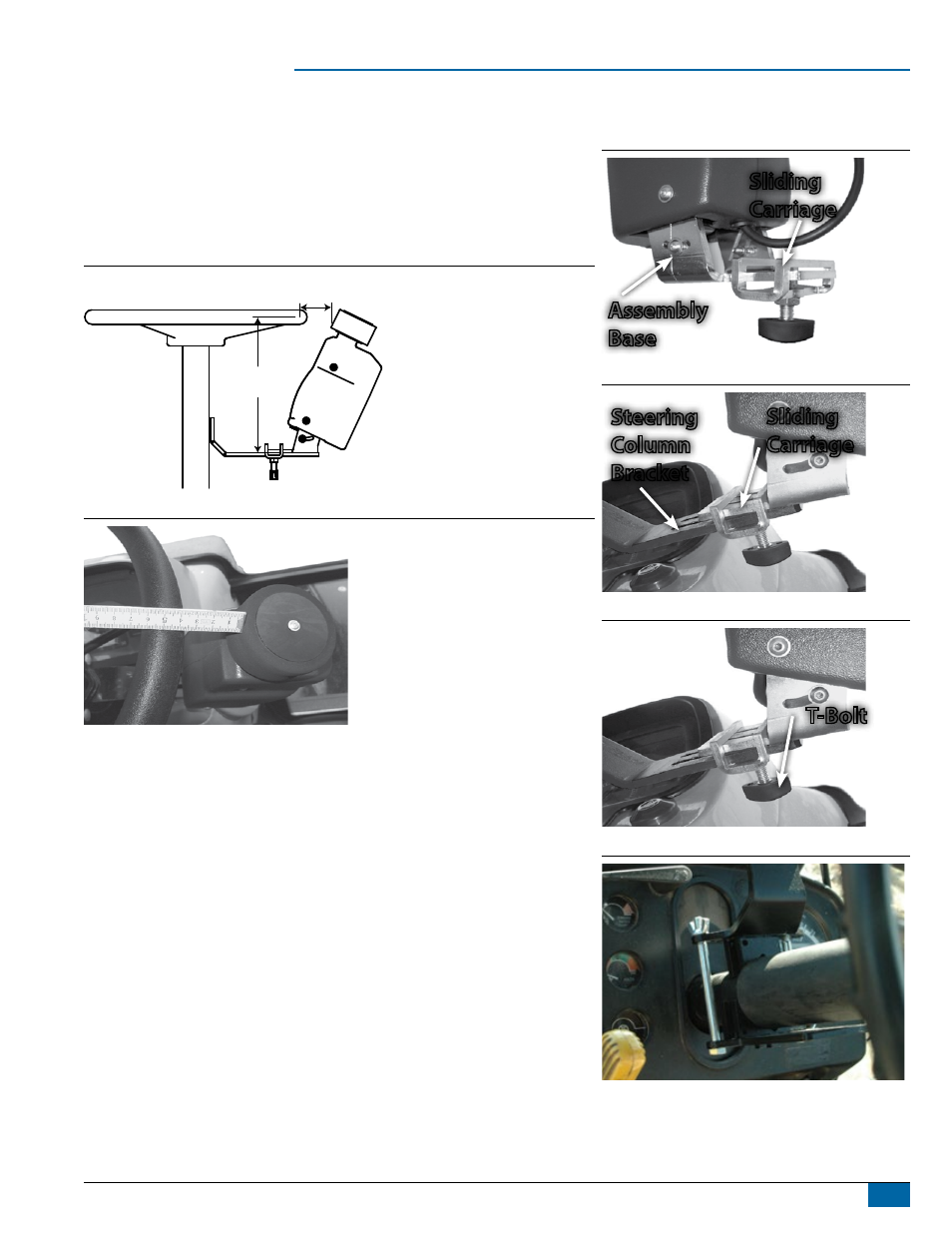

Assemble UniPilot ESM
Figure 1-4: Insert UniPilot ESM Into Sliding Carriage
sliding
Carriage
assembly
Base
Figure 1-5: Slip UniPilot ESM Onto Mounting Bracket
sliding
Carriage
steering
Column
Bracket
Figure 1-6: Tighten Sliding Carriage
t-Bolt
Figure 1-7: Secure the Mounting Bracket
1. Slip the sliding carriage onto the assembly base.
2. Slip the steering column bracket between assembly base and sliding carriage.
3. With the UniPilot ESM in the standby position (see page 12), position the UniPilot ESM
a distance of 1.6 in. / 40 mm from the steering wheel.
4. Tighten the sliding carriage black T-bolt.
Figure 1-8: Positioning of UniPilot ESM
1.6"
40 mm
9.25"
235 mm
Figure 1-9: Positioning of UniPilot ESM
Disassemble UniPilot ESM
The disassembly of the steering motor UniPilot ESM happens in the reverse order of the
assembly.
Secure the Mounting Bracket
Firmly tighten u-bolts, metal strap or other attachment device to the steering column to
make sure that bracket(s) does not move when the steering wheel is rotated.
Make sure steering wheel freely rotates when the UniPilot ESM is in the operating position
(see page 12).
HINT: Mark the ideal position of the UniPilot ESM on the steering wheel bracket to make
the next vehicle change easier.
