TeeJet UniPilot - Manual (Page 5)

3
98-05226-ENUS R4
UniPilot
®

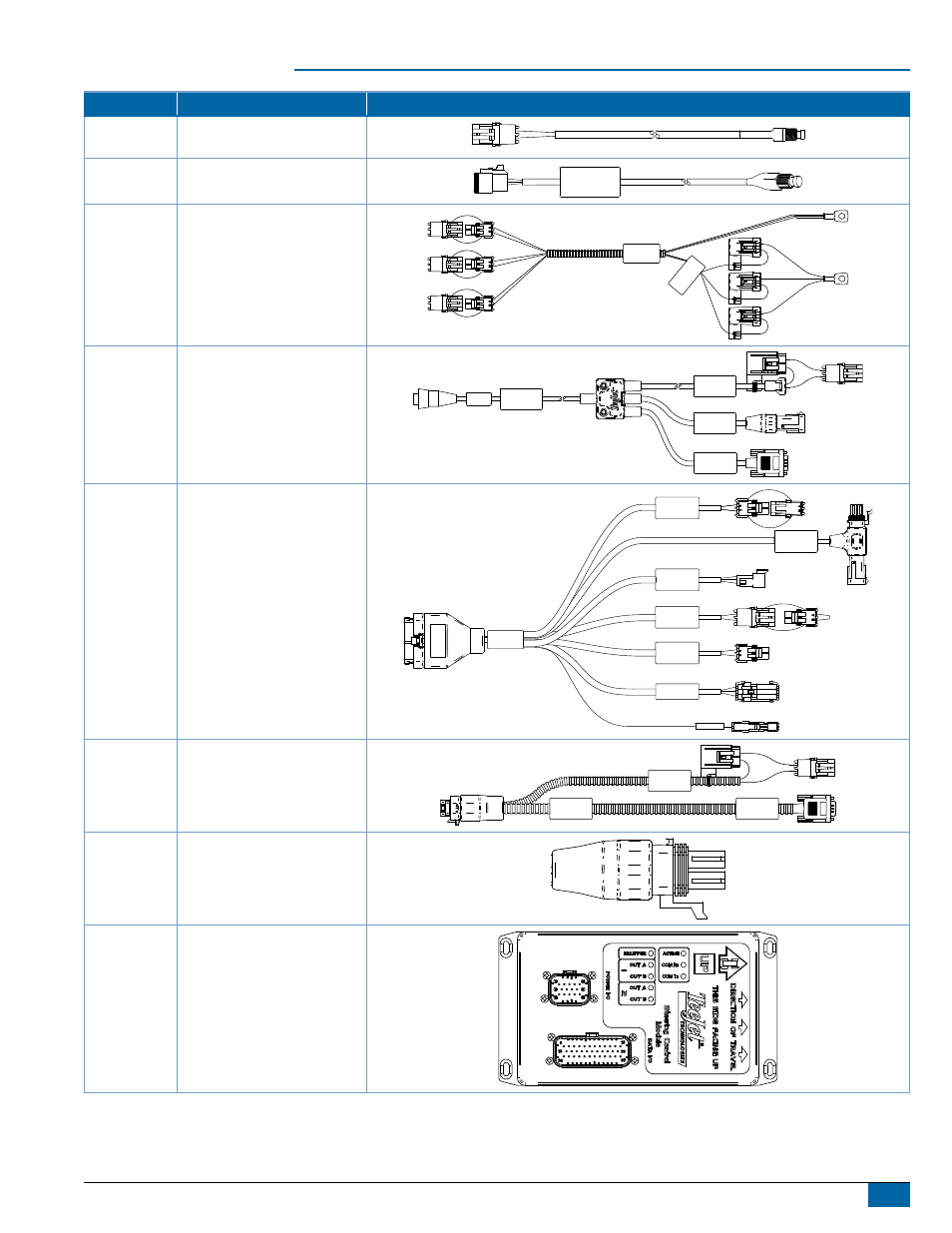

Part # Description Illustration
32-04040 Switch, Engage/Disengage
FieldPilot
32-04057 Switch, System Ready,
UniPilot
32-04057
System Ready
Switch
45-05381 Cable, 3 Pos. Battery 12'/3.66
m w/15 Amp Fuses
45-05381
DC: xx/xx
Co
nn
ec
to
to
(+
12
v)
45-05626 Cable, Power/CAN/RS232
Adapter to Conxall 8pg
POWER IN
CAN
RS-232
Power/DATA
45-05626
45-07718 Harness, SCM Short
CAN
Seat Sensor
Steering
Wheel Sense
GPS Power
COM Ports
Remote
Engage/Disengage
Fault
SCM Short
Harness
45-07718
DC: xx/xx
45-07727 Cable, SCM to UniPilot ESM
Power
SCM Power I/O
45-07727
DC: xx/xx
Steering
Actuator
45-08101 Terminator, CAN Male, WP as
Shipped
78-08075 Steering Control Module
(SCM), Pro
