GUidANCE MOdES
Guidance Modes include: Straight AB , Curved AB , Circle Pivot , Last Pass and NextRow as well as the Next
Guideline options: Next Straight AB , Next Curved AB and Next Circle Pivot .
Straight ab Guidance
Straight AB guidance provides straight line guidance based on A and
B reference points. The original A and B points are used to calculate
all other parallel guidelines.
NOTE: Offset to adjacent guidelines will be calculated using the
guidance width, which is encoded in Unit Setup in the
Implement menu.
1. Press NAVIGATION AND GUIDANCE OPTIONS icon to
display navigation options.
2. Press GUIDANCE MODE icon .
3. Select STRAIGHT AB GUIDANCE icon
.
◄Status Bar Icon will change to

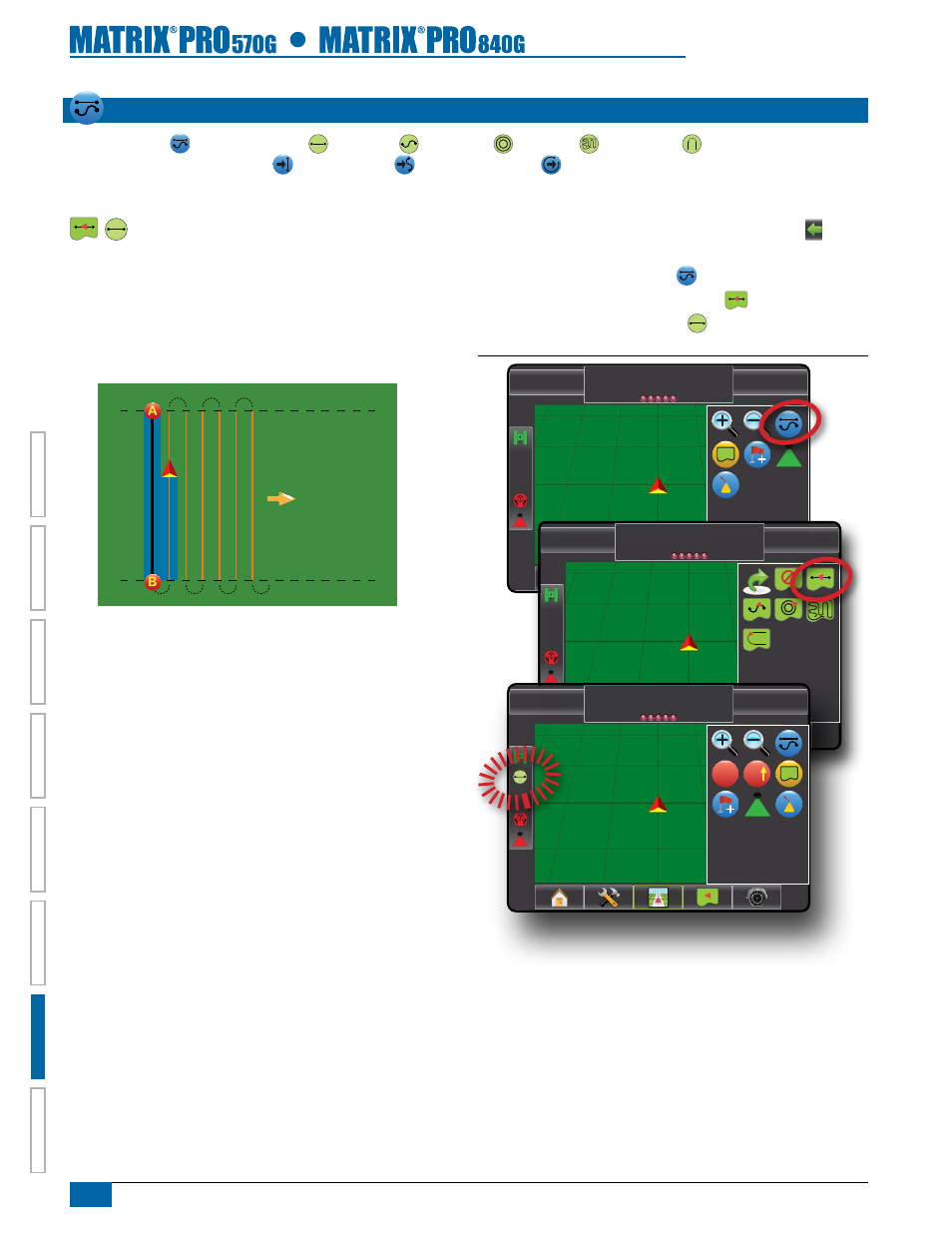

Figure 7-16: Straight AB Guidance
0.0 mph 0.00 ac
0.0 mph 0.00 ac
0.0 mph 0.00 ac
Mark A
A A
