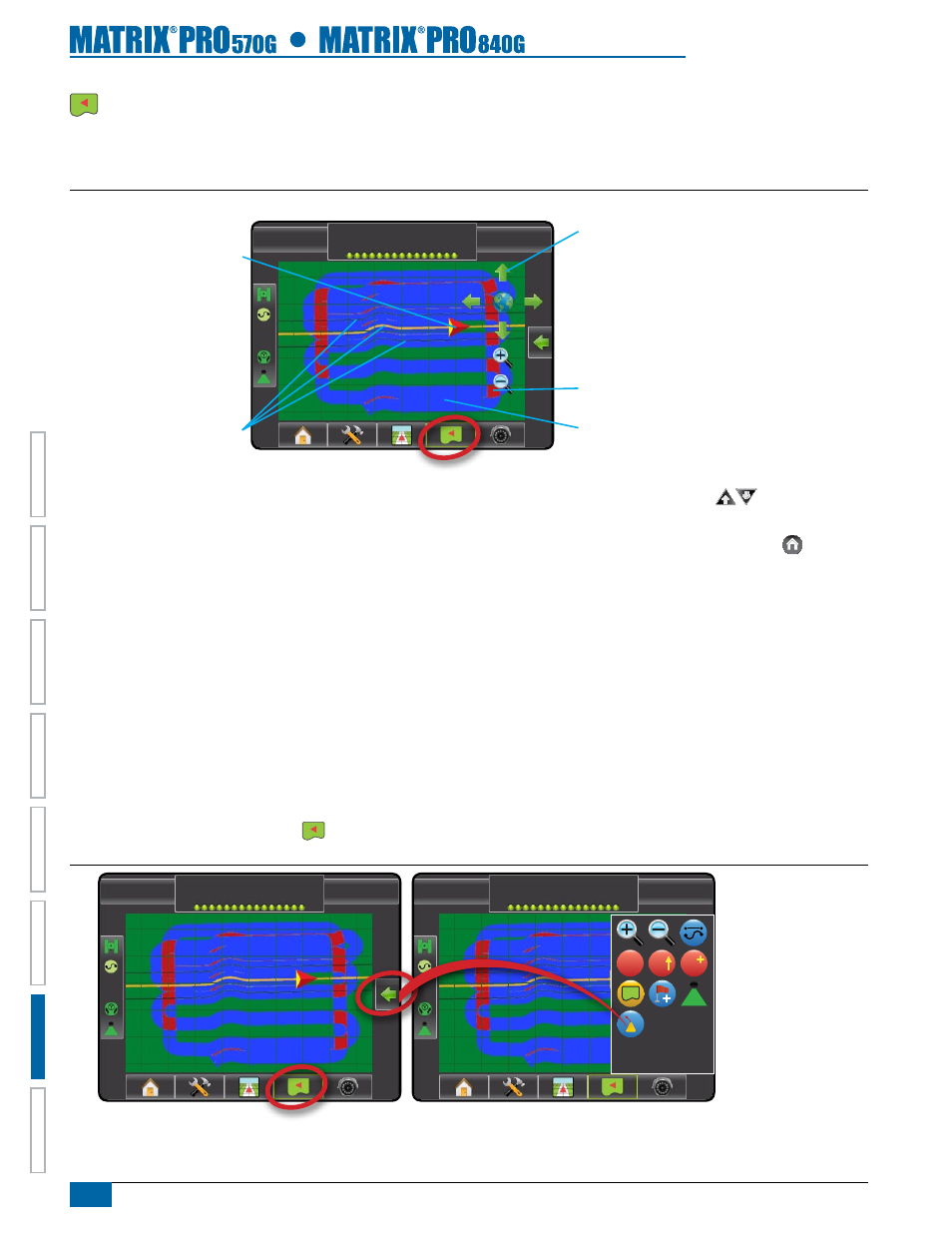

Field view
Field View creates a computer-generated image of the vehicle position and application area from an aerial perspective. From this screen one
can access options for boundary areas and a marked point or enter World View and Pan modes.
Figure 7-12: Field View
-13 7.2 mph
Mark A
Overlap Coverage Area
Status Bar
Pan Mode Option
Guidance Bar
Painted Coverage Area
Navigation Guidelines
Vehicle Representation
Navigation and Guidance options
On Screen Guidance
• Guidelines
►Orange – active guidance line
►Black – boundary line
• Points – markers for established points
►Red Point – Return to Point
►Blue Point – Mark A
►Green Point – Mark B
• Coverage Area – illustrates applied area and overlap:
►Blue – one application
►Red – two or more applications
• Pan – adjust the map’s visible area without moving the vehicle.
• Zoom In/Out – adjust the map’s visible area.
Matrix Pro 840G Console Button Assistance
• Zoom In/Out – the Up/Down Buttons adjust the map’s
visible area.
• Home/Job Screen – the Home/ the Home button accesses
the Home/Job screen.
To access the Field View screen:
1. Press FIELD VIEW GUIDANCE icon .
Figure 7-13: Field View w/ Common Icons Shown
0.0 mph 0 ac
Mark A
0.0 mph 0 ac
Mark A
A A A
